The Victorian Railways H class was an express passenger steam locomotive operated by the Victorian Railways from 1941 to 1958. Intended to eliminate the use of double heading A2 class locomotives on The Overland services on the steeply graded Western line to Adelaide, wartime restrictions led to only one locomotive being built. Nicknamed Heavy Harry or Healthy Hilda, H220 was the largest locomotive ever built in Australia and the largest non-articulated steam locomotive to run on Australian railways.

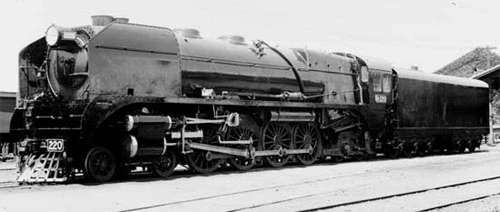

H220-Newport

H 220.

History[]

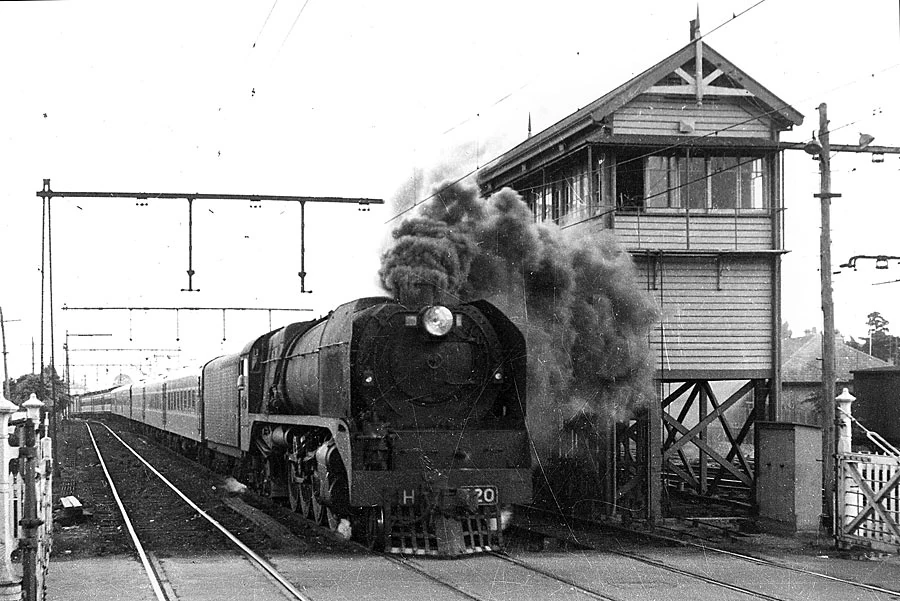

H220-Essendon

H 220 blasts past the signal tower at Essendon, Melbourne.

By 1923, the A2 class 4-6-0 locomotives, which dated back to 1907, were frequently double-heading on interstate expresses to Serviceton and Albury, because increasing traffic saw loads exceed the eight-car maximum of a single A2. The Victorian Railways Commissioners recommended considerably more powerful locomotives, that could haul trains of up to eleven cars unassisted over the ruling gradients on those lines. The S class 4-6-2 Pacifics displaced the A2s from North East line express services from 1928 onwards and allowed a faster timetable to be introduced. However, a Pacific-type locomotive was not well suited to the Western line. The section between Melbourne and Ballarat had sharply-curved, steep inclines, the most notorious of which was the 10-mile (16 km), 1 in 48 (2.08%) ruling gradient of the Ingliston Bank. As early as 1923, VR locomotive designers were considering 4-8-2 Mountain-type locomotives for the purpose, along with the use of a third cylinder to provide increased power without exceeding the loading gauge.

Design Brief[]

In 1936, the Victorian Railways Design Office finalized the major design requirements for a steam locomotive that was capable of hauling a load of 550 long tons (560 t; 620 short tons) at a minimum 20 miles per hour (32 km/h) up the Ingliston Bank unassisted. In order to develop the power required, a very large grate and a very large boiler were needed, and the 4-8-4 wheel arrangement enabled that, because its four-wheeled trailing truck could support a large firebox, and four coupled axles would support a large boiler and ensure a good factor of adhesion.

VR designers wanted to improve on aspects of the earlier S class design. Those three-cylinder Pacifics, although capable of hauling heavy loads at high speed, had proved to be relatively maintenance-intensive, particularly with regard to servicing the valve gear and motion for the third (inside) cylinder. The Gresley conjugated valve gear, driven from the valve spindles of the outside cylinder piston valves, was prone to heat expansion and wear, causing timing difficulties, and it required dismantling and removal whenever the centre cylinder valve needed to be serviced.

To overcome those problems, the Victorian Railways chose a different arrangement for its third cylinder. The German Henschel & Son rocker shaft conjugated valve gear apparatus, driven from the back ends of the outside valve spindles. The inside cylinder was positioned far enough forward to enable it to drive the leading coupled axle, the outside cylinders driving the second coupled axle.

The H class also became the first VR locomotive to feature a mechanical stoker, and boasted many other modern features, such as roller bearings, hydrostatically-controlled load compensating brake gear on the tender, power-operated reversing gear, American-style bar frame construction, thermic siphons, and duplex blast pipes.

Production[]

Construction of three H class locomotives at Newport Workshops commenced in 1939 and three sets of frames were manufactured. However, work was halted due to the outbreak of World War II. A shortage of motive power, caused by increased wartime traffic, led to the completion of class leader H220 being authorized and the locomotive entered service on 7 February 1941. A streamlined shroud, similar to that on the S class locomotives, was originally planned, but the wartime economy caused its abandonment.

The two partly-built, H class locomotives remained incomplete while wartime production of armaments (and later postwar rebuilding of badly run-down infrastructure) took precedence over express passenger locomotive construction. They were never completed, and the parts were subsequently scrapped.

Service Life[]

Although it had been built to work the Western line to Ararat, a number of bridges along the route required strengthening before the H class locomotive, with its 23+1⁄4 long tons (23.6 t; 26.0 short tons) axle load, could enter regular service on the line. The necessary work was deferred due to wartime restrictions on available resources. Therefore, H220 was put to work on the North-Eastern line to Albury, the only line able to accommodate its loading gauge and high axle load. It mostly hauled fast goods services, but it also powered express passenger services, troop trains and, on the odd occasion when the regular S class Pacific was not available, the Spirit of Progress. That was particularly the case in the postwar period, when S class locomotives were affected by poor coal and reduced availability. H220 gave an indication of its capabilities on one such run of the Spirit in the late 1940s, when it reportedly topped the 5-mile (8 km)-long 1 in 50 Glenroy Bank at 45 mph (72 km/h), three times the typical S class-hauled speed at that same point. It went on to pass Seymour 13 minutes ahead of schedule, and arrived at Albury at 20 minutes ahead of the 10:40 pm scheduled arrival time.

H220 never operated in its intended role as motive power for The Overland, although it did make a brief appearance on the Western line in 1949, when it ran a series of trials on goods trains from Melbourne to Ballarat, being assessed by the VR dynamometer car. Results from the dynamometer car showed that the locomotive developed around 3,300 drawbar horsepower (2,460 kW) at 47.5 mph (76 km/h), and a starting drawbar tractive effort of 52,000 lbf (230 kN). The Australian Railway Historical Society, in listing the introduction of H220 among its "100 defining aspects of Australian railways", noted that test results as high as 3,600 horsepower (2,680 kW) at 50 mph (80 km/h) were recorded, a power output unequaled in Australia during the steam era, and only equaled in the modern era by the National Rail NR class diesel-electric locomotives.

Although intended for express passenger use, H220 was found to be particularly effective when used as a fast goods locomotive. It typically hauled five return trips a week between Melbourne and Wodonga, covering around 1,875 miles (3,017 km) per week, and hauling loads of up to 820 tons (833 t) over the 1 in 50 gradients on that line. By comparison, the maximum loads between Wodonga and Melbourne of the C class 2-8-0 and X class 2-8-2 heavy goods locomotives were 555 and 650 tons respectively. H220 was also able to complete the journey in a much shorter time, with its large tender requiring only a single stop for water, rather than the two stops for water and coal that the other locomotives required. Even after the introduction of mainline diesel-electric traction from 1952 onward, Victorian Railways' promotional literature featured H220 prominently. One advertisement in Walkabout in November 1953, headed "Trains we are proud of", promoted H220 as "Australia's mightiest engine" and noted its nightly service hauling the 21:25 Albury Interstate Fast Freight.

From all accounts, H220 was a success, even though it spent its life hauling services and operating on a line it was not specifically designed for. Although one-off locomotives are often consigned to a short operating life, or underutilized due to non-standardization of parts and maintenance requirements, H220 remained in service until finally being superseded by diesel electric locomotives in the late 1950s. In a service life of 15 years 3 months, it clocked up a total of 821,860 miles (1,322,660 km), averaging over 4,800 miles per month.

Demise[]

Even after the war, upgrades on the line to Ararat necessary for H class operation were not made, as the VR struggled with a backlog of maintenance work which had built up during the 1940s. When the VR finally embarked on major capital investment in the early 1950s, diesel and electric traction was under consideration. Although diesel locomotives of the early 1950s typically had far lower power outputs than the H class, they could be run in multiple-unit operation, with one crew controlling two or more locomotives. In August 1952, two new B class diesel-electric locomotives established their credentials during trials by hauling a 1,121 long tons (1,139 t; 1,256 short tons) goods train up the Ingliston Bank, and covering in 44 minutes the same distance two A2 class locomotives took to haul a 690-long-ton (700 t; 770-short-ton) load in 67 minutes. The B class locomotives proved their ability to provide the same (if not better) performance as the H class, but without the heavy axle load or the need for upgraded infrastructure. They became the new motive power for not only The Overland, but also mainline goods services. The days of mainline steam locomotives were numbered.

H220 continued in service until it was withdrawn for an overhaul on 20 May 1956. By that time, the C and X class heavy goods locomotives were being progressively withdrawn from service and scrapped, having been made redundant by B class diesel-electric and L class electric locomotives. H220 was stored rather than overhauled, and never returned to service. It was written off the VR locomotive register on 30 April 1958.

Preservation[]

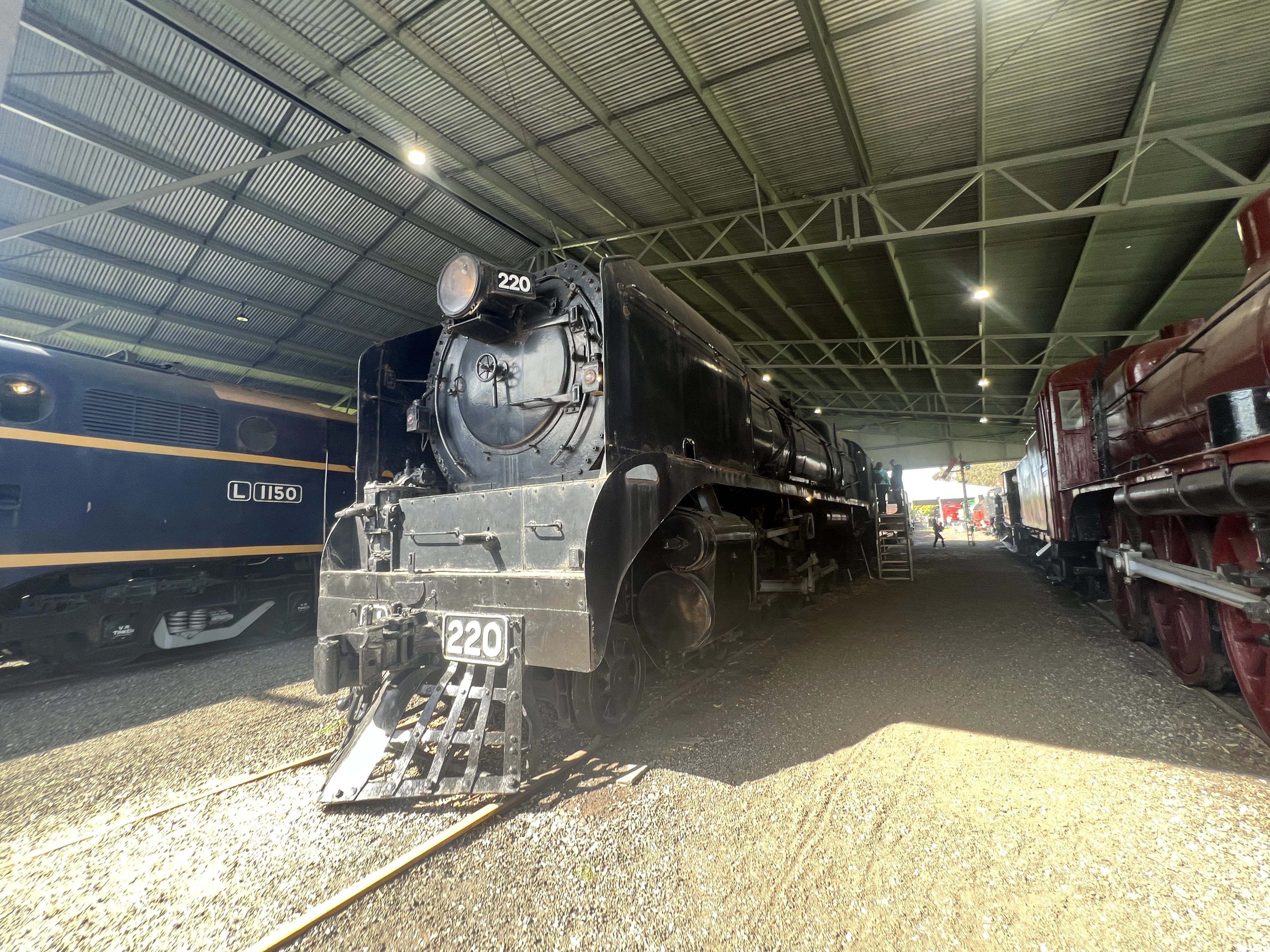

Heavy Harry

H220 'Heavy Harry' on display at Newport Railway Museum on September 2nd, 2023. (Photo by Alzaar Ahmed)

H220 survived more-or-less intact until 1960, when the Australian Railway Historical Society successfully lobbied for the establishment of a railway museum. H220 entered the museum in 1962, and since this date has been its star exhibit.

In April 2008, 50 years after its official withdrawal from service, H220 was added to the Victorian Heritage Register. Heritage Council chairman Chris Gallagher noted that H220 represented the peak of steam motive power technology in Victoria and warranted the state's highest level of heritage protection. In October 2020, a new roof, announced by local MP Melissa Horne in May 2019, was built over H220 and neighboring exhibits to protect them from the weather.

It is believed that H220 is the world's only remaining example of a three-cylinder 4-8-4 tender engine.

Specifications[]

The H class weighs 264.2 tonnes, and has an axle load of 23.6 tonnes. The boiler has a maximum pressure of 220 psi, and the locomotive can make 55,000 lbf of tractive effort; the locomotive can produce 3,300 draw-bar horsepower. The firebox possesses a grate area of 68 square feet (6.3 m^2), the largest grate area of any locomotive in Australia and is fed by a mechanical stoker. The 3 cylinders are 21½ inches (546 mm) in bore and 28 inches (711 mm) in stroke. The driving wheels are 67 inches (1,7 metres) diameter.

The tender can carry 9 tons of coal and 14,000 gallons (63,600 litres) of water. Thier mechanical stokers are capable of feeding their fireboxes up to 10,000 lbs (4536 kg) of coal per hour (since the R Class were capable of this, it is likely the H was fitted with something similar)

Model railways[]

HO Scale[]

A number of manufacturers have produced brass models of the H class:

Alco produced multiple runs of the model in the 1980s (as it was then preserved in the museum);

Trainbuilder recently released two variants, for 1941-1950 and 1950-1958.

Trivia[]

  • H 220 is thought to be the world's only surviving three cylinder 4-8-4.
  • H 220 was the first Victorian Railways locomotive to have a mechanical-stoker. They also featured several other modern features such as roller bearings, hydrostatically controlled load compensating brake gear, American style bar frame construction, power operated reversing gear, thermic siphons and duplex blast pipes
  • H 220 was the largest steam locomotive ever built in Australia, and the largest non-articulated steam locomotive to run on Australian railways. (the largest engines to operate in Australia were the NSWGR AD60 Class 4-8-4+4-8-4 Garratt locomotives, which were built in the UK)
  • H220 was built with intentions to improvement on the maintenance intensive S Class 4-6-2 Pacifics of 1928, with use of a German Henschel und Sohn conjugated valve gear over the Gresley conjugated valve gear of the S Class
  • During test runs to Ararat it recorded power outputs of 3300 horsepower at 47.5 mph and 3600 horsepower at 50 mph, power outputs rivalled (or even surpassed) in Australia only by the modern NR Class diesel locomotives
  • Despite the introduction of the R Class 4-6-4 and J Class 2-8-0 locomotives in 1951 and 1954, the H Class is regarded as the ultimate VR steam locomotive design
  • H 220 was also given the nickname "Healthy Hilda" when originally built.
