USRA Light Santa Fe

USRA Light Santa Fe
Technical specifications
Manufacturer(s)	American Locomotive Company, Baldwin Locomotive Works
Build date	1918-1919
Total produced	94
Rail gauge	4 ft 8+1⁄2 in (1,435 mm) standard gauge
Valve gear	Southern (see drawing)
Cylinders	Two
Boiler pressure	200 psi (1.38 MPa)
Bore stroke	27 in × 32 in (686 mm × 813 mm)
Firegrate area	76.3 sq ft (7.09 m2)
Fuel type	Soft coal (bituminous)
Heating area	1,085 sq ft (100.8 m2)
Performance figures
Tractive effort	69,600 lbf (309.6 kN)
Factor of adhesion	3.95
Disposition details
Preserved	One was preserved
Disposition	One preserved, remainder scrapped

File:USRA Light Santa Fe diagram.jpg

General arrangement drawing

The USRA Light Santa Fe was a USRA standard class of steam locomotive designed under the control of the United States Railroad Administration, the nationalized railroad system in the United States during World War I. These locomotives were of 2-10-2 wheel arrangement in the Whyte notation, or 1′E1′ in UIC classification; this arrangement was commonly named "Santa Fe" in the United States. At the time, the Santa Fe was the largest non-articulated type in common use, primarily in slow drag freight duty in ore or coal service.

A total of 94 of these locomotives were constructed under the auspices of the USRA. They went to the following railroads:

Table of original USRA allocation

Railroad	Quantity	Class	Road numbers	Notes

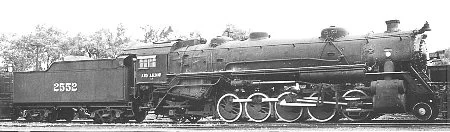

Ann Arbor Railroad	4	L	190–193	Built in 1919 by Baldwin(Renumbered 2550–2553, reclassified L2, Sold to Kansas City Southern Railway #220–223, September 1942.KCS class L-1) All scrapped between 1945-1957.
Chicago and Western Indiana Railroad	5		20-24	Built 1918 by ALCO. All scrapped between 1950-1955.
Duluth, Missabe and Northern Railway	10	E-1	506–515	Built 1919 by Brooks Works (to Duluth, Missabe and Iron Range Railroad same numbers) Scrapped between 1952-1954. One example preserved.
New York Central Railroad subsidiary Boston and Albany Railroad	10	Z-1	1100–1109	Built 1919 by ALCO-Brooks (to Canadian National Railway #4200–4209 class T-3-a in 1928.) All scrapped between 1955-1961.
Seaboard Air Line Railroad	15	B-1	485–499	Built 1919 by Baldwin (renumbered 2485–2499) All scrapped between 1950-1953.
Southern Railway	50	Ss-1	5200–5249	Built 1918 by ALCO. All scrapped between 1949 - 1952.
Total	94

Only one USRA Light 2-10-2 survives: DM&IR No. 506 is on display at the National Railroad Museum in Green Bay, Wisconsin
