Toden 800 series

Toden 800 series

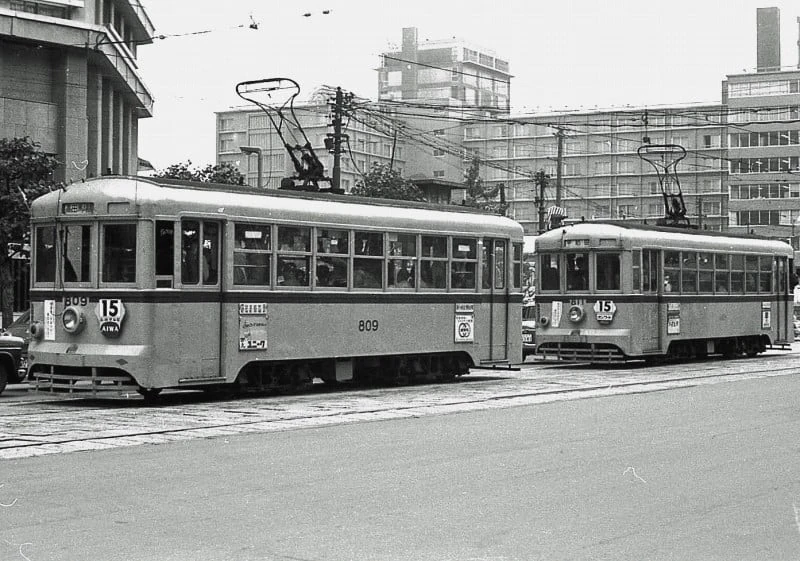

809 and 811 in the 1960s
Technical specifications
Manufacturer(s)	Kinami Sharyō, Nippon Tetsudō Jidōsha
Type of locomotive	Light rail vehicle
Constructed	1947 – 1948
Number built	40 cars
Dimensions	10,600 mm × 2,300 mm × 3,400 mm
Gauge	4 ft 6 in (1,372 mm)
Power supply	600 V DC
Electric system(s)	Bow collector
Traction system	Resistor control
Traction system model	Mitsubishi KR-208 Mitsubishi KR-8
Service information
In service	1 September 1947 – January 1968
Formation	Single car
Number in service	None
Fleet numbers	801 – 840
Scrapped	1965, 1967 – 1968
Preservation information
Preserved	None
Number scrapped	40 cars

The Toden 800 series was a Japanese streetcar type operated by the Tokyo Metropolitan Bureau of Transportation (Toei) on the Tokyo Toden network from September 1947 to January 1968.

History

The 800 series was a series of streetcars manufactured for the Tokyo Toden network; the cars were essentially an improvement of the 700 series, with the cars being introduced as an "extension" to this series and to replace some of the 700 series cars destroyed during World War II. The cars entered service on 1 September 1947; 40 cars were manufactured in total.

The first three cars were manufactured with the numbers 713, 714 and 725 as they were viewed as an "extension" to the 700 series cars, but all following cars were given the 800 series classification and the three cars were renumbered accordingly to 801, 802 and 823. Mainly based at Waseda Depot, the 800 series cars were mainly used on Route 15. The abolition of a significant number of lines on the Toden network starting in the mid-1960s resulted in the withdrawals of many of Toden's streetcar types, with withdrawals commencing in August 1967; all cars were withdrawn by January 1968.

No 800 series cars have been preserved.

Design

The 800 series cars had a similar design to the 700 series cars.

Specifications

Construction was of steel. Electrical systems for the streetcars were manufactured by Mitsubishi.

Preservation

The following 800 series cars were preserved in the past but have since been scrapped:

Number	Manufacturer	Date manufactured	Date retired	Last location	Notes
809	Kinami Sharyō	1947	January 1968	Yokota Air Base, Tama, Tokyo, Japan	Used as playground; scrapped at unknown date
816
834		1948
