This article show the different steam locomotive classes the SNCF had had.
Numbering system[]
After the creation of the Société Nationale des Chemins de fer Français. It was important for the new Railway entity to adopt a numbering system that allow to identify locomotives and differenciate them easily.
In 1939, It had been decided to adopt the PLM numbering system for every French steam locomotives. However some modifications would be bring as It would have been inunfficient with numerous locomotives classes.
To understand the SNCF numbering system, It is important to know, that after the nationalization of the French Railways, the SNCF was divided in 5 regions, with their borders identical to the one of the former companies, for their biggest part. Each SNCF regions received a number to identidy It:
- (1) Eastern (ex-AL and Est combined);
- (2) Northern (ex-Nord);
- (3) Western (ex-État);
- (4) Southwestern (ex-PO-Midi);
- (5) Southeastern (ex-PLM).
A sixth region would be created in 1947, with the purpose to dicrease the Southwestern and Southeastern regions, which were too gigantic to operte them as regions. This sixth region, which received the no. 6, would be the Mediterranean Region. And would count in Its effectives, ex-PLM and Midi locomotives.
These numbers would be applied on the locomotives bufferbean to indicate the region of which they were owned. The pre-grouping SNCF steam locomotives were identified on the regional level. Two locomotives of different regions could have the same number and to avoid confusion, the region’s number is used to help to identified them.
The SNCF number for steam locomotives was separated in three distinct part:
- A three digital number which indicate the axle arrangement of the locomotive. For exemple a 4-6-2 Pacific would be a 2-3-1, or just 231 as It is written in France. An articulated locomotive would have two three digital numbers with a "+" between them. For exemple a 020+020, would
- A letter which identicate the class of the locomotive with a specific axle arrangement. The letter is attributed on a chronological logic. Exemple: the first class of Pacific locomotives would formed the class 231.A, the second coming chronologicaly would formed the class 231.B. Sometimes, locomotives from a class after receiving some modifications would formed a new class depending or many, depending of their modifications, they would received the following letter. The letters A to N, are used for the pre-grouping SNCF locomotives, the letters P to U, designated the SNCF standardized steam locomotives, the letter W for the British steam locomotives of the War Department, and the letter X to Z for the German steam locomotives captured during WWII. The letters I, O were not used to prevent confusion with the numbers 0 and 1, the letter T had a specific use as It indicated a tank locomotive. Exemple: 141.TA. And the letter V was not used because of Its resemblance with the letter U. When a locomotive moved to another region, It kept Its class letter, if It wasn’t used by another class. If the locomotive shared Its letter class with another class of locomotives, new letters were applied depending of hiw old the two class are. In rare cases, when two appeared the same year, they can share the same letter.
- A another number specific to each locomotives. In general the SNCF regios reused the three last number of the locomotive's previous number before nationalization, with the exception of the Northern Region would renumbered Its engines from no. 1.
Pre-grouping SNCF steam locomotives[]
Eastern Region (1)[]
Est[]
| Image | Power class | Former Est Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|---|
Tender locomotives[] | ||||||||
|

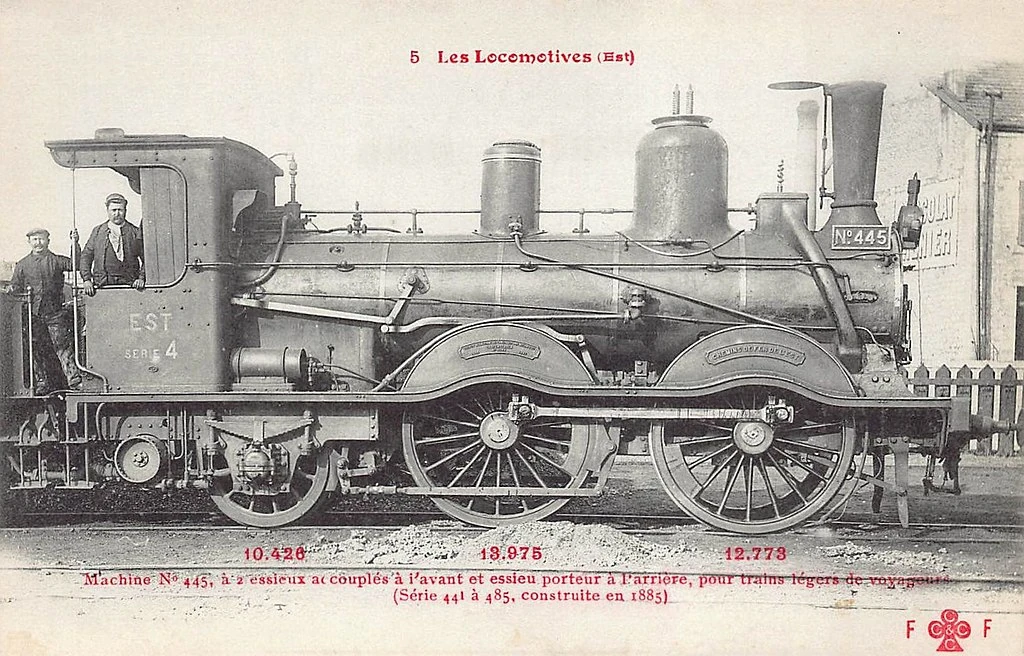

4 | 441 to 485 | 1-021.A.446, 452, 472, 474 and 478 | SACM at Belfort | --- | Est: 1885 SNCF: 1938 |
March 22nd 1945 | |
|
8v | 2401 to 2432 | 1-220.A.401 to 432 | Épernay Workshops | --- | Est: 1899 SNCF: 1938 |
1947 | |
|
8v | 2601 and 2602 | 1-221.A.601 and 602 | SACM at Belfort | --- | Est: 1902 SNCF: 1938 |
March 1945 | |
| 10 | 1002 to 1005 | 1-030.A.2,4 and 5 | Épernay Workshops | --- | Est: 1895 SNCF: 1938 |
1945 |
| |
|

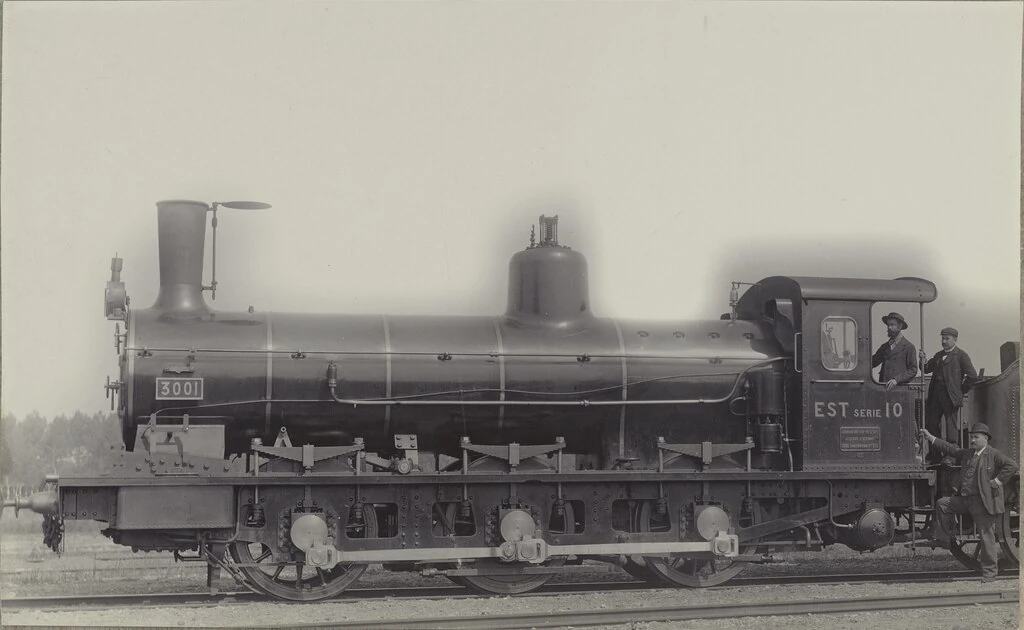

10 | 3001 to 3014 | 1-030.B.1 to 14 | Épernay Workshops | --- | Est: 1895 SNCF: 1938 |
1951 | |
|

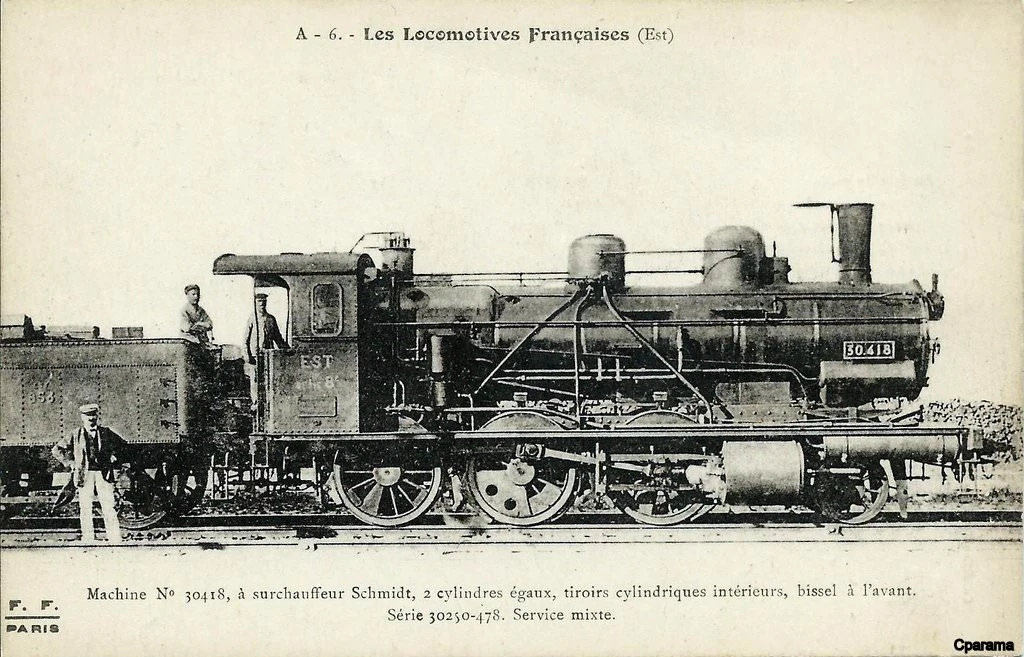

8c and 8cs | 30252 to 30428 | 1-130.A.252 to 428 | --- | Épernay Workshops | Est: 1905 SNCF: 1938 |
1957 |
|
|
8s | 30254 to 30489 and 30701 to 30766 |
1-130.B.254 to 489 and 701 to 766 |
--- | Épernay Workshops | Est: 1909 SNCF: 1938 |
1970 |
|
|
11 and 11s bis | 3401 to 3500 | 1-230.A.401 to 500 | Épernay Workshops | Épernay Workshops | Est: 1897 SNCF: 1938 |
1955 |
|
|

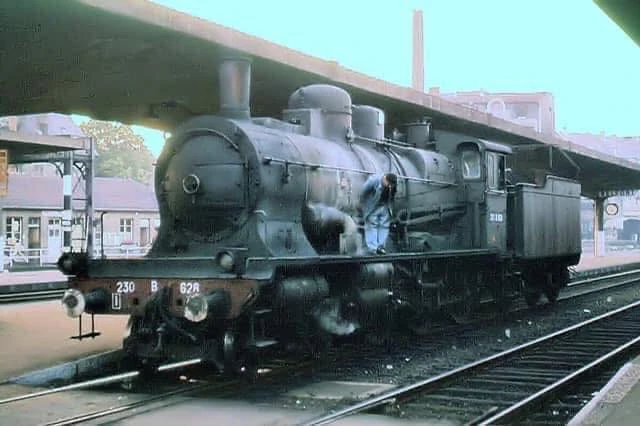

11, 11s and 11s bis | 3501 to 3890 | 1-230.B.501 to 890 | Maffei; Schneider; Épernay Workshops; SACM at Belfort; Société Franco-Belge; Hesnchel & Sohn; Batignolles; Fives Lille; Blanc Misseron. |
--- | Est: 1901 SNCF: 1938 |
1967 | |
| 11s | 3305 to 3307 | 1-230.E.305 and 306 | Hartmann | --- | Est: 1920 SNCF: 1938 |
1948 |
| |
|

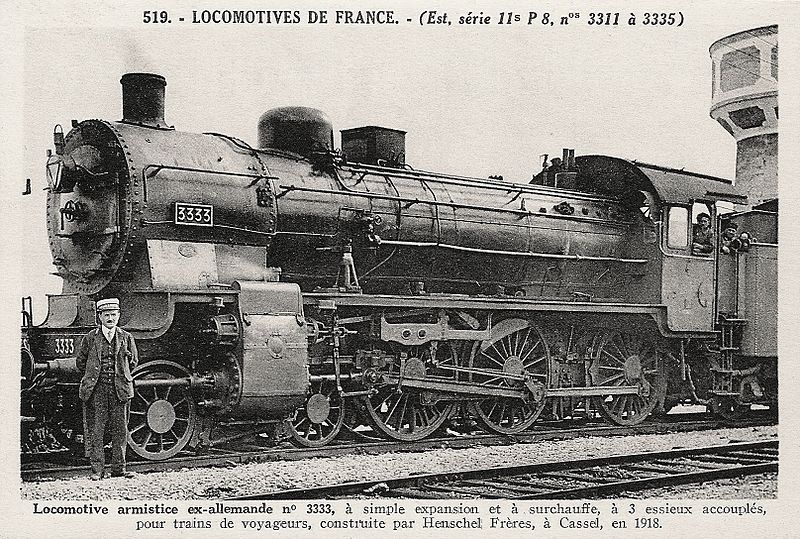

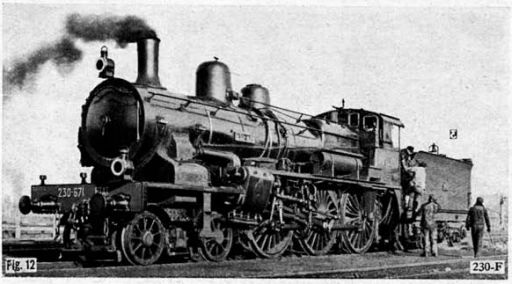

11s | 3311 to 3335 | 1-230.F.311 to 335 | Schwartzkopff; Borsig; Linke-Hofmann; Henschel & Sohn. |
--- | Est: 1920 SNCF: 1938 |
1965 |
|
|
11s | 3103 to 3280 | 1-230.J.103 to 280 | Épernay Workshops; Maffei; SACM at Blefort; Batignolles-Châtillon. |
--- | Est: 1906 SNCF: 1938 |
1946 |
|
|
11s | 3103 to 3280 | 1-230.K.103 to 280 | --- | Épernay Workshops | Est: 1932 SNCF: 1938 |
1965 |
|
|
11s | 31001 to 31040 | 1-231.B.1 to 40 | Société Franco-Belge; Batignolles-Châtillon. |
--- | Est: 1921 SNCF: 1938 |
1959 |
|
|

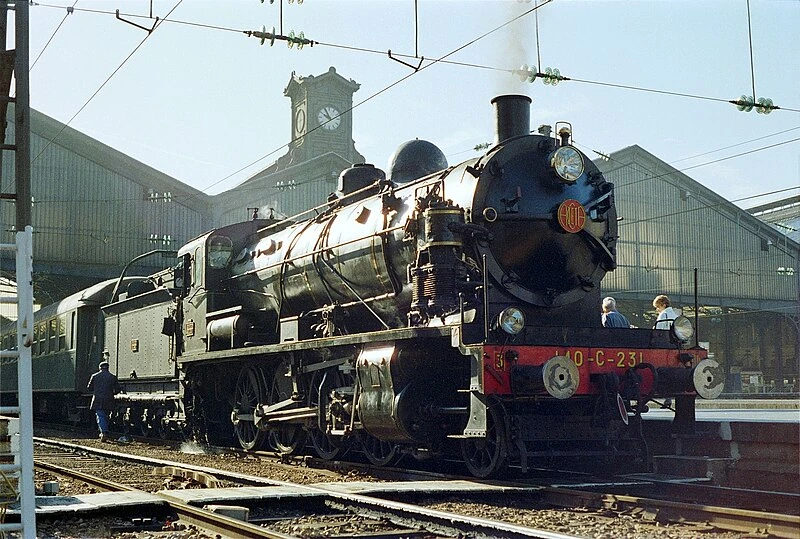

12s | 231-051 to 231-073 | 1-231.C.51 to 73 | --- | Tours Workshops | Est: 1935 SNCF: 1938 |
1959 |
|
|

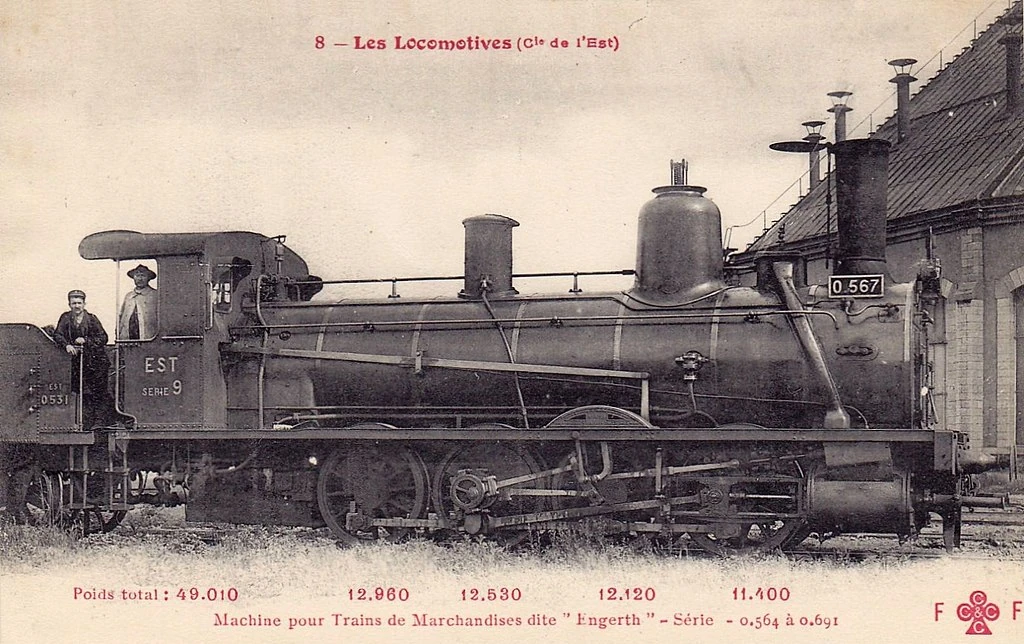

9 | O.501 to 0.691 | 1-040.A.501 to 691 | Schneider; SACM at Graffestaden; Fives Lille; Épernay Workshops; SACM at Belfort; Cail. |
--- | Est: 1856 SNCF: 1938 |
1959 | |
|
10 bis | 4706 to 4745 | 1-040.B.706 to 745 | Schwartzkopff; Vulcan; Schichau; Henschel & Sohn; Linke-Hofmann; Hartmann; Hanomag; Jung; Hohenzollern; Borsig; Karlsruhe; Esslingen |
--- | Est: 1920 SNCF: 1938 |
1954 |
|
|
11s | 4801 to 4931 | 1-040.C.801, 802, 804, 819, 821, 822, 824, 827, 830 and 831 |
Vulcan; Schichau; Henschel & Sohn; Hanomag. |
--- | Est: 1920 SNCF: 1938 |
1965 |
|
|
12s | 4292 to 4399 | 1-040.D.492 to 599 | Vulcan; Schichau; Henschel & Sohn; Borsig; Linke-Hofmann; Orenstein & Koppel; Hanomag; Jung; Humbolt; SACM at Graffenstaden; Hagans; Hohenzollern |
--- | Est: 1920 SNCF: 1938 |
1965 |
|
|
12s | 4003 to 4175 | 1-140.A.3 to 175 | Épernay Workshops; Henschel & Sohn; Chmenitz; Chmenitz; Fives Lille; Blanc Misseron. |
--- | Est: 1905 SNCF: 1938 |
1954 | |
|

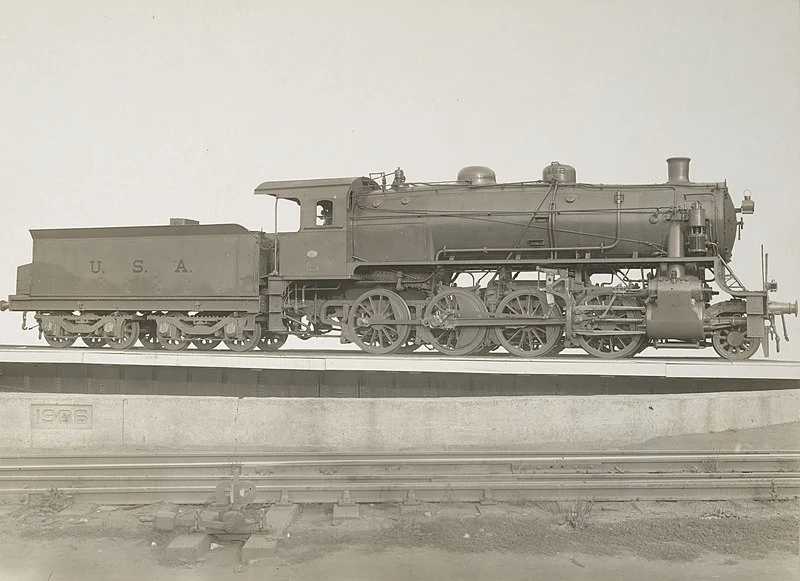

12s | 40101 to 40310 | 1-140.B.101 to 310, then 1-140.G.891 to 1100 |
Baldwin | --- | Est: 1920 SNCF: 1938 |
1955 |
|
|
12s | 40001 to 40035 | 1-140.C.1 to 35 | Nasmyth, Gaskell & Cie; north Britsih & Cie. |
--- | Est: 1920 SNCF: 1938 |
1975 |
|
|

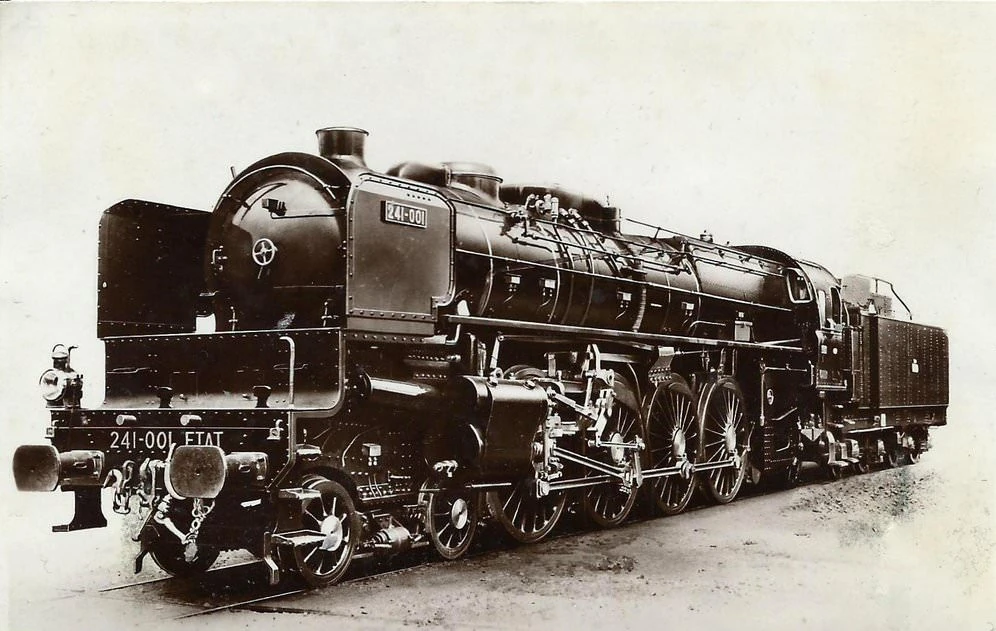

13 | 41001, then 241-001 to 041 |
1-241.A.1 to 41 | Épernay Workshops; SFCM FFives Lille. |
--- | Est: 1925 SNCF: 1938 |
1965 |
|
|
12 | 5005 | 1-050.A.5 | Maschinenfabrick | --- | Est: 1920 SNCF: 1938 |
1939 |
|
| 12s | 5006 to 5010 | 1-050.A.6 to 9 | Maschinenfabrick | --- | Est: 1920 SNCF: 1938 |
1950 |
| |
| 13 | 5015 | 1-150.A.15 | Henschel & Sohn | --- | Est: 1920 SNCF: 1938 |
1945 |
| |
|
13 | 5201 to 5206 | 1-150.D.201 and 206 | Hartmann | --- | Est: 1920 SNCF: 1938 |
1952 |
|
|

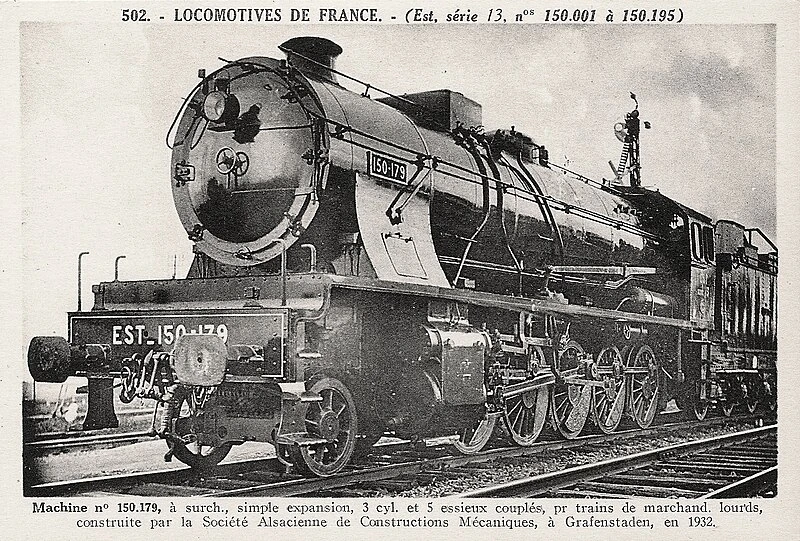

13 | 5211 to 5335; then 150-001 to 195 |
1-150.E.1 to 195 | SACM at Graffenstaden; SACM at Belfort; Blanc Misseron Fives Lille. |
--- | Est: 1926 SNCF: 1938 |
1965 |
|
Tank locomotives[] | ||||||||
|
6 | 0.201 to 0.249, and 0.171 to 0182 |
1-030.TB.203 | Épernay Workshops; Koechlin; Graffestaden |
--- | Est: 1859 SNCF: 1938 |
1948 | |
|
8 | 0.613 to 0.742 | 1-031.TA.613 to 742 | Épernay Workshops; SACM at Belfort; Cail; Batignolles Châtillon |
--- | Est: 1881 SNCF: 1938 |
1950 | |
|
8 | V 0.613 to 0.637 and V 647 to 666 |
1-131.TA.613 to 637 and 647 to 666 | --- | Épernay Workshops | Est: 1906 SNCF: 1938 |
1950 | |
|
11s bis | 32001 to 32050 | 1-131.TB.1 to 50 | Atliers des Compagnions du Nord de la France; Fives Lille. |
--- | Est: 1906 SNCF: 1938 |
1969 | |
|
11s bis | B 684 to B 733 | 1-230.TA.684 to 733 | --- | Épernay Workshops | Est: 1894 SNCF: 1938 |
1950 | |
|

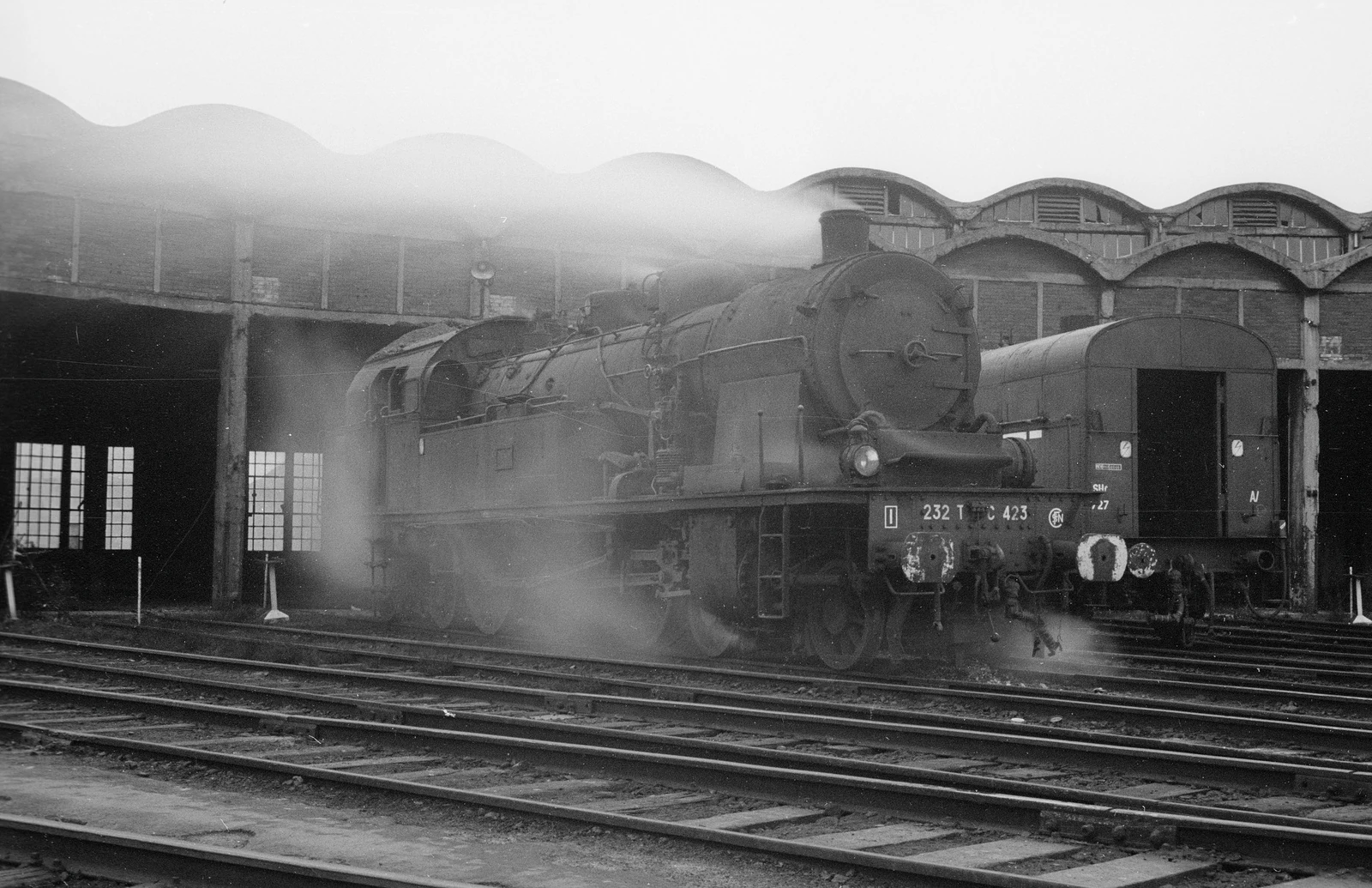

11s bis | 3901 to 3940, then 33901 to 33940 |
1-232.TA.901 to 940 | SACM at Belfort; Sächsische Maschinenfabrik |
--- | Est: 1894 SNCF: 1938 |
1951 | |
|

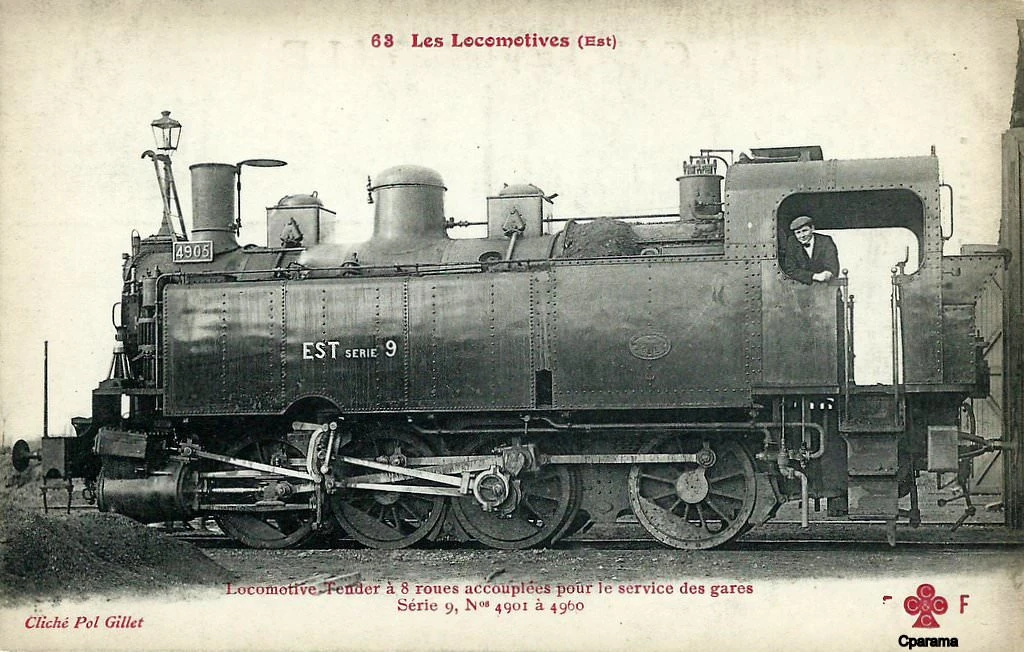

9 | 4901 to 4990 | 1-040.TA.901 to 990 | SFCM; Épernay Workshops; Blanc Misseron |
--- | Est: 1907 SNCF: 1938 |
1962 | |
|
11 s | 4656 to 4682 | 1-141.TA.656 to 682 | Henschel & Sohn; Hohenzollern; Union Gießerei Königsberg. |
--- | Est: 1920 SNCF: 1938 |
1957 |
|
|

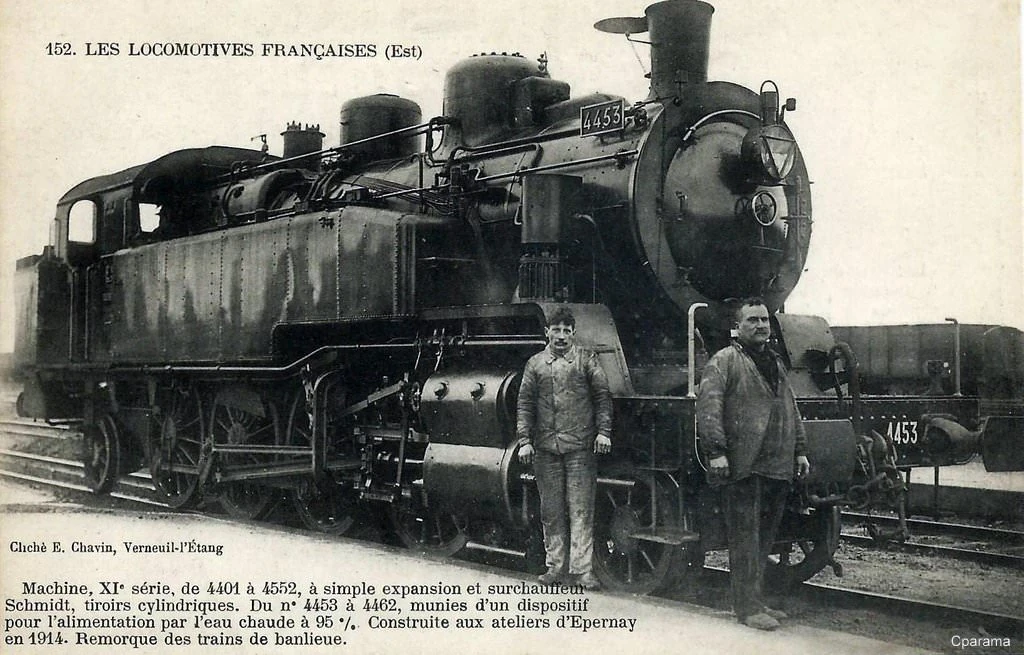

11 | 4401 to 4512 | 1-141.TB.401 to 512 | Blanc Misseron; Saint-Léonard; Épernay Workshops; SFCM |
--- | Est: 1913 SNCF: 1938 |
1971 |
|
|
12s | 141-701 to 742 | 1-141.TC.701 to 742 | Blanc Misseron; Saint-Léonard; Épernay Workshops; SFCM |
--- | Est: 1930 SNCF: 1938 |
1961 |
|

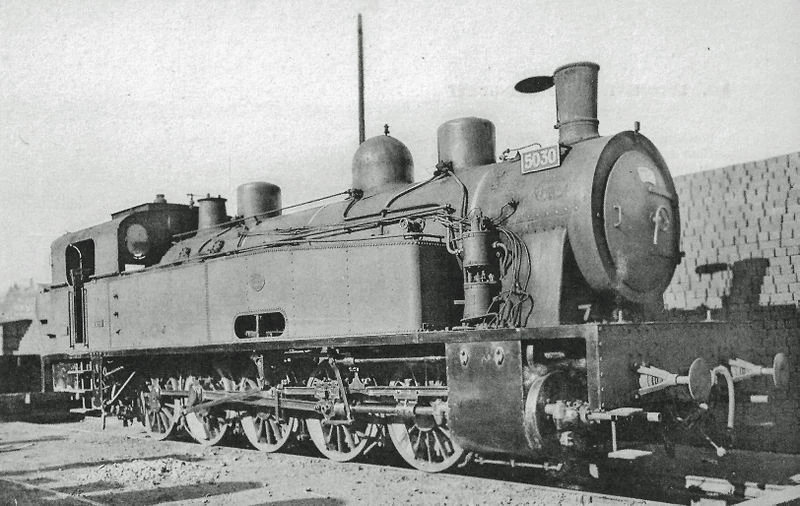

| 13 | 5001 and 5002, and 5901 to 5925, then 150-701 to 727 |
1-151.TA.701 to 727 | Épernay Workshops | --- | Est: 1913 SNCF: 1938 |
1966 | ||
|
13 | 150-751 to 780 | 1-151.TC.751 to 780 | SACM at Graffenstaden | --- | Est: 1913 SNCF: 1938 |
1966 | |
AL[]
| Image | class | Former AL Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|---|
Tender locomotives[] | ||||||||
| G 4 | 3801 to 3877 | 1-030.C.810 | SACM at Graffenstaden; Henschel & Sohn; Hohenzollern; Hanomag. |
--- | EL: 1895 AL: 1919 SNCF: 1938 |
??? | ||
|

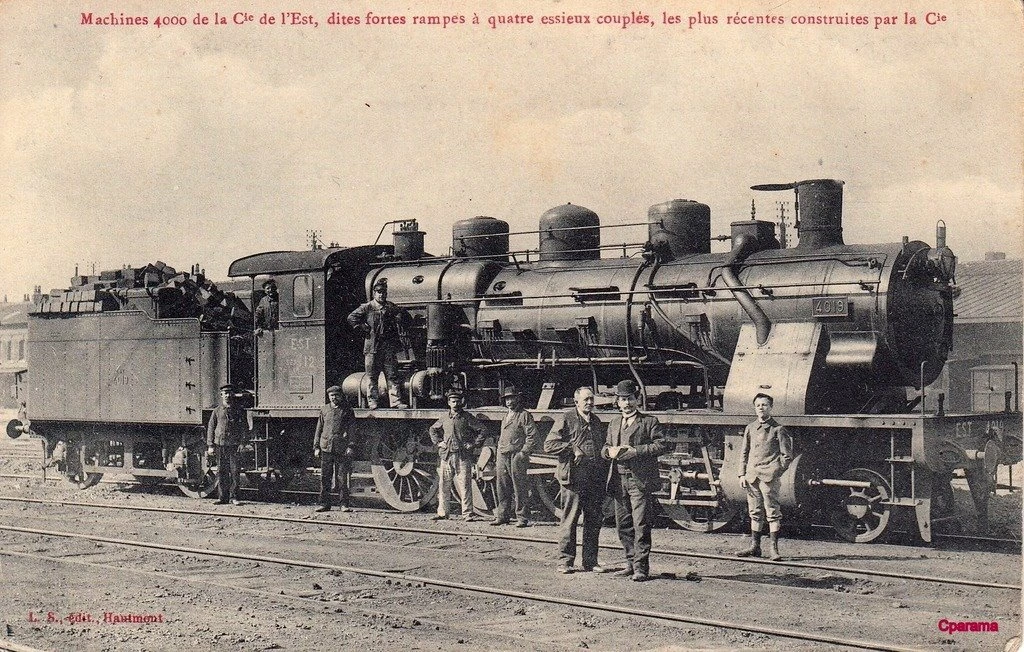

G 5.2 | 4001 to 4215 and 4219 to 4239 |
1-130.C.62 to 239 | SACM at Graffenstaden; Henschel & Sohn; Hohenzollern; Hanomag. |
--- | EL: 1900 AL: 1919 SNCF: 1938 |
1953 |
|
| G 5.4 | 4251 to 4267 | 1-130.C.253 and 265 | SACM at Graffenstaden; Humbolt |
--- | AL: 1919 SNCF: 1938 |
1939 |
| |
| G 5.5 | 4271 to 4273 | 1-130.C.273 | SACM at Graffenstaden | --- | AL: 1912 SNCF: 1938 |
??? | ||
|
P 7 | 2301 to 2330 | 1-230.C.301 to 330 | SACM at Graffenstaden | --- | EL: 1906 AL: 1919 SNCF: 1938 |
1949 |
|
|
S 9 | 901 to 980 | 1-230.D.901 to 980 | SACM at Graffenstaden; Henschel & Sohn |
--- | EL: 1906 AL: 1919 SNCF: 1938 |
1957 | |
| P 8 | 2350 to 2374 | 1-230.F.352 to 374 | SACM at Graffenstaden; Henschel & Sohn |
--- | EL: 1919 AL: 1919 SNCF: 1938 |
1966 |
| |
|
S 10.1 | 1101 to 1117 and 1118 to 1122 |
1-230.G.101 to 122 | Henschel & Sohn | --- | EL: 1912 AL: 1919 SNCF: 1938 |
1957 |
|
|
S 10 | and 1150 to 1162 |
1-230.H.157, 159 to 161 | Henschel & Sohn |
--- | AL: 1919 SNCF: 1938 |
1939 |
|
|
S 12 | 1301 to 1308 | 1-231.A.301 to 308 | SACM at Graffestaden | --- | EL: 1909 AL: 1919 SNCF: 1938 |
1951 | |
|
S 14 | 1311 to 1370 | 1-231.B.311 to 370 | Fives Lille | --- | AL: 1922 SNCF: 1938 |
1957 |
|
|
S 16 | 1401 and 1402 | 1-231.D.401 and 402 | SACM at Graffenstaden | --- | AL: 1933 SNCF: 1938 |
1946 |
|
|
G 7.2 | 4321 to 4351 | 1-040.B.321 to 351 | Orenstein & Koppel; Vulcan; Schichau; Henschel & Sohn; Linke-Hofmann; Hanomag; SACM at Graffestaden; Hohenzollern. |
--- | Est: 1920 SNCF: 1938 |
1953 |
|
|
G 8.1 | 5001 to 5138, 5151 to 5287, and 5301 to 5372 |
1-040.D.1 to 138, 151 to 287 and 301 to 372 | SACM at Graffenstaden; Vulcan; Linke-Hofmann; Borsig; Schichau; Henschel & Sohn; Humbolt; Jung; Hanomag; Schwartzkopff; Orenstein & Koppel; Hohenzollern |
--- | EL:1913 AL:1919 SNCF: 1938 |
1966 |
|
|

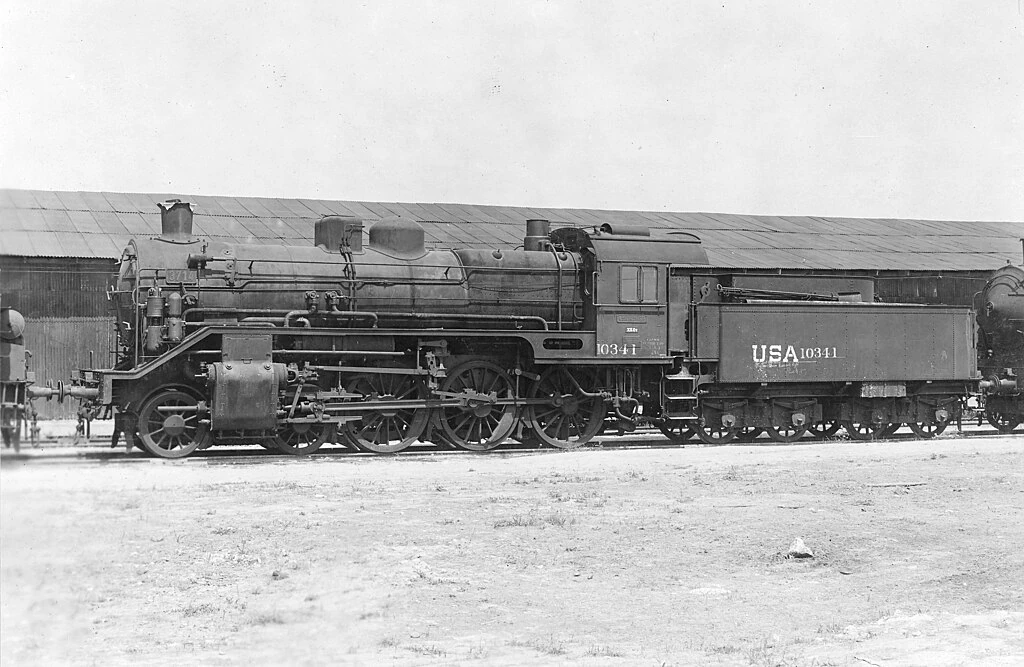

G 14 | 5701 to 5822 | 1-140.B.701 to 822, then 1-140.G.701 to 882 |
Baldwin | --- | AL: 1920 SNCF: 1938 |
1955 |
|
|
G 10 | 5401 to 5435 and 5437 to 5453 |
1-050.B.401 to 435 and 437 to 453 |
Henschel & Sohn; SACM at Graffenstaden; Borsig; Hanomag. |
--- | EL:1910 AL:1920 SNCF: 1938 |
1955 |
|
| G 12.1 | 5546 to 5550 and 5551 to 5562 |
1-150.B.546 to 562 | Henschel & Sohn | --- | EL:1915 AL:1919 SNCF: 1938 |
1955 |
| |
|
G 12 | 5563 to 5680 and 5681 to 5689 |
1-150.C.563 to 689 | ??? | --- | EL:1917 AL:1920 SNCF: 1938 |
1957 |
|
| G 16 | 5901 and 5902 | 1-151.A.901 and 902 | ??? | --- | AL:1937 SNCF: 1938 |
1945 |
| |
Tank locomotives[] | ||||||||
| T 5 | 2201 to 2237, then 6601 to 6637 |
1-122.TA.601 to 637 | Krauss-Maffei; SACM at Graffestaden. |
--- | EL: 1903 AL: 1919 SNCF: 1938 |
1948 | ||
| T 3 | 527 to 532, then 2064 to 2069 |
1-030.TA.66 | Henschel & Sohn | --- | EL: 1886 AL: 1919 SNCF: 1938 |
1941 | ||
| T 3 | 674 to 677and 682 to 693, then 2098 to 2113, then 6126 to 6141 |
1-030.TB.125, 130 and 134 | SACM at Graffestaden | --- | EL: 1890 AL: 1919 SNCF: 1938 |
1958 | ||
| T 9.3 | 7151 to 7182, 7183 to 7187 and 7189 to 7193 |
1-130.TA.56 to 191 | Henschel & Sohn; Union Gießerei Königsberg; Krauss; Humbolt; SACM at Graffestaden; Orenstein & Koppel; Jung; Hanomag. |
--- | EL: 1901 AL: 1919 SNCF: 1938 |
1955 |
| |
| T 12 | 7701 to 7725 and 7726 to 7729 |
1-130.TB.703 to 729 | SACM at Graffestaden; Borsig; Hohenzollern; Union Gießerei Königsberg; Hagans. |
--- | EL: 1901 AL: 1919 SNCF: 1938 |
1955 |
| |
| T 17 | 1013 to 1033, then 2501 to 2562, then 8301 to 8366 |
1-232.TB.301 to 366 | SACM at Graffestaden | --- | EL: 1905 AL: 1919 SNCF: 1938 |
1952 | ||
|
T 18 | 8401 to 8427 | 1-232.TC.401 to 427 | Vulkan | --- | EL: 1915 AL: 1919 SNCF: 1938 |
1966 | |
| T 37 | 868 to 878, then 3031 to 3043, then 111 to 129 |
1-040.TB.111 to 123 | Hagans | --- | EL: 1903 AL: 1919 SNCF: 1938 |
1952 |
| |
| T 13 | 7901 to 7960 and 7961 to 7964 |
1-040.TC.902 to 964 | SACM at Graffestaden; Hohenzollern; Hagans; Union Gießerei Königsberg. |
--- | EL: 1914 AL: 1919 SNCF: 1938 |
1955 |
| |
|
T 14 | 8501 to 8540 and 8541 to 8546 |
1-141.TA.501 to 546 | SACM at Graffestaden; Hohenzollern; Hagans; |
--- | EL: 1915 AL: 1919 SNCF: 1938 |
1958 |
|
| T 20 | 8601 to 8630 | 1-242.TA.601 to 630 | Batignolles-Châtillon at Nantes; SACM at Graffestaden. |
--- | AL: 1929 SNCF: 1938 |
1969 | ||
| T 16 | 8101 to 8118 | 1-050.TA.101 to 118 | SACM at Graffestaden | --- | EL: 1913 AL: 1919 SNCF: 1938 |
1955 | ||

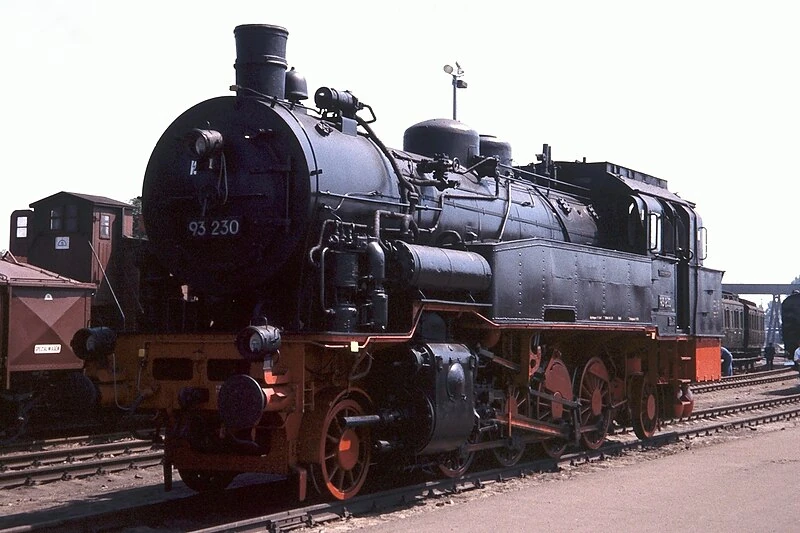

| T 93 | 8201 to 8213 | 1-151.TB.201 to 213 | SACM at Graffestaden | SACM at Graffestaden | AL: 1928 SNCF: 1938 |
1951 |
| |
Locomotives coming from other SNCF regions[]
| Image | Region(s) of origin | Former SNCF Number(s) | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission (on the region) | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|---|
Tender locomotives[] |
||||||||
|
|
|
Borsig; Henschel & Sohn; Linke-Hofmann; Humbolt; Schichau; Schwartkopff; Vulcan. |
1945 | 1965 |
| ||
| Western Region | 3-231.C.503, 512, 522, 546, 636, 637, 639, 747, 754, 781 | 1-231.B.301 to 310; then 1-231.B.41 to 50 |
Batignolles-Châtillon; Fives-Lille. |
Épernay's Workshops | 1938 | 1957 |
| |
|
Southwestern Region | 4-231.F.701 to 717 | 1-231.C.401 to 417 | --- | Tours Workshops | 1946 | 1951 |
|
|

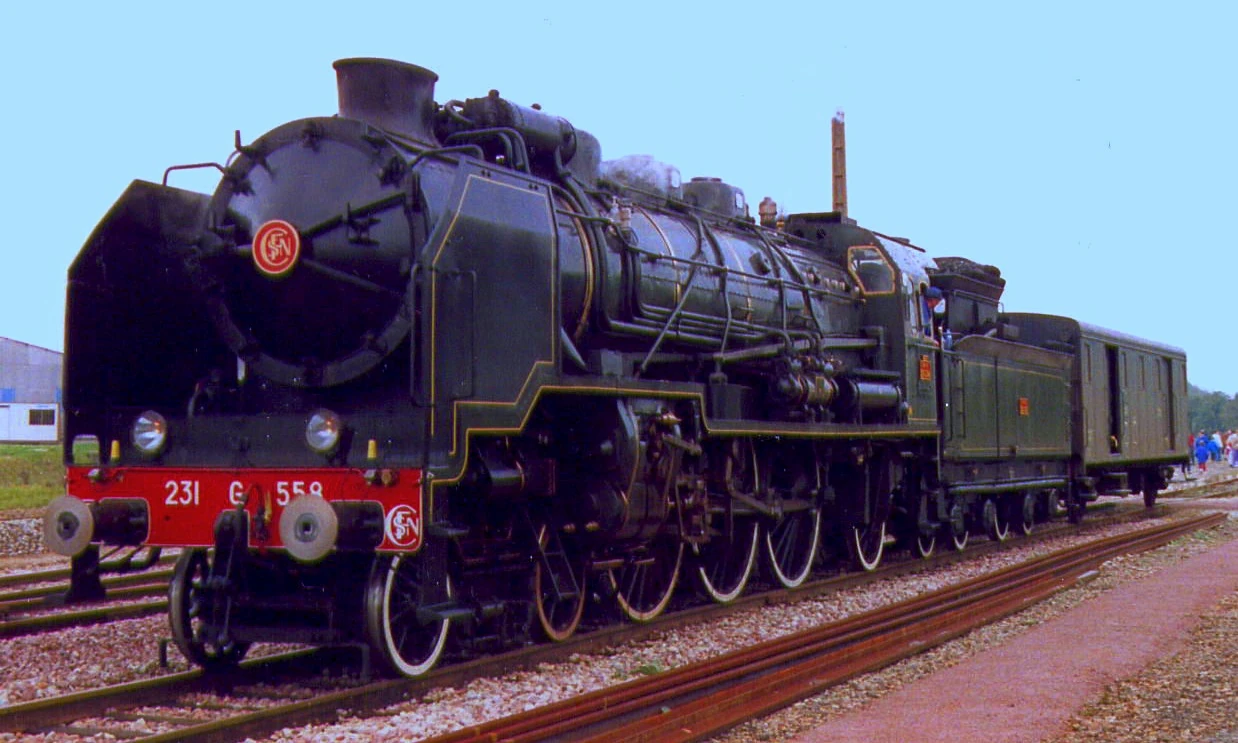

Southeastern Region | 5-231.G.2 to 285 | 1-231.G.2 to 285 | Oullins Workshops; C.G.C.E.M. |
1951 | 1966 |
| |
|
Southeastern Region | 5-231.K.2 to 86 | 1-231.K.9 to 86 | Oullins Workshops; C.G.C.E.M. |
1959 | 1966 |
| |
|
|
|
Borsig; Hanomag; Henschel & Sohn; Linke-Hofmann; Schwartkopff; SACM at Graffestaden; Schichau; Jung; Vulcan; Humbolt. |
1945 | 1968 |
| ||
|
Western Region | 3-140.C.101 to 370 | 1-140.C.between 101 and 370 | SACM at Belfort; Fives-Lille; Schneider; Nasmyth, Wilson & Company; North British Locomotive Company |
1945 | 1975 |
| |
|
Southeastern Region | 5-140.K.1 to 35 | 1-140.C.501 to 535, then 1-140.C.36 to 70 |
Nasmyth, Wilson & Company; North British Locomotive Company |
1945 | 1975 |
| |
|
Western Region | 3-241.A.1 to 49 | 1-241.A.301 to 339, then 1-241.A.42 to 90 |
Fives-Lille; SFCM; Batignolles-Châtillon |
1946 | 1965 |
| |
|
Western Region | 3-150.A.1 to 10 | 1-150.E.196 to 203 | Fives-Lille | 1949 | 1963 |
| |
|
Southeastern Region | 5-151.A.1 to 10 | 1-151.A.1 to 10 | Schneider | 1949 | 1957 |
| |
Tank locomotives[] | ||||||||
| Western Region | 3-030.TA.638 |
|
1938 | Circa 1950 | ||||
Northern Region (2)[]
Nord[]
| Image | Former Nord Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|
Tender locomotives[] | |||||||
|

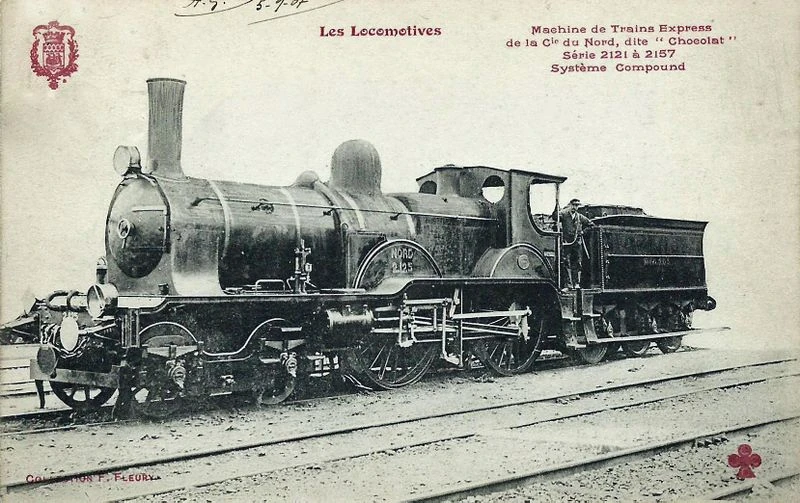

2.121 to 2.180 | 2-220.A.1 to 4 | SACM at Belfort | --- | Nord: 1891 SNCF: 1938 |
1944 |
|
|
2.121 to 2.180 | 2-221.A.1 to 35 | SACM at Belfort; Fives Lille ;SFCM |
--- | Nord: 1900 SNCF: 1938 |
1948 |
|
|
3.1551 to 3.1566 | 2-130.A.1 to 16 | Hanomag; Henschel & Sohn; Schwartkopff. |
Nord: 1919 SNCF: 1938 |
1953 |
| |
| 3.1401 and 3.1402 | 2-130.B.1 | La Chapelle Workshops | --- | Nord: 1913 SNCF: 1938 |
1941 |
| |
| 3.1501 to 3.1402 | 2-130.C.1 to 3 | La Chapelle Workshops | --- | Nord: 1914 SNCF: 1938 |
1941 |
| |
|
3.078 to 3.354 | 2-230.A.1 to 277 | SACM at Belfort | --- | Nord: 1911 SNCF: 1938 |
1962 |
|
| 3.999 | 2-230.B.1 | Schneider |
|
Nord: 1913 SNCF: 1938 |
1946 |
| |
|
2-230.C.1 to 75 | Borsig; Henschel & Sohn; Linke-Hofmann; Humbolt; Schichau; Schwartkopff; Vulcan. |
Nord: 1919 SNCF: 1938 |
1962 |
| ||
|
3.513 to 3.662 | 2-230.D.1 to 149 | Hellemes Workshops; La Chapelle Workshops; Fives Lille; Henschel & Sohn; Schwartzkopff; Forges de Gilly |
Nord: 1908 SNCF: 1938 |
1969 |
| |
|
3.1690 to 3.1699 | 2-230.E.1 to 10 | Hanomag; Schwartkopff; Vulcan. |
Nord: 1919 SNCF: 1938 |
1953 |
| |
|
3.1151 to 3.1170 | 2-231.A.1 to 20 | SACM | Nord: 1919 SNCF: 1938 |
Circa 1960 |
| |
|

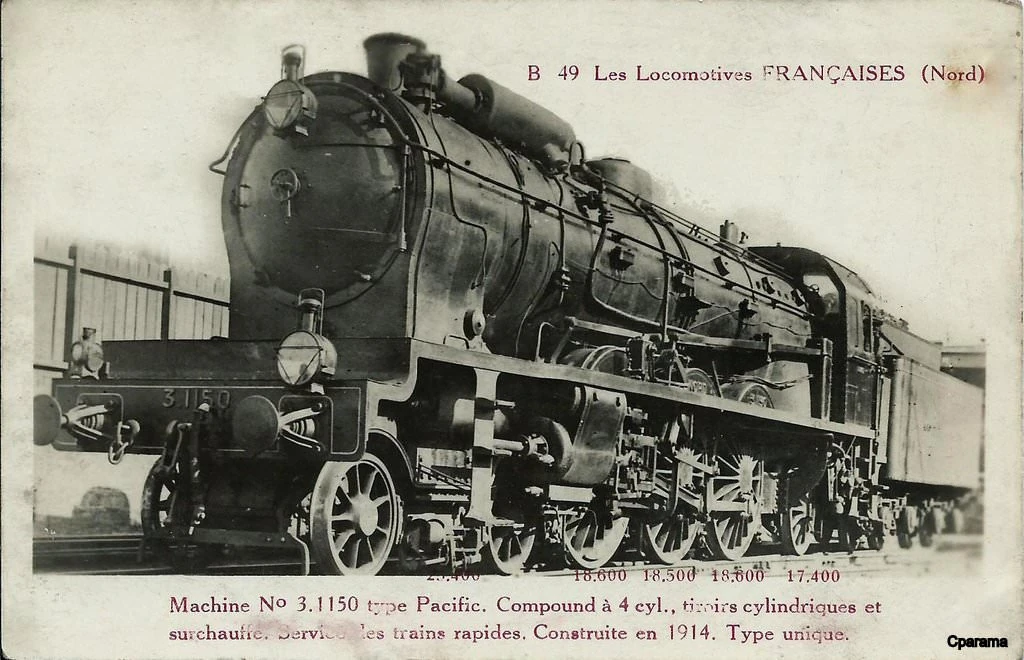

3.1150 | 2-231.B.1 | Fives Lille | Nord: 1920 SNCF: 1938 |
1947 |
| |
|
3.1201 to 3.1240 | 2-231.C.1 to 40 | ANF-Blanc Misseron | Nord: 1923 SNCF: 1938 |
Circa 1961 |
| |
|
3.1241 to 3.1248 | 2-231.C.41 to 48 | ANF-Blanc Misseron | Nord: 1930 SNCF: 1938 |
Circa 1961 |
| |
|
3.1251 to 3.1290 | 2-231.C.49 to 88 | SFCM | Nord: 1930 SNCF: 1938 |
1962 |
| |
|
3.1249 and 3.1250 | 2-231.D.1 and 2 | ANF-Blanc Misseron | Nord: 1930 SNCF: 1938 |
1945 |
| |
|
3.1111 to 3.1130 and 3.1171 to 3.1198 |
2-231.E.1 to 48 | ANF-Blanc Misseron; Forges et aciéries de la Marine et d'Homécourt; Fives Lille |
Tours Workshops | Nord: 1934 SNCF: 1938 |
1967 |
|
|
4.001 to 4.075 and 4.801 to 4.990 | 2-040.A.1 and 2 | Floridsdorf; Wiener Neustadt; Cail; Batignolles; Schneider & Cie; Fives-Lille; Cockerill; Claparèle. |
--- | Nord: 1881 SNCF: 1938 |
circa 1950 |
|
|
4.1001 to 4.1098 | 2-040.B.1 to 97 | Linke-Hofmann; Hanomag; Henschel & Sohn; Schichau; Schwartzkopff; Vulcan; Union Gießerei Königsberg. |
--- | Nord: 1919 SNCF: 1938 |
1953 |
|
|
4.572 to 4.598 | 2-040.C.1 to 27 | Hanomag; Henschel & Sohn; Orenstein & Koppel; Schichau; Vulcan. |
--- | Nord: 1919 SNCF: 1938 |
1940 |
|
|
4.351 to 4.562 | 2-040.D.1 to 212 | Schwartzkopff; Borsig; Vulcan; Hanomag; SACM at Graffenstaden; Henschel & Sohn; Linke-Hofmann; Hohenzollern; Humbolt; Jung; Orenstein & Koppel ;Schichau; Wolf. |
--- | Nord: 1919 SNCF: 1938 |
1969 |
|
|
4.061 to 4.340 | 2-140.A.1 to 280 | La Chapelle Workshops; SFCM; Société Franco-Belge; Batignolles; Schneider & Cie; SACM. |
--- | Nord: 1922 SNCF: 1938 |
1959 |
|
|
4.1551 à 4.1663 | 2-140.B.1 to 108 | Baldwin | --- | Nord: 1919 SNCF: 1938 |
Circa 1950 |
|
|
4.1551 to 4.1663 | 2-140.C.1 to 242 then 2-140.G.1701 to 1942 |
Baldwin | --- | Nord: 1919 SNCF: 1938 |
Circa 1950 |
|
|
4.1301 to 4.1663 | 2-140.D.1 to 22 then 2-140.G.1951 to 1972 |
Baldwin | --- | Nord: 1919 SNCF: 1938 |
Circa 1950 |
|
|
4.1101 to 4.1150 | 2-141.A.1 to 50 | Baldwin | --- | Nord: 1919 SNCF: 1938 |
1953 |
|
|
5.001 to 5.022 and 5.031 to 5.120 |
2-15O.A.1 to 112 | La Chapelle Workshops Hellemmes Workshops SFCM SACM |
--- | Nord: 1912 SNCF: 1938 |
1957 | |
|
5.1201 to 5.1230 | 2-15O.B.1 to 30 | La Chapelle Workshops Hellemmes Workshops |
--- | Nord: 1933 SNCF: 1938 |
???? | |
|
5.001 to 5.022 and 5.031 to 5.120 |
2-15O.C between 1 to 112 | La Chapelle Workshops Hellemmes Workshops SFCM SACM |
???? | Nord: ???? SNCF: 1938 |
1958 |
|
Tank locomotives[] | |||||||
| 2.001 to 2.035 | 2-020.TA.1 to 3 | Fives-Lille; Société Franco-Belge; La Chapelle Workshops |
--- | Nord: 1878 SNCF: 1938 |
???? |
| |
|

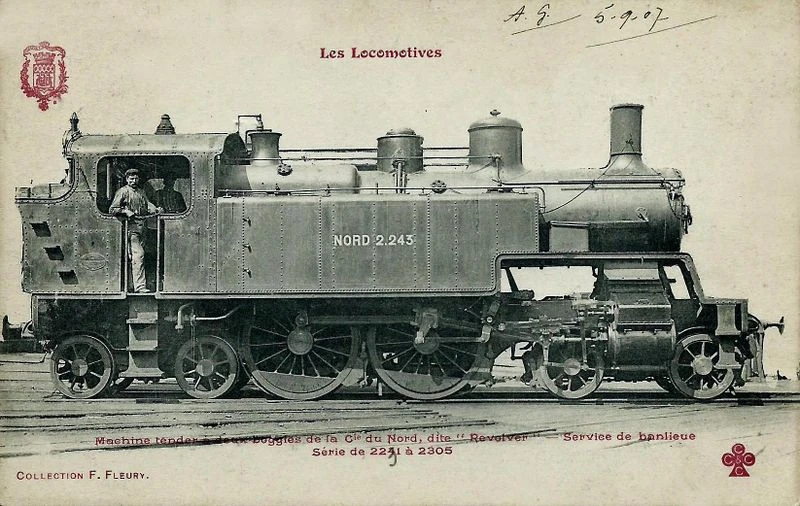

2.231 to 2.305 | 2-222.TA.1 to 75 | La Chapelle Workshops; Hellemmes Workshops |
--- | Nord: 1901 SNCF: 1938 |
???? |
|
|
2.311 to 2.380 | 2-220.TA.1 to 19 | SACM; Société Franco-Belge; Fives-Lille; Schneider |
--- | Nord: 1891 SNCF: 1938 |
1954 |
|
|

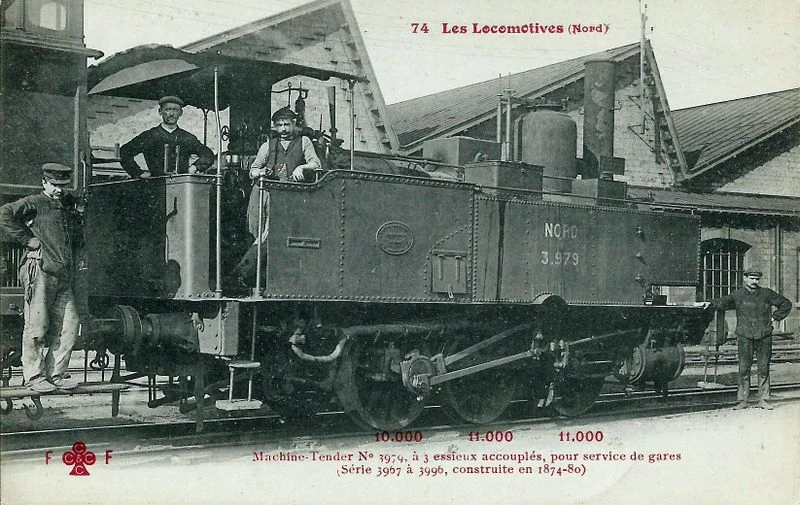

3.931 to 3.996 | 2-030.TA.1 to 65 | Ernest Goüin and Co.; SACM at Belfort |
La Chapelle Workshops | Nord: 1872 SNCF: 1938 |
???? | |
|
3.901 to 3.915 | 2-030.TB.1 to 9 | La Chapelle Workshops.; Hellemmes Workshops |
--- | Ceinture: 1899 Nord: 1934 SNCF: 1938 |
1955 |
|
|
3.1451 to 3.1459 | 2-031.TA.1 to 9 | Borsig; Hanomag; Hohenzollern; Union Gießerei Königsberg |
--- | Nord: 1919 SNCF: 1938 |
1953 |
|
|
3.1461 and 3.1462 | 2-130.TA.1 and 2 | Borsig; SACM |
--- | Nord: 1919 SNCF: 1938 |
1951 |
|
| 3.1463 to 3.1491 | 2-130.TB.1 to 29 | Hanomag; SACM; Wolf; Henschel & Sohn; Hohenzollern; Jung; Orenstein & Koppel; Union Gießerei Königsberg; Vulacn. |
--- | Nord: 1919 SNCF: 1938 |
1957 |
| |
|
3.888 to 3.899 | 2-130.TC.1 to 12 | Borsig; Hohenzollern. |
--- | Nord: 1919 SNCF: 1938 |
1953 |
|
|
3.888 to 3.899 | 2-131.TA.1 to 3 | Essligen | --- | Nord: 1919 SNCF: 1938 |
1947 |
|
|
3.701 to 3.715 | 2-230.TA.1 to 6 | La Chapelle Workshops; Hellemmes Workshops |
--- | Ceinture: 1902 Nord: 1934 SNCF: 1938 |
???? | |
|
3.1499 then 3.887 |
2-230.TB.1 | Borsig | --- | Nord: 1919 SNCF: 1938 |
1946 |
|
| 3.702 | 2-231.TA.1 | Hellemmes Workshops | ???? | Ceinture: 1902 Nord: 1934 SNCF: 1938 |
???? |
| |
|
3.801 to 3.865 | 2-232.TA.1 to 65 | SFCM; Hellemmes Workshops |
--- | Ceinture: 1909 Nord: 1934 SNCF: 1938 |
1957 |
|
|

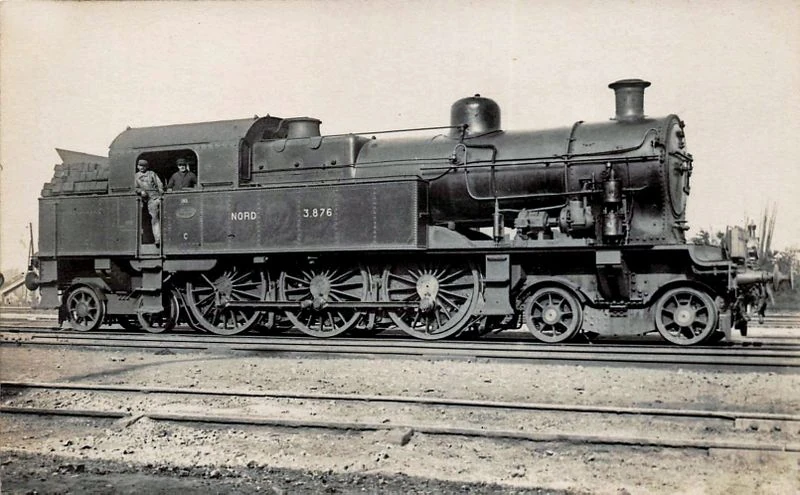

3.871 to 3.884 | 2-232.TB.1 to 14 | Beyer-Peacock | --- | ROD: 1914 Nord: 1919 SNCF: 1938 |
1954 |
|
| 4.1801 to 4.1908 | 2-040.TA.1 to 108 | --- | ???? | Nord: 1907 SNCF: 1938 |
1962 |
| |
|
4.961 to 4.1968 | 2-040.TB.1 to 5 | ???? | --- | Ceinture: 1874 Nord: 1934 SNCF: 1938 |
???? |
|
|
4.969 to 4.973 | 2-040.TC.1 | ???? | ???? | Ceinture: 1874 Nord: 1934 SNCF: 1938 |
???? |
|
|
4.446 to 4.460 then 4.1981 to 1995 then 4. 2001 to 2015 |
2-040.TD.1 to 15 | Société Franco-Belge | --- | Nord: 1901 SNCF: 1938 |
???? | |
| 4.974 to 4.976 | 2-040.TE.1 to 3 | ???? | --- | Ceinture: ???? Nord: 1934 SNCF: 1938 |
???? | ||
|
4.1941 to 4.1959 | 2-040.TF.1 to 16 | Hanomag; SACM; Wolf; Union Gießerei Königsberg |
--- | Nord: 1919 SNCF: 1938 |
1964 |
|
| 4.2016 to 4.2095 | 2-040.TG.1 to 80 | ANF Blanc-Misseron; Corpet-Louvet |
--- | Nord: 1930 SNCF: 1938 |
1967 | ||
|
4.1664 to 4.1700 | 2-141.TA.1 to 37 | Canadian Locomotive Co. | --- | Nord: 1919 SNCF: 1938 |
1962 | |
| 4.1701 and 4.1702 | 2-141.TB.1 and 2 | ???? | ???? | Nord: ???? SNCF: 1938 |
???? |
| |
|
4.1201 to 4.1272 | 2-141.TC.1 to 72 | Hellemmes Workshops; SACM; ANF Blanc-Misseron; Société Franco-Belge; Schneider & Sohn; Fives-Lilles; SFCM |
--- | Nord: 1932 SNCF: 1938 |
1970 |
|
|
4.001 and 4.005 | 2-240.TA.1 to 5 | ???? | --- | Ceinture: 1904 Nord: 1934 SNCF: 1938 |
???? |
|
|
5.5551 to 5.5555 | 2-050.TA.1 to 5 | Henschel & Sohn | --- | Nord: 1919 SNCF: 1938 |
1947 |
|
|
5.501 to 5.525 | 2-050.TB.1 to 25 | Schwartzkopff; SACM |
--- | Nord: 1919 SNCF: 1938 |
1955 |
|
|
5.526 | 2-050.TC.1 | Hartmann | --- | Nord: 1919 SNCF: 1938 |
1953 |
|
|
5.601 to 5.670 | 2-050.TD.1 to 70 | SACM; SFCM |
--- | Nord: 1930 SNCF: 1938 |
1969 |
|
| 5.301 to 5.312 | 2-151.TA.1 to 12 | Corpet-Louvet | --- | Ceinture: 1928 Nord: 1934 SNCF: 1938 |
1965 |
| |
|
6.121 to 6.168 | 2-031+130.TA.1 to 47 | La Chapelle Workshops; Hellemmes Workshops |
--- | Nord: 1905 SNCF: 1938 |
1952 |
|
Western Region (3)[]
Ouest[]
| Image | Former Ouest and État Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|
Tender Locomotives[] | |||||||
|
Ouest 707 to 743 then État 120-901 to 937 |
3-120.A.909 | Batignolles Workshops; SACM at Graffenstaden. |
--- | Ouest: 1877 État: 1909 SNCF: 1938 |
Circa 1940 |
|
|
Ouest 939 to 998 then État 220-303 to 360 |
3-220.A.303 to 360 | Batignolles Workshops; Société Franco-Belge; Schneider & Co. |
--- | Ouest: 1888 État: 1909 SNCF: 1938 |
1950 | |
|
Ouest 503 to 562 then État 220-503 to 562 |
3-220.B.503 to 562 | Sotteville Workshops; SACM at Belfort; Wiener-Neushtadt. |
--- | Ouest: 1897 État: 1909 SNCF: 1938 |
1949 | |
|

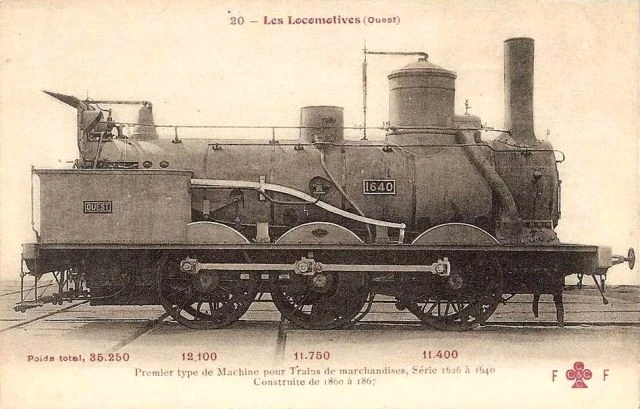

Ouest 1601 to 1640 then État 030-301 to 392 |
3-030.B.503 to 562 | Schneider & Co; Ernest Gouïn & Co. |
--- | Ouest: 1861 État: 1909 SNCF: 1938 |
???? | |
|
Ouest 1904 to 2244 then État 030-531 to 860 |
3-030.C.531 to 860 | Fives-Lille; Forges et Chantiers de l'Océan; SACM; Schneider & Co; Claparède; Batignolles Workshops; Wiener Neustädter Lokomotivfabrik; Société Franco-Belge. |
--- | Ouest: 1873 État: 1909 SNCF: 1938 |
1966 |
|
|
Ouest 2245 to 2269 then État 030-861 to 885 |
3-030.D.861 to 885 | Batignolles Workshops; Société Franco-Belge. |
--- | Ouest: 1892 État: 1909 SNCF: 1938 |
1961 | |
|
Ouest 2501 to 2540 then État 230-101 to 140 |
3-230.A.101 to 140 | SACM; Batignolles-Châtillon; Société Franco-Belge. |
--- | Ouest: 1898 État: 1909 SNCF: 1938 |
1956 | |
|
Ouest 2701 to 2820 then État 230-501 to 620 |
3-230.C.501 to 620 | Sotteville Workshops; Batignolles Workshops; Fives-Lille; SFCM; Borsig; Henschel & Sohn. |
--- | Ouest: 1901 État: 1909 SNCF: 1938 |
1956 | |
|
Ouest 2541 to 2570 then État 230-141 to 170 |
3-230.D.141 to 170 | SACM; Batignolles-Châtillon; Société Franco-Belge. |
--- | Ouest: 1898 État: 1909 SNCF: 1938 |
1955 |
|
Tank locomotives[] | |||||||
|
Ouest 1011 to 1104 then État 30-601 to 704 |
3-030.TA.601 to 704 | Fives-Lille; SACM |
--- | Ouest: 1861 État: 1909 SNCF: 1938 |
1967 | |
|
Ouest 3001 to 3031 then État 30-301 to 331 |
3-030.TB.301 to 331 | Sotteville Workshops; Schneider & Co.; Cail |
--- | Ouest: 1881 État: 1909 SNCF: 1938 |
1964 | |
|
Ouest 3501 to 3530 then État 30-173 to 202 |
3-030.TB.173 to 202 | Cail; Sotteville Workshops; SACM; Fives-Lille |
--- | Ouest: 1885 État: 1909 SNCF: 1938 |
1952 | |
|
Ouest 3531 to 3601 then État 30-101 to 172 |
3-030.TB.101 to 172 | Fives-Lille; Société Franco-Belge; Batignolles Workshops. |
--- | Ouest: 1889 État: 1909 SNCF: 1938 |
1961 | |
|
Ouest 3801 to 3850 then État 32-501 to 550 |
3-131.TA.501 to 550 | SACM Belfort; SFCM |
--- | Ouest: 1907 État: 1909 SNCF: 1938 |
Circa 1965 | |
|
Ouest 3701 to 3745 then État 32-001 to 045 |
3-230.TA.1 to 45 | Fives-Lille; Schneider & Co.; Lokomotivfabrik der StEG |
--- | Ouest: 187 État: 1909 SNCF: 1938 |
1951 |
|
| --- | 3-240.TA.1, 2, 7, 11 and 13 | --- | Sotteville-Quatres-Mares | SNCF: 1942 | 1951 |
| |
État[]
| Image | Former État Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|
Tender locomotives[] | |||||||
|
2029 to 2099 and 2500 to 2528, then 120-021 to 116 |
3-120.A.36 to 116 | Schneider & Sohn; Fives-Lille |
--- | État: 1883 SNCF: 1938 |
???? |
|
| 2078 to 2505 then 121-029 to 039 |
3-121.B.29 to 39 | Schneider & Sohn; Fives-Lille |
??? | État: 1894 SNCF: 1938 |
???? |
| |
| 2601 to 2620 then 121-051 to 020 |
3-121.C.51 to 69 | SACM; Fives-Lille; Cail |
--- | État: 1889 SNCF: 1938 |
???? | ||
|
2951 to 2960 then 221-101 to 110 |
3-221.A.101 to 110 | Cail | --- | État: 1905 SNCF: 1938 |
1949 | |
| 6 to 29 ,then 3037 to 3060, then 030-014 to 028 |
3-030.A.14 to 28 | Graffenstaden; Batignolles Workshops; Schneider & Co.; SACM. |
--- | VR: 1871 État: 1878 SNCF: 1938 |
???? |
| |
| 3061 to 3100 and 3500 to 3569, then 030-031 to 130 |
3-030.A.56 to 123 | Fives-Lille; SACM at Graffenstaden; Cail |
--- | État: 1878 SNCF: 1938 |
???? |
| |
| 030-901 to 912 | 3-030.A.902, 907 and 911 | Maffei; Krauss |
--- | État: 1919 SNCF: 1938 |
1944 |
| |
| 52 to 68 then 3121 to 3138 and 3169 to 3206 ,then 030-421 to 438 and 447-475 |
3-030.B.421 to 438 and 447-475 | Graffenstaden; Fives-Lille; SACM at Belfort |
--- | CR: 1875 État: 1878 SNCF: 1938 |
???? |
| |
|
130-601 to 640 | 3-130.A.602 to 636 | Fives-Lille; Forges et Chantiers de l'Océan; SACM; Schneider & Co; Claparède; Batignolles Workshops; Wiener Neustädter Lokomotivfabrik; Société Franco-Belge. |
État Tours Workshops | État: 1909 SNCF: 1938 |
???? |
|
|

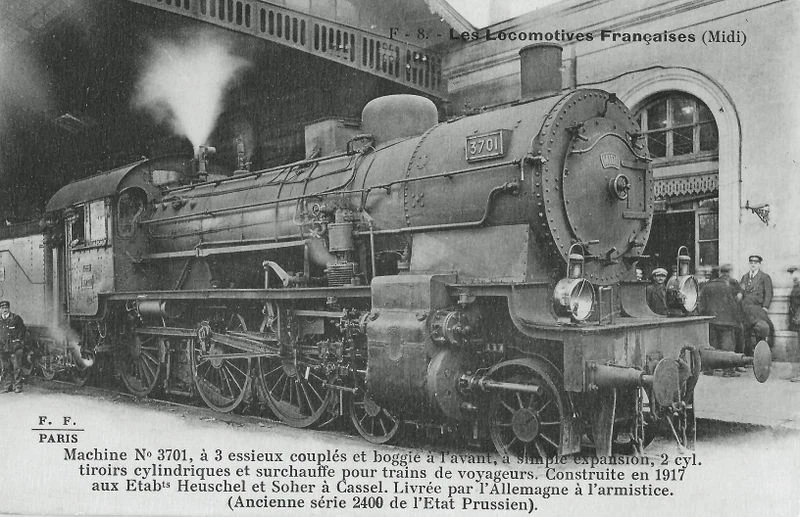

3701 to 3755 then 230-001 to 055 |
3-230.B.1 to 55 | Fives-Lille; SFCM; Schneider & Co. |
--- | État: 1901 SNCF: 1938 |
???? | |
|
230-171 to 320 | 3-230.D.171 to 320 | Batignolles Workshops; Société Franco-Belge; SACM; SFCM; Schneider & Co. |
--- | État: 1911 SNCF: 1938 |
???? |
|
|
230-321 to 370 | 3-230.D.323, 341 and 365 | North British & Co. | --- | État: (1911-1938) SNCF: 1941 |
???? |
|
|
230-931 to 942 | 3-230.E.933, 935, 937 to 941 | Maffei | --- | État: 1919 SNCF: 1938 |
1940 |
|
|
230-943 to 959 | 3-230.E.943, 944, 950, 951, 953, 955 and 958 | Schwartzkopff; Linke-Hofmann; Henschel & Sohn; Humbolt; Schichau; Borsig. |
--- | État: 1919 SNCF: 1938 |
1945 |
|
|
230-961 to 984 | 3-230.E.961 to 984 | Hartmann | --- | État: 1919 SNCF: 1938 |
1953 |
|
| 230-619 and 620 | 3-230.F.619 and 620, later 3-230.M.619 and 620 |
Henschel & Sohn | ??? | État: ???? SNCF: 1938 |
???? | ||
| 230-621 to 705 | 3-230.F.621 to 705 | SFCM; Fives-Lille |
--- | État: 1912 SNCF: 1938 |
1959 | ||
|
3801 to 3840 then 230-801 to 883 |
3-230.G.801 to 883 | SFCM; Fives-Lille; Franco-Belge; Schneider & Co. |
--- | État: 1908 SNCF: 1938 |
1954 |
|
| 230-371 to 385 | 3-230.H.371 to 385 | SACM at Belfort | --- | État: 1912 SNCF: 1938 |
1961 | ||
|
230-781 to 800 | 3-230.J.781 to 800 | SACM at Belfort | --- | État: 1912 SNCF: 1938 |
1957 |
|
|
230-401 to 441 | 3-230.K.401 to 441 | SACM | --- | État: 1934 SNCF: 1938 |
1963 |
|
| 230-783, 788, 792, 793, 796 and 800 | 3-230.L.783, 788, 792, 793, 796 and 800 | SACM | --- | État: 1936 SNCF: 1938 |
1957 |
| |
| 230-590, 605 and 618 | 3-230.M.590, 605 and 618 | Borsig; Henschel & Sohn |
??? | État: ???? SNCF: 1938 |
???? |
| |
|
231-981 to 996 | 3-231.A.981 to 996 | Maffei | --- | État: 1919 SNCF: 1938 |
1945 |
|
|
231-997 to 999 | 3-231.A.997 to 999 | Esslingen | --- | État: 1919 SNCF: 1938 |
1944 |
|
|
231-011 to 060 | 3-231.B.11 to 60 | Fives-Lille; Schneider & Co.; Cail |
--- | État: 1910 SNCF: 1938 |
1957 | |
| 231-501 to 783 | 3-231.C between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
Circa 1960 | ||
|
231-501 to 783 | 3-231.D between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
1968 | |
| 231-501 to 783 | 3-231.E between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
Circa 1960 | ||
| 231-501 to 783 | 3-231.F between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
Circa 1960 | ||
|
231-501 to 783 | 3-231.G between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
1968 |
|
| 231-501 to 783 | 3-231.H between 501 and 783 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1914 SNCF: 1938 |
1968 | ||
|
231-501 to 783 | 3-231.J.523 | Batignolles-Châtillon | --- | État: 1922 SNCF: 1938 |
1953 | |
| 231-401 to 420 | 3-231.D,F and G between 401 an 420 | Fives-Lille; North British Locomotive Company Limited; Batignolles-Châtillon; Schneider & Co. |
--- | État: 1934 SNCF: 1938 |
1960s |
| |
|
040-901 to 941 | 3-040.B.901 to 941 | Schichau; Borsig; Jung; Hanomag; SACM at Graffenstaden; Henschel & Sohn, Wolf; Humbolt; Orenstein & Koppel; Vulcan |
--- | État: 1919 SNCF: 1938 |
1948 |
|
|
140-501 to 600 and 1000 to 1045 |
3-140.A.501 to 600 and 1000 to 1045; then 3-140.H.501 to 600 and 1000 to 1045 |
ALCO | --- | État: 1919 SNCF: 1938 |
Circa 1960 |
|
|
140-1101 to 1510 | 3-140.B.1101 to 1510 then 3-140.G.1101 to 1510 |
Baldwin Locomotive Works | --- | État: 1919 SNCF: 1938 |
Circa 1955 |
|
|
140-101 to 370 | 3-140.C.101 to 370 | Schneider & Co.; SACM at Belfort; Fives-Lille; North British Locomotive Company Limited; Nasmyth, Wilson & Co.; Vulcan Foundry. |
--- | État: 1912 SNCF: 1938 |
1970 |
|
|
140-908 to 955 | 3-140.D.908 to 952 | Maffei; Krauss |
--- | État: 1919 SNCF: 1938 |
1945 |
|
|
141-401 to 416 | 3-141.A.401 to 416 | ALCO | --- | PO: 1918 État: 1934 SNCF: 1938 |
???? |
|
| 141-001 to 250 | 3-141.B.1 to 250 | Schneider & Co.; SACM at Graffenstaden |
--- | État: 1921 SNCF: 1938 |
???? | ||
|
141-001 to 250 | 3-141.C.1 to 250 | Schneider & Co.; SACM at Graffenstaden |
??? | État: 1921 SNCF: 1938 |
1971 |
|
| 141-136 | 3-141.D.136 | Schneider & Co. | ??? | État: 1936 SNCF: 1938 |
???? |
| |
| 141-136 | 3-141.E.113 | Schneider & Co. | ??? | SNCF: 1945 | ???? |
| |
|
241-001 to 049 | 3-241.A.1 to 49 | Fives-Lille; SFCM; Batignolles-Châtillon |
--- | État: 1931 SNCF: 1938 |
1949 |
|
|
241-101 | 3-241.B.101 | Fives-Lille | --- | État: 1932 SNCF: 1938 |
1940 |
|
|
150-001 to 010 | 3-150.A.1 to 10 | Fives-Lille | --- | État: 1930 SNCF: 1938 |
1949 |
|
Tank locomotives[] | |||||||
|
État 32-551 to 620 | 3-131.TA.551 to 620 | SFCM; Fives-Lille; Société Franco-Belge |
--- | État: 1930 SNCF: 1938 |
Circa 1965 |
|
|
32-901 to 915 | 3-131.TB.901 to 915 | Karlsruhe; Jung |
--- | État: 1919 SNCF: 1938 |
1953 |
|
|
32-916 to 923 | 3-131.TB.916, 917, 919 and 921 | Hartmann | --- | État: 1919 SNCF: 1938 |
1953 |
|
|
Ceinture nos. 81 to 93 État 81 to 93 |
3-232.TA.81 to 93 | SFCM | --- | Ceinture: 1909 État: 1934 SNCF: 1938 |
1952 |
|
|
État 40-101 to 143 | 3-040.TA.101 to 143 | ANF Blanc-Misseron; Schneider & Co.; Fives-Lille; Nord Workshops of Sotteville |
--- | État: 1914 SNCF: 1938 |
1970 |
|
|
42-901 to 923 | 3-141.TA.901 to 923 | Union Gießerei; Hohenzollern; Henschel & Sohn |
--- | État: 1919 SNCF: 1938 |
1945 |
|
|
42-701 to 707 | 3-141.TB.701 to 707 | Batignolles; SACM |
--- | État: 1934 SNCF: 1938 |
1949 |
|
|
42-001 to 020 | 3-141.TC.1 to 20 | Fives-Lille | --- | État: 1922 SNCF: 1938 |
1971 |
|
|
42-101 to 140 | 3-141.TD.101 to 140 | SFCM | --- | État: 1932 SNCF: 1938 |
1967 |
|
| Ceinture nos. 6001 to 6038 État 6001 to 6038 |
3-130+031.TA.1 to 38 | SFCM | --- | Ceinture: 1909 État: 1934 SNCF: 1938 |
1944 |
| |
Southwestern Region (4)[]
PO[]
| Image | Former PO Numbers | Former PO-Midi Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|---|
Tender locomotives[] | ||||||||
|
51 to 96 | 121-051 to 96 | 4-121.A.51 to 96 | SACM; Batignolles |
--- | PO: 1885 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
265 to 400 | 121-265 to 399 | 4-121.A.265 to 399 | SACM at Mulouse; SACM at Graffenstaden; Ivry Workshops; Sharp & Stuart; Société Saint-Léonard; Carels Frères |
--- | PO: 1882 PO-Midi: 1934 SNCF: 1938 |
???? |
|
|
448 to 575 | 121-448 to 575 | 4-121.B.448 to 575 | Ivry Workshops; Wiener Neustadt; Cockerill Workshops; Batignolles; Cail; Schneider & Co. |
--- | PO: 1879 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
3001 to 3014 | 221-001 to 014 | 4-221.A.1 to 14 | SACM | --- | PO: 1903 PO-Midi: 1934 SNCF: 1938 |
1945 | |
|
792 to 996 | 030-792 to 875 | 4-030.A.793 to 875 | André Koechlin; Cail; Fives-Lille; Graffenstaden; Claparède; Ivry Workshops, Schneider & Co.; SACM at Belfort |
--- | PO: 1863 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
601 to 640 | 030-602 to 639 | 4-030.C.602 to 639 | SACM at Belfort | --- | PO: 1877 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1801 to 1831 | 130-701 to 731 | 4-130.A.701 to 731 | Paris Workshops; Société Franco-Belge |
--- | PO: 1885 PO-Midi: 1934 SNCF: 1938 |
1949 | |
|
1901 to 1962 | 130-901 to 907 | 4-130.C.901 to 907 | --- | --- | PO: 1904 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
601 S, 613 S, 621 S and 635 S | 130-601 to 604 | 4-130.D.601 to 604 | --- | Tours Workshops | PO: 1911 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
946 S, 953 S, 954 S, 968 S, 975 S and 976 S | 130-946, 953, 954, 968, 975 and 976 | 4-130.D.946, 953, 954, 968, 975 and 976 | --- | Tours Workshops | PO: 1911 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1566 S to 1605 S | 130-566 to 580 | 4-130.E.566 to 580 | --- | Tours Workshops | PO: 1911 PO-Midi: 1934 SNCF: 1938 |
???? | |
| 1606 to 1610 | 130-606 to 610 | 4-130.E.606 to 610 | --- | Tours Workshops | PO: 1914 PO-Midi: 1934 SNCF: 1938 |
???? | ||
|
4001 to 4084 | 230-001 to 084 | 4-230.C.2 to 8, 10 to 84 and 4-230.D.91 |
SACM; Schneider & Co.; Baldwin |
--- | PO: 1903 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
171 S to 257 S, 285 S | 230-151 to 185 | 4-230.F.151 to 185 | --- | Ivry Workshops | PO: 1911 PO-Midi: 1934 SNCF: 1938 |
1958 |
|
|
3201 to 3235 | 230-101 to 135 | 4-230.F.101 to 135 | Fives-Lille | --- | PO: 1913 PO-Midi: 1934 SNCF: 1938 |
1958 |
|
|
4201 to 4270 | 230-201 to 370 | 4-230.G.201 to 370 | Batignolles-Châtillon; SACM; North-British Locomotive Co. |
--- | PO: 1915 PO-Midi: 1934 SNCF: 1938 |
1975 |
|
|

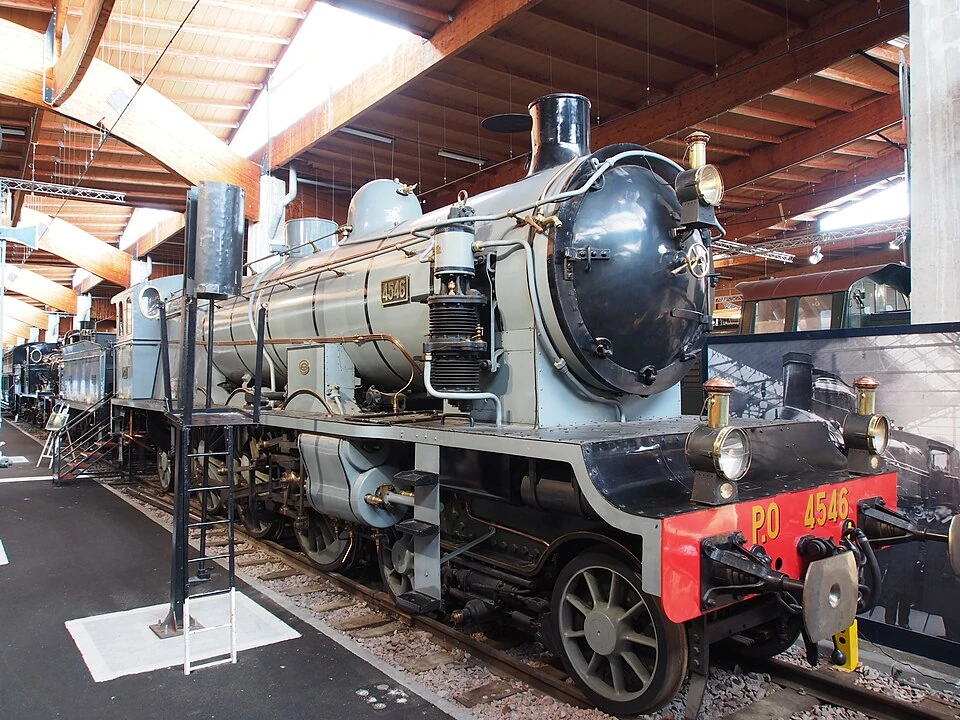

4501 to 4600 | 231-501 to 600 | 4-231.A.501 to 600 | SACM at Belfort; ;Hanomag SFCM; ALCO. |
--- | PO: 1907 PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
3591 to 3640 | 231-601 to 650 | 4-231.D.601 to 650 | ALCO | --- | PO: 1921 PO-Midi: 1934 SNCF: 1938 |
1962 | |
|
3701 to 3721 | 231-701 to 721 | 4-231.F.701 to 720 | --- | Tours Workshops | PO: 1929 PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
3801 to 3806 and 3821 to 3829 | 231-801 to 806 and 821 to 829 | 4-231.G.801 to 806 and 821 to 829 then 4-231.J.801 to 806 and 821 to 829 |
--- | Tours Workshops | PO: 1932 PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
3722 to 3731 | 231-722 to 731 | 4-231.H.722 to 731 | --- | Tours Workshops | PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
1261 to 1303 | 040-261 to 303 | 4-040.G.261 to 303 | Vulcan; Schwartzkopff; Hartmann; Schichau; Hanomag; Henschel & Sohn; Borsig; Orenstein & Koppel; Hohenzollern |
--- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
5001 to 5152 | 140-001 to 152 | 4-140.B.001 to 152 | SACM; Schneider & Co.; Fives-Lille; Borsig |
--- | PO: 1904 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
5001 to 5152 | 140-153 to 167 | 4-140.C.153 to 167 | Fives-Lille | --- | PO: 1913 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
7101 to 7349 | 140-401 to 649 | 4-140.D.401 to 649 then 4-140.G.2401 to 2649 |
Baldwin | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
Circa 1950 |
|
|
7001 to 7076 | 140-701 to 776 | 4-140.H.701 to 776 | ALCO | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
Circa 1960 |
|
|
5801 and 5802 | 140-801 and 802 | 4-141.A.801 and 802 | Tours Workshops | --- | PO: 1917 PO-Midi: 1934 SNCF: 1938 |
Circa 1960 |
|
|
5811 to 5960 | 140-827 to 860 | 4-141.B.827 to 860 | ALCO | --- | PO: 1918 PO-Midi: 1934 SNCF: 1938 |
???? |
|
|
4701 to 4712 | 240-701 to 712 | 4-240.A.701 to 712 | --- | Tours Workshops | PO: 1931 PO-Midi: 1934 SNCF: 1938 |
1952 |
|
|
5553 to 5557 then 5532 to 5534 |
050-532 to 534 | 4-050.A.532 to 534 | Hartmann | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1942 |
|
|
5556 to 5570 then 5535 to 5549 |
050-535 to 549 | 4-050.B.535, 536, 541 to 546, 548 and 549 | Hartmann | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1942 |
|
|
5571 to 5581 then 5550 to 5560 |
050-550 to 560 | 4-050.C.550, 551, 557 and 560 | Hartmann | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1942 |
|
|
5526 to 5552 | 050-526, 529 and 531 | 4-050.D.526 and 531 | --- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1953 |
| |
|
6001 to 6070 | 150-001 to 070 | 4-150.A.1 to 70 | SACM; Fives-Lilles; Société Franco-Belge |
--- | PO: 1909 PO-Midi: 1934 SNCF: 1938 |
1955 |
|
Tank locomotives[] | ||||||||
|
1021 to 1030 | 030-021, 023, 025, 028, 030 | 4-030.TB.21, 23, 25, 28 and 30 | Ivry Workshops | --- | PO: 1873 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1031 to 1074 | 030-034, 037 to 074 | 4-030.TC.34, 37 to 74 | Cail; SACM; Schneider & Co. |
--- | PO: 1877 PO-Midi: 1934 SNCF: 1938 |
???? | |
| 2983 to 2994 | 030-983 to 994 | 4-030.TG.91 to 93 and 99 | --- | Ivry Workshops | PO: 1913 PO-Midi: 1934 SNCF: 1938 |
???? |
| |
|
1861 to 1867 | 130-861 and 864 to 867 | 4-130.TA.861 and 864 to 867 | Union Gießerei Königsberg; Hohenzollern |
--- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1947 |
|
|
1868 to 1871 | 130-869 to 871 | 4-130.TB.869 to 871 | Hohenzollern; Jung; Henschel & Sohn |
--- | PO: 1919 PO-Midi: 1934 SNCF: 1938 |
1954 |
|
|
5301 to 5490 | 141-301 to 490 | 4-141.TA.301 to 490 | SLM Winterthur; Fives-Lille; Batignolles-Châtillon; North British Coy Ltd; Schneider & Co. |
--- | PO: 1911 PO-Midi: 1934 SNCF: 1938 |
1970 |
|
|
5616 to 5740 | 141-616 to 740 | 4-141.TB.616 to 740 | Batignolles-Châtillon; SACM |
--- | PO: 1921 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
5501 to 5525 | 050-501 to 525 | 4-050.TA.501 to 525 | Schwartzkopff; SACM; Fives-Lille |
--- | PO: 1908 PO-Midi: 1934 SNCF: 1938 |
???? |
|
Midi[]
| Image | Former Midi Numbers | Former PO-Midi numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|---|
Tender Locomotives[] | ||||||||
|
149 to 180 | 120-152, 163, 164, 175, 178 and 179 | 4-120.A.152, 163, 164, 175, 178 and 179 | Gouïn & Co. | --- | Midi: 1855 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1751 to 1774 | 220-751 to 774 | 4-220.A.751 to 774 | Schneider & Co. | --- | Midi: 1897 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1775 to 1784 | 220-775 to 784 | 4-220.A.775 to 783 | SACM | --- | Midi: 1900 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
801 to 1202 | 030-101 to 194 | 4-030.B.101 to 194 | Bordeaux Saint-Jean Workshops; Graffenstaden; Koechlin; Fives-Lille; Schneider & Co.; Cail & Co.; Wiener-Neustadt; IRP & Co. |
--- | Midi: 1900 PO-Midi: 1934 SNCF: 1938 |
1959 |
|
|
1801 to 1850 | 130-801 to 850 | 4-130.B.803 to 850 | --- | Bordeaux Saint-Jean Workshops | Midi: 1899 PO-Midi: 1934 SNCF: 1938 |
1948 |
|
|
1401 to 1431 | 230-401 to 431 | 4-230.A.401 to 431 | SACM; Schneider & Co. |
--- | Midi: 1896 PO-Midi: 1934 SNCF: 1938 |
???? |
|
|
1301 to 1370 | 230-601 to 670 | 4-230.B.601 to 670 | SACM; Schneider & Co.; Fives-Lille |
--- | Midi: 1896 PO-Midi: 1934 SNCF: 1938 |
Circa 1960 |
|
|
3501 to 3526 | 230-501 to 526 | 4-230.E.501 to 526 | Schwartzkopff; Fives-Lille |
--- | Midi: 1910 PO-Midi: 1934 SNCF: 1938 |
1950 |
|
|
3701 to 3720 | 230-701 to 720 | 4-230.H.701 to 720 | Vulcan; Borsig; Schichau; Linke-Hofmann; Schwartzkopff; Henschel & Sohn; Humbolt. |
--- | Midi: 1919 PO-Midi: 1934 SNCF: 1938 |
1945 |
|
|
3001 to 3016 | 231-001 to 016 | 4-231.B.1 to 16 | SACM | --- | Midi: 1908 PO-Midi: 1934 SNCF: 1938 |
1957 | |
|
3051 to 3054 | 231-051 to 054 | 4-231.C.51 to 54 | SACM | --- | Midi: 1910 PO-Midi: 1934 SNCF: 1938 |
Circa 1955 | |
|
3101 to 3120 | 231-101 to 120 | 4-231.E.101 to 120 | SACM | --- | Midi: 1921 PO-Midi: 1934 SNCF: 1938 |
Circa 1955 | |
|
701 to 715 | 040-701 to 715 | 4-040.B.701 to 705 | Cail & Co. | --- | Midi: 1863 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
1001 to 1040 then 2 001 à 2 046 |

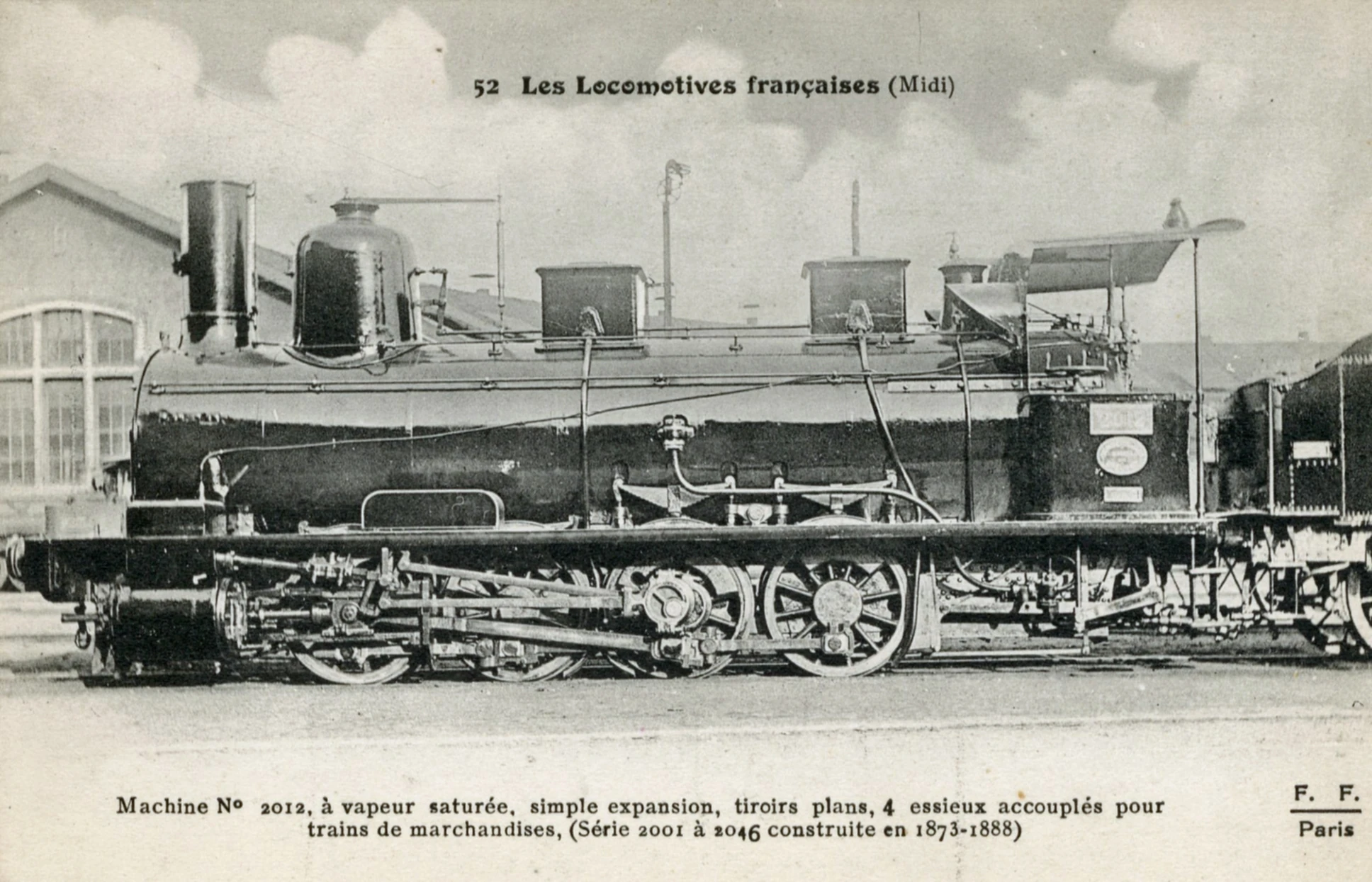

040-006 to 046 | 4-040.D.6 to 46 | Schneider & Co. | --- | Midi: 1873 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
2051 to 2072 | 040-051 to 072 | 4-040.H.51 to 72 | --- | Bordeaux Saint-Jean Workshops | Midi: 1903 PO-Midi: 1934 SNCF: 1938 |
???? |
|
|
2201 to 2251 | 040-501 to 551 | 4-040.K.501 to 551 | Schichau; Borsig; Hanomag; Jung Henschel & Sohn; SACM; Schwartzkopff; Humbolt; Vulcan; Orenstein & Koppel; Linke-Hofmann; Hohenzollern. |
--- | Midi: 1919 PO-Midi: 1934 SNCF: 1938 |
1945 |
|
|
4001 to 4018 | 140-901 to 918 | 4-140.A.901 to 918 | SACM; SFCM |
--- | Midi: 1907 PO-Midi: 1934 SNCF: 1938 |
???? |
|
|
4201 to 4353 | 140-201 to 351 | 4-140.D.201 to 351 then 4-140.G.2201 to 2353 |
Baldwin | --- | Midi: 1919 PO-Midi: 1934 SNCF: 1938 |
Circa 1955 |
|
|
4101 to 4140 | 140-801 to 840 | 4-140.E.801 to 840 then 4-140.H.801 to 840 |
ALCO | --- | Midi: 1919 PO-Midi: 1934 SNCF: 1938 |
Circa 1948 |
|
Tank Locomotives[] | ||||||||
|
401 to 406 | 020-401 to 403 | 4-020.TA.401 to 403 | Gouïn & Co. | --- | Midi: 1855 PO-Midi: 1934 SNCF: 1938 |
1957 | |
|
373 and 374 | 030-373 and 374 | 4-030.TA.373 and 374 | Fives-Lille | --- | Médoc: 1883 Midi: 1912 PO-Midi: 1934 SNCF: 1938 |
???? |
Locomotives originally built for the Médoc Railway, they have been incorporated in the Midi's effectives in 1912. |
|
302 to 345 | 032-308 to 344 | 4-032.TA.312, 316 and 329 | Kessler; Maschinenfabrik Esslingen; Gouïn & Co. |
--- | Midi: 1855 PO-Midi: 1934 SNCF: 1938 |
1940 |
|
|
421 to 424 | 040-421 to 424 | 4-040.TA.421 to 424 | Schneider & Co. | --- | Midi: 1892 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
4501 to 4518 | 240-501 to 518 | 4-240.TA.501 to 518 | SACM | --- | Midi: 1913 PO-Midi: 1934 SNCF: 1938 |
???? | |
|
5001 to 5047 | 050-001 to 047 | 4-050.TB.1 to 47 | Schwartzkopff; SACM |
--- | Midi: 1908 PO-Midi: 1934 SNCF: 1938 |
???? |
|
Southeastern Region (5)[]
PLM[]
| Image | Former PLM Numbers | SNCF Numbers | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|
Tender Locomotives[] | |||||||
|
2971 to 2990 | 5-221.A.1 to 20 |
|
--- | PLM: 1906 SNCF: 1938 |
??? | |
|
2971 to 2990 | 5-221.B.8, 11, 12, 14, 15, 19 and 20 |
|
|
PLM: 1936 SNCF: 1938 |
1946 |
|
|
1401 to 1510 then 3.A.1 to 30 |
5-030.A.1 to 30 |
|
--- | RLR: 1857 GCR: 1855 PL: 1854 PLM: 1857 SNCF: 1938 |
Circa 1950 | |
|
1518 to 2457 then 3.B.2 to 171 |
5-030.A.1 to 30 |
|
--- | GCR:??? PL: 1860 PLM: 1857 SNCF: 1938 |
Circa 1950 | |
|
3001 to 3140 then 31.A.1 to 140 |
5-031.A.6 to 136 | Wiener-Lokal-Fabrik, Wiener Neustädter Lokomotivfabrik |
--- | PLM: 1881 SNCF: 1938 |
??? | |
|
1 to 60 then 130.A.1 to 60 |
5-130.A.1 to 136 | --- | Paris Workshops, Oullins Workshops, Arles Workshops |
PLM: 1913 SNCF: 1938 |
??? | |
|
3401 to 3735 then 230.A.1 to 327 |
5-230.A.1 to 327 | Fives-Lille, Schneider, Société Franco-Belge, Société Française de Constructions Mécaniques (SFCM), Cockerill, Florisdorf, Société de Construction des Batignolles, Borsig. |
--- | PLM: 1900 SNCF: 1938 |
??? | |
|
2601 to 2760 then 230.B.1 to 160 |
5-230.B.1 to 160 | Schneider, Société Franco-Belge, Fives-Lille, Henschel & Sohn, Hainaut. |
--- | PLM: 1905 SNCF: 1938 |
Circa 1960 | |
|
2430 to 2599 then 230.C.1 to 170 |
5-230.C.5 to 170 | Arles Workshops, Société Franco-Belge, Société Française de Construction Mécanique (SCFM), Schneider, Schneider & Sohn. |
--- | PLM: 1913 SNCF: 1938 |
Circa 1960 | |
|
230.E.93 | 5-230.E.93 | --- | --- | PLM: 1937 SNCF: 1938 |
??? | |
|
230.F.14 to 136 | 5-230.F.14 to 136 | --- | Oullins Workshops | PLM: 1937 SNCF: 1938 |
??? | Former PLM 230.B locomotives rebuilt. |
|
6172 to 6191, then 6051 to 6070, then 231.B.1 to 20 |
5-231.B.1 to 20 | Société Batignolles-Châtillon | Oullins Workshops | PLM: 1913 SNCF: 1938 |
1947 | |
|
6001, then 231.C.1 |
5-231.C.1 | Paris Workshops | --- | PLM: 1909 SNCF: 1938 |
1947 | Prototype |
|
6001 to 6050, then 6201 to 6285 then 231.C.2 to 86 |
5-231.C.2 to 86 | Henschel & Sohn; Ateliers et Chantiers de la Loire (ACL); SACM. |
--- | PLM: 1912 SNCF: 1938 |
1949 | Every engines rebuilt to form the class 5-231.K2 to 86. |
|
6301 to 6480, then 230.D.1 to 230. |
5-231.D.1 to 230 | Schneider; Compagnie des forges et aciéries de la marine d'Homécourt; Société Franco-Belge. |
--- | PLM: 1921 SNCF: 1938 |
1957 | 161 engines rebuilt as 5-231.G locomotives, and 69 non-rebuilt locomotives. |
|
231.E.1 to 71 | 5-231.E.1 to 71 | Paris Workshops; Henschel & Sohn; SFCM. |
Oullins Workshops; C.G.C.E.M; Aciéries du Nord |
PLM: 1909 SNCF: 1938 |
1952 |
|
|
231.G.2 to 285 | 5-231.G.2 to 285 | --- | Oullins Workshops; C.G.C.E.M. |
PLM: 1933 SNCF: 1938 |
1966 | 161 locomotives from the class 231.D.1 to 230 and the rest from the class 231.F.2 to 285. |
|
231.H.141 | 5-231.H.1 to 30 | --- | Oullins Workshops | PLM: 1933 SNCF: 1938 |
1966 | 1 engine rebuilt from the class 231.F.2 to 285, 17 engines rebuilt from the class 5-231.E.1 to 71 and 12 engines from the class 231.B.1 to 20. |
|
231.I.17 | 5-231.I.17 | --- | Oullins Workshops. | PLM: 1935 SNCF: 1938 |
1946 |
|
|
231.K.2 to 86 | 5-231.K.2 to 86 | --- | Oullins Workshops | PLM: 1933 SNCF: 1938 |
1953 |
|
|
2501 to 2540, then 4001 to 4159, then 4.A.1 to 149 |
5-040.A.1 to 149 | Graffenstaden, Paris Workshops, SACM, Oullins Workshops |
--- | PLM: 1862 SNCF: 1938 |
Circa 1950 | One engine preserved, SNCF no. 040.A.51 |
|
3211 to 3362, then 4.B.1 to 112 |
5-040.B.1 to 112 | Schneider, Fives-Lille, Cail, Société de Construction des Batignolles, Société Franco-Belge |
--- | PLM: 1892 SNCF: 1938 |
Circa 1950 | One engine preserved, SNCF no. 040.B.9 |
|
4501 to 4640, then 4.C.1 to 131 |
5-040.C.1 to 131 | Paris Workshops, Oullins Workshops, Arles Workshops |
--- | PLM: 1892 SNCF: 1938 |
Circa 1950 | |
|
4501 to 4640, then 4.D.1 to 10 |
5-040.D.1 to 10 | Paris Workshops, Oullins Workshops, Arles Workshops |
--- | PLM: 1892 SNCF: 1938 |
Circa 1950 | |
|
4201 to 4264, then 4.E.1 to 64 |
5-040.E.1 to 64 | Schichau; Hanomag; Vulcan; Jung; Schwartzkopff; SACM; Linke-Hofmann; Borsig; Orenstein & Koppel; Humbolt. |
--- | PLM: 1919 SNCF: 1938 |
1945 |
|
|
4295 to 4499, then 140.B.1 to 205 |
5-140.B.1 to 205 | Arles Workshops, Berliner Maschinenbau AG, Henschel & Sohn, Ateliers de Construction de la Meuse, Fives-Lille, Société Franco-Belge, Société Française de Construction mécanique (SFCM) |
--- | PLM: 1911 SNCF: 1938 |
??? | |
|
4175 to 4194, then 140.D.1 to 20 |
5-140.D.1 to 205 | Humbolt | Arles Workshops, Oullins Workshops |
PLM: 1912 SNCF: 1938 |
??? | |
|
3741 to 3800, 3831 to 3895 and 3936 to 3975, then 140.E.1 to 213 |
5-140.E.1 to 213 | Arles Workshops, Oullins Workshops, Atelliers & Chantiers de la Loire, Schneider, Société Franco-Belge, Société des Batignolles, Société du hainaut, Société Française de Construction Mécanique (SFCM) |
--- | PLM: 1913 SNCF: 1938 |
??? | |
|
401 to 969, then 140.G.1 to 699 |
5-140.G.1 to 699 | Baldwin Locomotive Works | --- | PLM: 1919 SNCF: 1938 |
Circa 1955 | |
|
971 to 999, then 140.H.1 to 29 |
5-140.H.1 to 29 | Alco | --- | PLM: 1921 SNCF: 1938 |
??? | |
|
140.A.1 to 170 | 5-140.J.1 to 170 | Schneider, Forges et Aciéries de la Marine et d’Homécourt |
--- | PLM: 1923 SNCF: 1938 |
1964 | |
|
140.K.1 to 35 | 5-140.K.1 to 35 | Nasmith Wilson C° Ltd de Manchester, North British de Glasgow |
--- | PLM: 1925 SNCF: 1938 |
Circa 1945 | Transferred to the Eastern Region after 1945. |
|
140.F.1 to 100 | 5-140.L.1 to 100 | Société des Batignolles, Five-Lilles, Société Française de Construction Mécanique (SFCM) |
--- | PLM: 1925 SNCF: 1938 |
??? | |
|
1001 to 1012, then 141.A.1 to 12 |
5-141.A.1 to 12 | Société Française de Construction Mécanique (SFCM) | --- | PLM: 1913 SNCF: 1938 |
??? | |
|
1013 to 1129, then 141.B.1 to 117 |
5-141.B.1 to 117 | Baldwin Locomotive Works | --- | PLM: 1917 SNCF: 1938 |
??? | |
|
1130 to 1369, then 141.C.1 to 680 |
5-141.C.1 to 680 | Winterthur Locomotive Workshops, Schneider, Batignolles-Châtillon, Société de Construction des Batignolles, Société Franco-Belge, Ateliers et Chantiers de la Loire, SFCM, Fives-Lille, Forges et Aciéries de la Marine et d’Homécourt à Saint Chamond, SNF. |
--- | PLM: 1919 SNCF: 1938 |
??? | |
| --- | 5-141.D.1 to 680 | --- | --- | SNCF:Early 1940s | ??? | 141.C locomotives receiving a water preheater. | |
| --- | 5-141.E.46 to 367 | --- | --- | SNCF:Early 1940s | ??? | 141.C or D rebuilt locomotives. | |
| --- | 5-141.F.1 to 680 | --- | --- | SNCF: Early 1940s | ??? | 141.C or D rebuilt locomotives. | |
|
4701 to 4982, then 240.A.1 to 282 |
5-240.A.1 to 282 | Société de Construction des Batignolles, Oullins Workshops, Arles Workshops, Schneider, SFCM, Société Franco-Belge. |
--- | PLM: 1907 SNCF: 1938 |
1952 | |
|
241.A.1 to 145 | 5-241.A.1 to 145 | Société de Construction des Batignolles, Oullins Workshops, Arles Workshops, Schneider, SFCM, Société Franco-Belge. |
--- | PLM: 1925 SNCF: 1938 |
1953 | |
|
241.C.1 | 5-241.C.1 | Schneider | --- | PLM: 1930 SNCF: 1938 |
1960 | This locomotive would be the prototype of the future SNCF class 241.P.1 to 35 |
| 241.D.17 to 141 | 5-241.D.4 to 142 | --- | Oullins Workshops, Capelette at Marseilles |
PLM: 1932 SNCF: 1938 |
1953 | Former 241.A locomotives rebuilt. | |
|
--- | 5-241.E.27 | --- | Oullins Workshops, Capelette at Marseilles |
SNCF: 1941 | 1953 | Former 241.A.27 after rebuilt. |
|
5101 to 5150, then 5.A.1 to 50 |
5-050.A.1 to 50 | Staats-Eisenbahn-Gesellschaft | --- | PLM: 1919 SNCF: 1938 |
1956 | Austrian design steam locomotives, identical to the class 80 of the Austrian railways. |
|
5001 to 5070, then 5.B.1 to 70 |
5-050.B.1 to 70 | Henschel & Sohn; Hanomag; Borsig; |
--- | PLM: 1921 SNCF: 1938 |
1945 |
|
|
151.A.1 to 10 | 5-151.A.1 to 10 | Schneider | --- | PLM: 1932 SNCF: 1938 |
1949 | Locomotives transfered to the Eastern Region in 1949. |
Tank Locomotives[] | |||||||
|
5601 to 5603 then 7038 to 7040 then 7001 to 7005 |
5-020.TA.4 and 5 | Fives-Lille; H.K. Porter, Inc. |
--- | PLM: 1906 SNCF: 1938 |
???? | |
|
5701 to 5730 then 130.AT.1 to 30 |
5-130.TA.2, 9 and 11 | Hohenzollern; Orenstein & Koppel; Henschel & Sohn; Union Giesserei Königsberg; Jung; Hanomag. |
--- | PLM: 1919 SNCF: 1938 |
1946 |
|
|
5751 to 5773 then 130.BT.1 to 23 |
5-130.TB.4, 5 , 7, 16 to 18 and 23 | Union Giesserei Königsberg; Hohenzollern; Vulcan; Borsig. |
--- | PLM: 1919 SNCF: 1938 |
1953 |
|
|
5301 to 5350 then 232.AT.1 to 50 |
5-232.TA.1 to 50 | UMH; Société Anonyme des Chantiers de la Loire; SFCM |
--- | PLM: 1913 SNCF: 1938 |
1957 | |
|
5501 to 5545 then 232.BT.1 to 45 |
5-232.TB.1 to 45 | Hanomag; Forges Usines et Fonderies Haine-Saint-Pierre; SFCM |
--- | PLM: 1908 SNCF: 1938 |
1958 | |
|
7701 to 7750 then 4.AM.1 to 50 |
5-040.TA.1 to 50 | --- | Oullins Workshops; Arles Workshops; Decauville Workshops |
PLM: 1922 SNCF: 1938 |
???? |
|
|
4.BM.1 to 84 | 5-040.TB.1 to 84 | --- | Schneider & Co. | PLM: 1924 SNCF: 1938 |
???? |
|
|
4.BM.1 to 84 | 5-040.TB.1 to 84 | --- | Arles Workshops; CGCEM |
PLM: 1927 SNCF: 1938 |
1965 |
|
|
242.AT.1 to 120 | 5-242.TA.1 to 120 | SNF; SFCM; Batignolles-Châtillon; Schneider & Co. |
--- | PLM: 1927 SNCF: 1938 |
1968 |
|
|
242.BT.1 to 31 | 5-242.TB.1 to 31 | Batignolles-Châtillon; Schneider & Co. |
--- | PLM: 1929 SNCF: 1938 |
1938 |
|
|
242.CT.1 to 50 | 5-242.TC.1 to 50 | Batignolles-Châtillon | --- | PLM: 1930 SNCF: 1938 |
1967 | |
|
242.DT.1 to 50 | 5-242.TD.1 to 50 | Batignolles-Châtillon | --- | PLM: 1931 SNCF: 1938 |
1961 | |
| --- | 5-242.TE.1 to 31 | --- | Oullins Workshops | SNCF: 1938 | 1959 |
| |
| --- | 5-242.TF.4 | --- | Oullins Workshops | SNCF: 1941 | 1948 |
| |
|
5801 to 5831 then 050.AT.1 to 31 |
5-050.TA.1 to 31 | Schwartzkopff | --- | PLM: 1919 SNCF: 1938 |
1956 |
|
Post-grouping SNCF steam locomotives[]
| Image | Allocation Region(s) | SNCF Number(s) | Locomotive Builder(s) | Locomotive Rebuilder(s) | Dates of comission (on the region) | Date of final withdrawn (on the region) | Note |
|---|---|---|---|---|---|---|---|
Tender locomotives[] | |||||||
|
|
3-030.W.1 to 20, 28 and 41 to 45 | GWR Swindons Workshops | --- | 1940 | Around 1950 |
|
|
|
1-230.F.600, 607, 641 and 694 | Maschinenbau-Gesellschaft Karlsruhe; Schichau; Henschel & Sohn; Schwartzkopff |
--- | 1945 | Around 1961 |
|
|
|
2-232.P.1 | SACM; Fives-Lille; Schneider & Co.; SLM Winterthur |
--- | 1939 | 1949 |
|
|
5-232.Q.1 | Schneider & Co. | --- | 1940 | 1948 |
| |
|
|
2-232.R.1 to 3 | SACM; La Chapelle Workshops |
--- | 1940 | 1961 |
|
|
|
2-232.S.1 to 4 | SACM; La Chapelle Workshops |
--- | 1940 | 1961 |
|
|
|
2-232.U.1 | SACM; Corpet-Louvet |
--- | 1949 | 1961 |
|
|
|
1-040.B.990 | Henschel & Sohn | --- | 1945 | Around 1955 |
|
|
|
|
???? | --- | 1945 | Around 1960 |
|
|
|
1, 2 and 5-140.U.1 to 121 | ALCO; Baldwin Locomotive Works; Lima Locomotive Works |
--- | 1945 | 1946 |
|
|
|
3 and 5-140.W.? to ??? | North-British locomotive company limited; Vulcan Foundry |
--- | 1944 | 1947 |
|
|
|
1, 3 and 5-141.P.1 to 318 | Compagnie des forges et aciéries de la Marine et d'Homécourt; Schneider & Co.; Société Franco-Belge; ANF Blanc-Misseron; Batignolles-Châtillon; Fives-Lille; SACM |
--- | 1942 | 1969 |
|
|
|
1, 2, 3, 4, 5 and 6-141.P.1 to 318 | Compagnie des forges et aciéries de la Marine et d'Homécourt; Schneider & Co.; Société Franco-Belge; ANF Blanc-Misseron; Batignolles-Châtillon; Fives-Lille; SACM |
--- | 1945 | 1974 |
|
|
|
5-240.P.1 to 25 | --- | Tours Workshops | 1940 | 1953 |
|
|
|
1, 2, 3, 5 and 6-241.P.1 to 35 | Schneider & Co. | --- | 1948 | 1969 |
|
|
|
3-242.A.1 | --- | ??? | 1943 | 1961 |
|
|
|
1-050.B.601 to 790 | ???? | --- | 1945 | Around 1955 |
|
|
|
1 and 2-150.P.1 to 115 | ANF Blanc-Misseron; SACM at Graffenstaden; Aciéries du Nord |
--- | 1938 | 1968 |
|
|
???? | 150.W.? to ??? | North-British locomotive company limited | --- | 1945 | 1951 |
|
|
|
1 and 2-150.X.819 et 1995 then 1 and 2-150.X.1 to 226 and 819, 838, 928, 929, 941, 942, 962, 1083, 1089, 1092, 1110, 1801 and 1803 |
Schneider & Co.; SFCM; Batignolles-Châtillon; Fives-Lille |
--- | 1944 | 1965 |
|
|
|
1-150.Y.1 to 17, 123, 244, 1306, 1593, 1637, 1657, 1673, 1677, 1678, 1993, 3125, 3149, 3483, 3536, 3595, 3697, 3811, 5687, 6178, 6848, 6982, 7283, 7444, 7601 and 7604 |
|
--- | 1945 | 1959 |
|
|
|
1-150.Z.11, 95, 151, 277, 388, 410, 482, 799, 893, 926, 1018, 1151, 1264, 2025, 2058, 2059, 2063, 2123, 2135, 2205, 2217, 2236, 2255, 2270, 2547, 2578, 2681, 2802, 2871, 3094, 3095, 3130, 3134, 3137 |
|
--- | 1945 | 1957 |
|
|
|

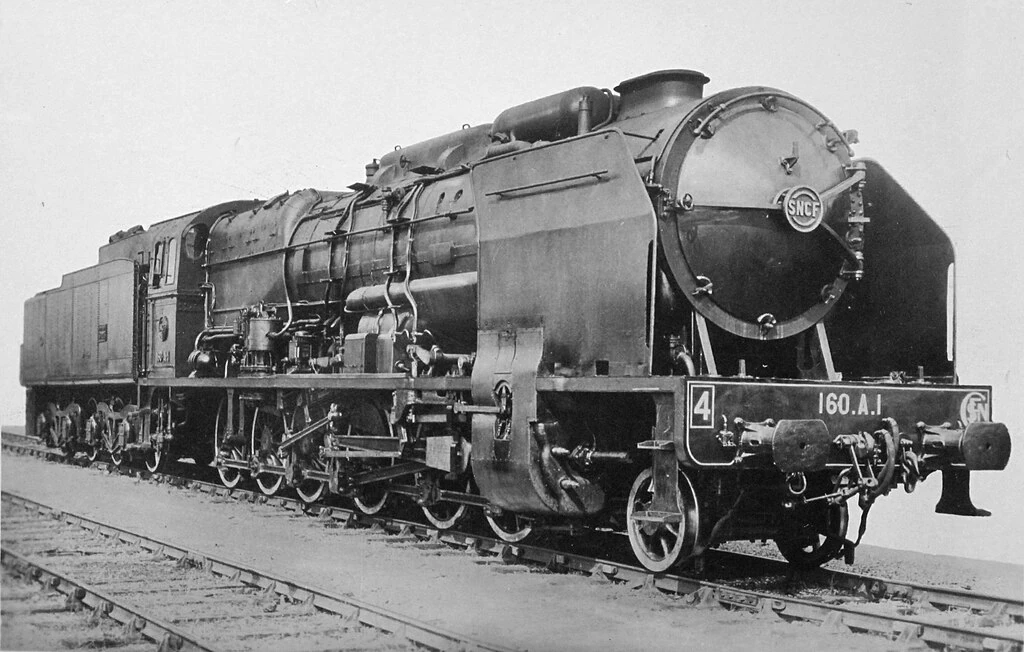

4-160.A.1 | --- | Tours Workshops | 1940 | 1954 |
|
Tank locomotives[] | |||||||
|
3-221.TQ.1 | Compagnie Générale de Construction de Loc-Société Dabeg | --- | 1949 | 1954 |
| |
|
|
1, 2, 3, 5 and 6-030.TU.1 to 77 | Davenport Locomotives Works; H. K. Porter; Vulcan Iron Works |
--- | 1945 | 1972 |
|
|
|
2 and 3-030.TW.21 to 27 and 42 to 44 | William Beardmore & Co; Hunslet |
--- | 1940 | 1948 |
|
|
|
4-030.TX.1 to 9 | Henschel & Sohn | --- | 1945 | 1965 |
|
|
|
1-131.TX.402, 404, 406 and 493 |
|
--- | 1945 | 1952 |
|
|
1, 3, 4 and 5-040.TX.1 to 67 |
|
--- | 1945 | 1969 | ||
|
|
2-050.TQ.1 to 35 |
|
--- | 1948 | 1970 |
|
|
2, 3 and 5-050.TX.1 to 38 |
|
--- | 1945 | 1969 |
| |
|
|
2-151.TQ.1 to 22 |
|
--- | 1940 | 1968 |
|
