Prussian T 14

Technical specifications

Type

Mikado

Designer(s)

Heinrich Lübke

Manufacturer(s)

Union Gießerei Königsberg;
Henschel & Sohn;
Hohenzollern;
Hanomag.

Build date

(1914-1918)

Total produced

589

Classification

Whyte: 2-8-2;
French classification: 141;
Swiss classification: 4/6;
UIC: 1D1

Wheel arrangement

oOOOOo

Axles

6

Dia. of Drivers

1.35m (4.42ft)

Rail gauge

1,435 mm (4 ft 8+1⁄2 in)

Valve gear type

Heusinger

Motion

Outside

Boiler pressure

12 bars (174 psi)

Superheater

50.28m² (538,5 ft²)

Firegrate area

2.56m² (27.5 ft²)

Fuel type

Coal

Fuel capacity

Coal: 4 tons (3.93 UK tons; 4.4 US tons);
Water: 11m3 (2,421.5 UK Gal; 2,906 US Gal)

Heating area

129.01m² (1,388.6 ft²)

Performance figures

Maximum speed

65Km/h (40.3mph)

Service information

Entered service

(1914-1918)

Operator(s)

KPEV (1914-1920);
DRG (1920-1945);
DR (1945-1971);
DB (1945-1960);
Saareisenbahnen (1919-1935)
EL (1915-1919);
AL (1919-1938);
Est (1919-1938);
État (1919-1938);
SNCF (1938-1958);
Etat Belge (1919-1926);
SNCB (1926-????);
Dantzig Railways (1919-????);
PKP (1919-????);

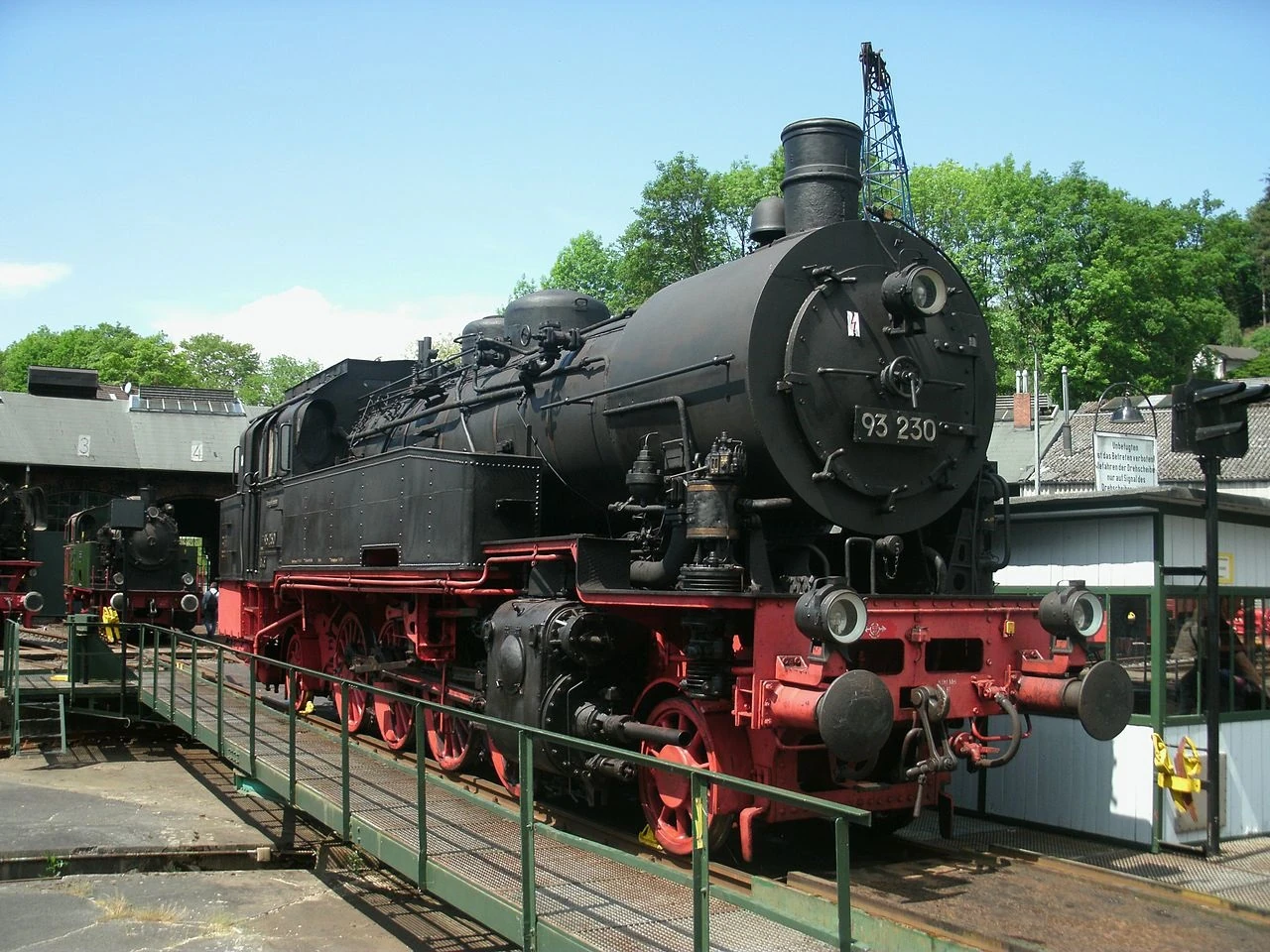

The Prussian T 14 (later DRG 93-001 to 459) is a class of 2-8-2 Mikado type tank steam locomotives. They were designed by the prussian Chief Mechanical engineer Robert Garbe, and built for the Königlich Preußische Eisenbahn-Verwaltung (The Royal Prussian State Railways), between 1914 and 1918. Their task consisted of pulling goods trains for the Berliner metropolitan network. After WWI many locomotives find use on the network of other countries.
