Pennsylvania Railroad Class D4

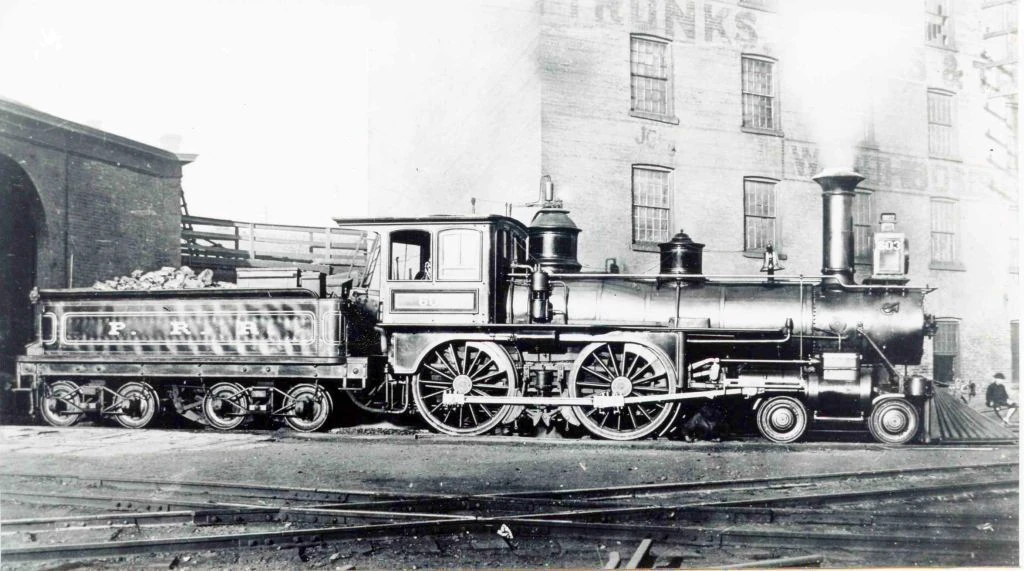

The Pennsylvania Railroad's steam locomotive class D4 (formerly Class C (anthracite), pre-1895) were a series of anthracite-burning 4-4-0 locomotives intended for general passenger and freight service on the PRR's New Jersey lines, constructed at the railroad's own Altoona Works (now owned by Norfolk Southern) during 1873–1890 for the Pennsylvania Railroad a total of thirty-seven were built.

This design differed from the Class C (later D3) mainly in its longer firebox to burn slower-burning anthracite coal. Like all the early standardized 4-4-0s on the PRR, the Class C (Anthracite) had a wagon-top boiler with steam dome and a firebox between the two driving axles.

These were classified Class CA (Anthracite) or later D4a, and handled this traffic until 1881, when they were replaced by heavier power, and were sold for scrap.

Trivia

• These engines shared many parts with other standard classes.
• In 1875, fifteen locomotives were either built or converted (sources differ) with 68-inch (1,727 mm) drivers for fast passenger service on the New Jersey lines.
