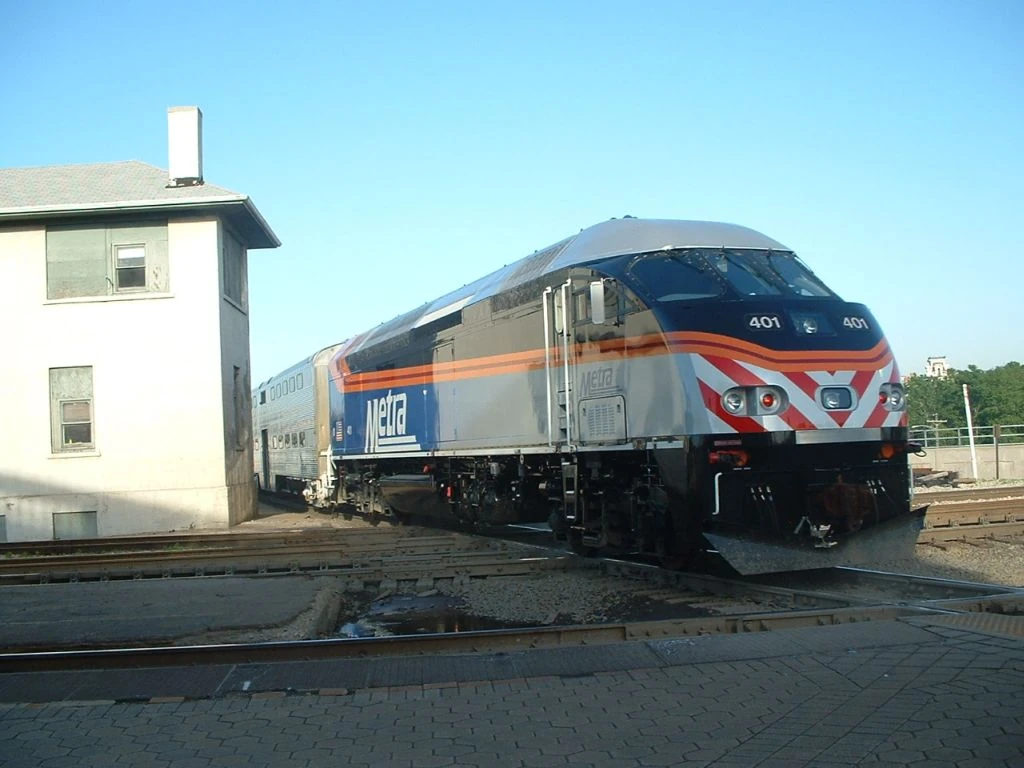

A freashly outshopped MP36PH-3S, now an MP36PH-3C.
The MP36PH-3S was the first type of locomotive released in MPI's MPXpress commuter locomotive catalog. The first of these locomotives were delivered in 2002, to Metra. These locomotives initially had problems such as prime mover failures and the wieght was to heavy for the units to operate on any UP line. That is why these units are relegated to the Rock Island District and Milwaukee District lines. The 27 Metra units have settled down and are very reliable. The "S" in the name denotes that the units have a crank shaft-driven static inverter to supply HEP. The unit feature an EMD 645 based prime mover rated at 3,600 hp. The 16-645F3B is EPA Tier 1 compliant. Metra is the only operator of MP36PH-3S's. Metra has equipped their MP36's with a Gyralite. Metra has equipped the majority of their MP36s with Nathan AirChime K5LA horns. Many others are equipped with Nathan AirChime P5A horns.
In November 2012 Metra announced plans to convert all of their MP36PH-3S locomotives to the MP36PH-3C standard in an effort to reduce noise pollution and boost fuel efficiency. Metra's MP36PH-3C fleet consists of locomotives numbered 401-427. These locomotives have an extended radiator section to cool the new Caterpillar generators. As of 2019 Metra Was Painting the Metra MP36PH-3C Roofs from Silver to Black. The Locomotives expected to all have black roofs in by Early 2024
Sources
http://www.motivepower-wabtec.com/locomotives/commuter/mpxpress.php
