The M-10000 was an early American streamlined passenger trainset that operated for the Union Pacific Railroad from 1934 until 1941. It was the first streamlined passenger train to be delivered in the United States, and the second to enter regular service after the Pioneer Zephyr of the Chicago, Burlington and Quincy Railroad.

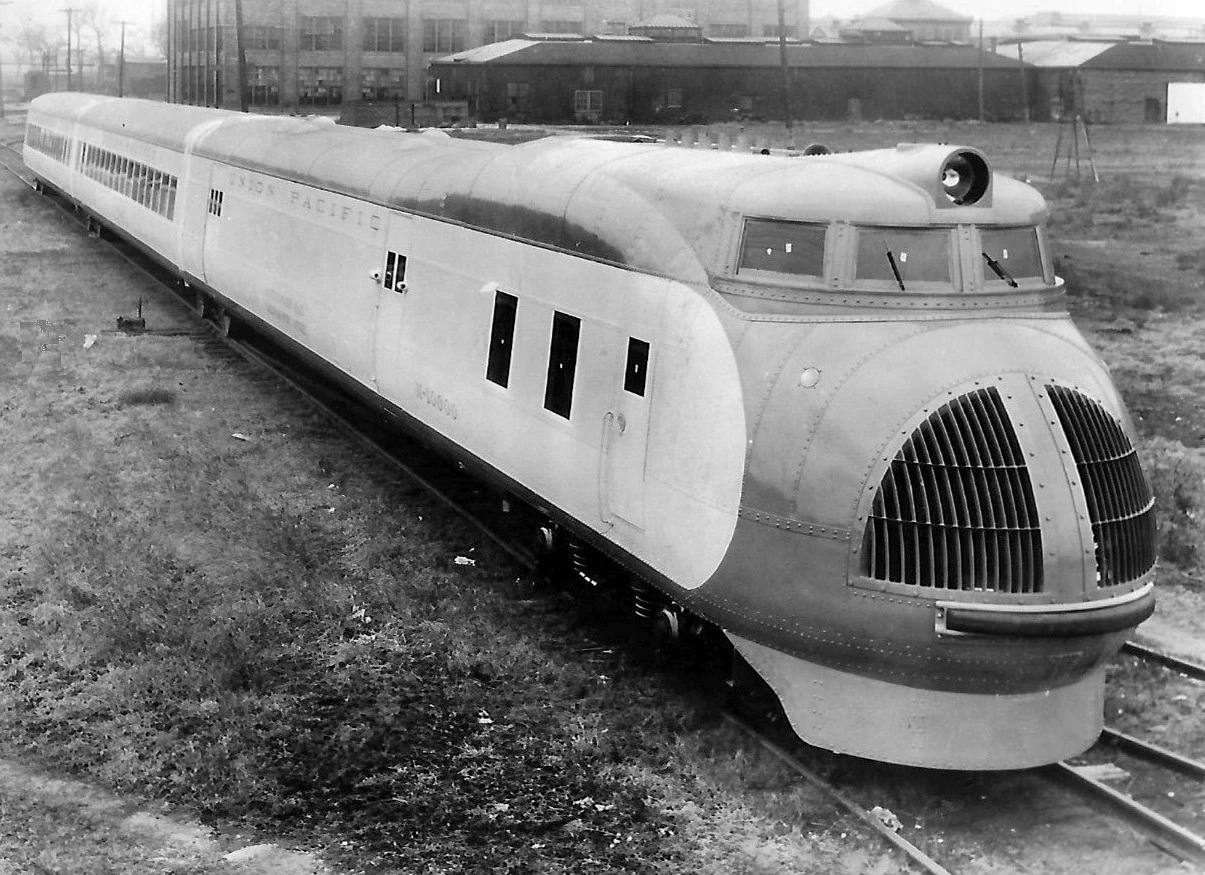

Union Pacific Streamliners M-10000 and M-10001 in 1934
Development[]
The M-10000 car design built upon the efforts of William Bushnell Stout, an early designer of all-metal airplanes, who adapted fuselage design ideas to the Railplane (not to be confused with the Bennie Railplane), a lightweight self-propelled railcar built by Pullman-Standard in 1932. The tapered car cross-section, lightweight tubular aluminum space frame construction, and Duralumin skin of the Railplane were carried over into the M-10000 design. The performance of the Railplane in testing drew the attention of Union Pacific, who sought the services of Pullman-Standard in building a small, lightweight streamlined trainset for mainline service. Union Pacific ordered M-10000 from Pullman in May 1933 at a cost of $230,997, following an analysis of passenger traffic that concluded new, more cost effective equipment than heavyweight passenger cars and steam locomotives was required for maintaining profitability, especially on low-traffic routes. The streamlined body was developed from a series of wind tunnel tests that were carried out at the University of Michigan.
The Electro-Motive Corporation (EMC) developed the internal combustion-electric propulsion system powered by a 600 hp spark-ignition engine. As was their practice as a system engineering firm at the time, they contracted manufacture of the components of their systems to primary equipment manufacturers. General Motors' Cleveland subsidiary, the Winton Engine Corporation, provided the prime mover. The air brake compressor, main generator, traction motors and control equipment were manufactured by the General Electric Company. Skepticism that development efforts for diesel engines underway in the early 1930s would provide timely release of an engine adequate for high speed rail service led to use of a spark-ignition distillate engine. Trucks were strongly influenced by German passenger bogie design, as investigated by Union Pacific chief engineer A.H. Fetters.
Design[]
The M-10000 was a three-car trainset, with a combined power/baggage/railway post office car and two trailing passenger coaches. The power car measured 71 feet 9 inches (21.87 m) long, followed by coaches measuring 58 feet (18 m) and 71 feet (22 m). Including the space between cars, the trainset had a total length of 204 feet 5 inches (62.31 m), with a width of 9 feet 3 inches (2.82 m) and a height of 11 feet 11.5 inches (3.645 m) at the cab; the coaches were 1 foot (0.30 m) shorter. The trainset was articulated using shared Jacobs bogies to reduce weight, making the train operate as one integrated unit rather than as a separable locomotive and cars. The integrated-body-and-frame construction using aluminum reduced the required structural weight to a fraction of that for conventional body-on-frame railcars, and the trainset's total weight of 85 tonnes (85,000 kg) was about the same as a single passenger coach of the time. The power car featured an elevated "turret cab" behind a nose featuring a large vertically-divided air intake grille formed by parabolic arches. On the roof of the cab were a headlight and a vertical marker light. The train was powered by a single 600 horsepower (450 kW) spark-ignited distillate-burning engine built by the General Motors subsidiary Winton Engine Corporation driving a generator that powered two traction motors on the leading truck of the power car. The two passenger coaches each had a capacity of 60 people; the last coach also included a small galley at the rear end to prepare meals that were served at passengers' seats. Original livery consisted of Armour Yellow sides with a Leaf Brown nose, roof, rear, and lower panels, with red striping separating the two main colors. The nose was subsequently painted Armour Yellow consistent with other early Union Pacific streamliners.
Trivia[]
- The M-10000 featured a turret cab, an inward-slanting Duralumin body with a nose formed of parabolic arches, and large nose air intakes on each side of the centerline.
- The prime mover was a 600 hp (450 kW) Winton 191-A V12 distillate engine.
- This engine design was unrelated to the later 201 or 201A Winton diesels.
- There were three cars: a driving, power and baggage car at the front; and two passenger cars.
- The 204 ft (62 m) long, 85-short-ton (77 t) train was fully articulated, with trucks shared between cars. The front truck carried one General Electric traction motor per axle, and was the only one powered. The train was painted in Armour Yellow with Leaf Brown roof and undersides. Later, the area around the front air intake was also painted yellow. Dividing lines of red separated the colors.
