A B17 passing a station in Yorkshire , 1959.
The London and North Eastern Railway (LNER) Class B17, also known as "Sandringham" or "footballer" class was a class of 4-6-0 steam locomotive designed by Nigel Gresley for hauling passenger services on the Great Eastern Main Line. In total 73 were built.
By 1926, the former GER B12 class locomotives were no longer able to cope with the heaviest express passenger trains on the Great Eastern Main Line between London and Cambridge, Ipswich and Norwich. Yet Gresley was unable to use his larger classes due to severe weight restrictions on the line. The requirement for a lightweight yet powerful 4-6-0 proved to be difficult to achieve.
Design[]
After several unsuccessful attempts by Doncaster Works to satisfy Gresley's specification, the contract for the detailed design and building of the class was given to the North British Locomotive Company in 1927. They used several features from a batch of A1 Pacifics they had built in 1924. The cab, cylinders, and motion had all been copied directly or slightly modified. Most of the boiler design was taken from the LNER Class K3 2-6-0 and LNER Class O2 2-8-0 designs. Darlington Works provided drawings for the bogies, and Stratford Works designs for the GE-type 3,700-imperial-gallon (17,000 l; 4,400 US gal), 4-long-ton (4.1 t) tender.
Due to weight restrictions it proved to be impossible for all three cylinders to drive the middle coupled axle, the design used divided drive with the middle cylinder driving the leading axle and was positioned forward above the front bogie. The cylinder remained horizontal, rather than the usual LNER practice of middle cylinder offsetting, which left room for a Gresley conjugated gear set behind the cylinders rather than the usual front position. The LNER also ordered some modifications, including an increase in cylinder size from 17 in (432 mm) to 17 1⁄2 in (444 mm), and a lengthening of the firebox by 5 in (127.0 mm) with longer frames, and lighter springs. The design continued to prove problematic and the LNER eventually cancelled a penalty clause in the original contract. The first locomotive, No. 2802 Walsingham was delivered 30 November 1928, thirteen weeks late.
Construction[]
.png){kind=link}
A B17 passing, 1953.
Ten locomotives were built by the North British Locomotive Company (works nos. 23803-12) during November and December, which were allocated the running numbers 2800-9. Five further orders were placed with Darlington Works between December 1928 and March 1935 for a further fifty-two locomotives to be delivered between August 1930 and June 1936. A final batch of eleven were ordered from Robert Stephenson and Company in February 1936 (works nos. 4124-34) for delivery between January and July 1937; resulting in a total of 73 B17s built.
Sub-classes[]
The first ten by the North British Locomotive Company were designated B17, later B17/1. The second and third batches had boilers supplied by Armstrong Whitworth and different springing and became B17/2. The next two batches had different springing and were designated B17/3. However, as the locomotives passed through the works the original springs were replaced by those of the later design and in 1937 the three sub-classes were merged into B17/1. The final Darlington batch introduced in 1936, and those built by Robert Stephenson and Company had 4,200-imperial-gallon (19,000 l; 5,000 US gal), 7.5-long-ton (7.6 t) tenders and were intended for use in the North Eastern area of the LNER: these were designated B17/4.
In September 1937 two locomotives (Nos. 2859 Norwich City and 2870 Tottenham Hotspur) were streamlined in the manner of the LNER Class A4s, renamed East Anglian and City of London and intended for use on the East Anglian train. They were designated B17/5. However, the streamlining was cladding for publicity purposes only and had little effect on the overall speed of the locomotive. By 1951 both engines had been stripped of the streamlining altogether.
Between 1943 and 1957 most of the surviving members of the class were rebuilt with a LNER 100A boiler with increased pressure and were designated B17/6.
Rebuilds[]
Ten B17s were rebuilt by Edward Thompson as 2-cylinder locomotives with a LNER 100A boiler, between 1945 and 1949, becoming the Class B2. No more were rebuilt because of the success of the Thompson's B1 class.
New Build[]
A brand new B17 class LNER No. 61673 Spirit of Sandringham is under construction.
References[]
- Hillier-Graves, Tim. GRESLEY’S MASTER ENGINEER, BERT SPENCER: A Career in Railway Engineering and Design. 2023.
Summary table[]
| Image | LNER
No. |
BR
No. |
Original Name (Rename(s)) | Date built | Date rebuilt | Rebuilt
as |
Date
withdrawn |
Notes |
|---|---|---|---|---|---|---|---|---|
|

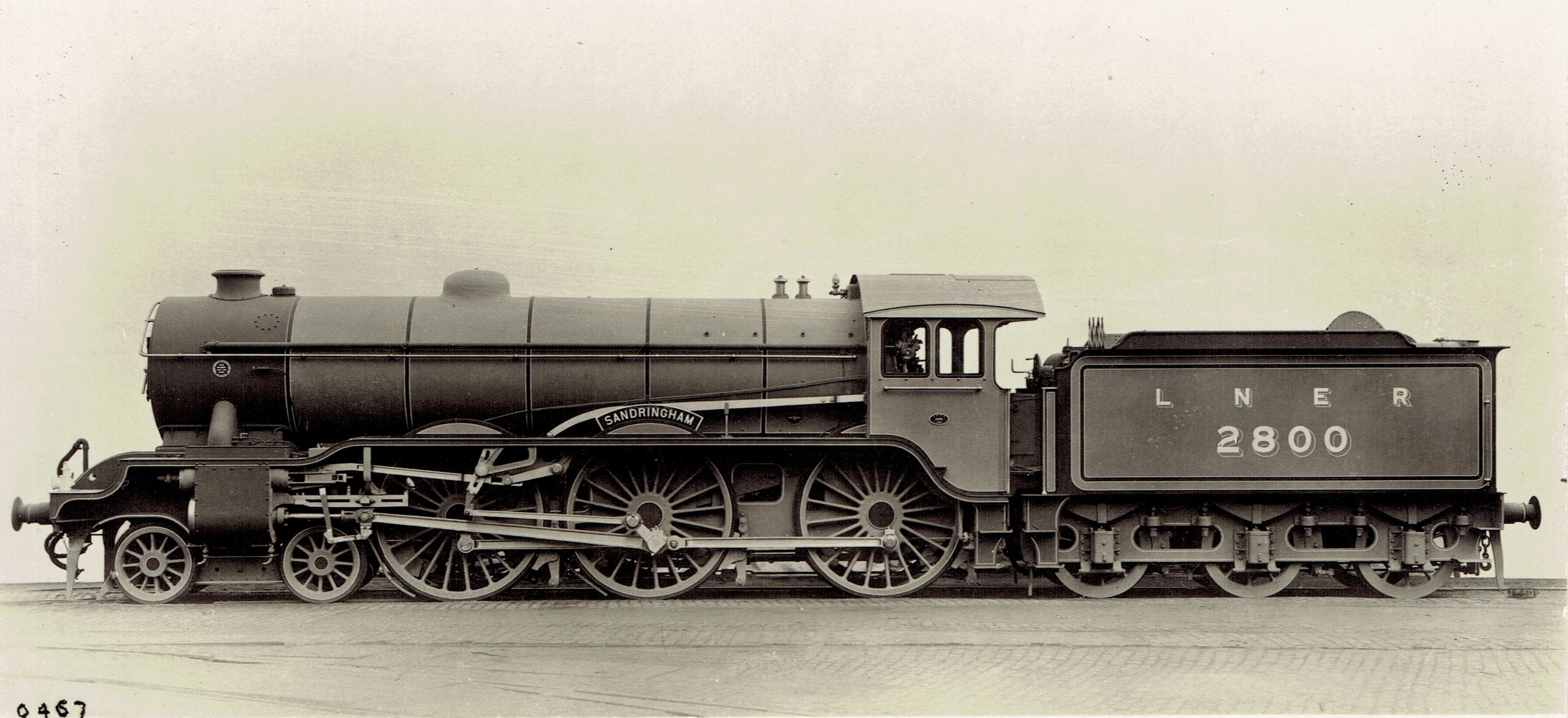

2800 | 61600 | Sandringham | December 1928 | June 1950 | B17/6 | July 1958 | |
| 2801 | 61601 | Holkham | December 1928 | — | — | January 1958 | ||
| 2802 | 61602 | Walsingham | November 1928 | October 1951 | B17/6 | January 1958 | ||
| 2803 | 61603 | Framlingham | December 1928 | October 1946 | B2 | September 1958 | ||
| 2804 | 61604 | Elveden | December 1928 | November 1951 | B17/6 | August 1953 | ||
| 2805 | 61605 | Burnham Thorpe(Lincolnshire Regiment from April 1938) | December 1928 | January 1948 | B17/6 | May 1958 | ||
| 2806 | 61606 | Audley End | December 1928 | March 1950 | B17/6 | September 1958 | ||
| 2807 | 61607 | Blickling | December 1928 | May 1947 | B2 | December 1959 | ||
| 2808 | 61608 | Gunton | December 1928 | October 1950 | B17/6 | March 1960 | ||
| 2809 | 61609 | Quidenham | December 1928 | January 1952 | B17/6 | June 1958 | ||
| 2810 | 61610 | Honingham Hall | August 1930 | October 1953 | B17/6 | January 1960 | ||
| 2811 | 61611 | Raynham Hall | August 1930 | February 1956 | B17/6 | October 1959 | ||
| 2812 | 61612 | Houghton Hall | October 1930 | March 1950 | B17/6 | September 1959 | ||
| 2813 | 61613 | Woodbastwick Hall | October 1930 | December 1951 | B17/6 | December 1959 | ||
| 2814 | 61614 | Castle Hedingham | October 1930 | November 1946 | B2 | June 1959 | ||
| 2815 | 61615 | Culford Hall | October 1930 | April 1946 | B2 | February 1959 | ||
| 2816 | 61616 | Fallodon | October 1930 | November 1945 | B2 | September 1959 | ||
| 2817 | 61617 | Ford Castle | November 1930 | December 1946 | B2 | August 1958 | ||
| 2818 | 61618 | Wynyard Park | November 1930 | April 1958 | B17/6 | January 1960 | ||
| 2819 | 61619 | Welbeck Abbey | November 1930 | January 1953 | B17/6 | September 1958 | ||
| 2820 | 61620 | Clumber | November 1930 | December 1951 | B17/6 | January 1960 | ||
| 2821 | 61621 | Hatfield House | November 1930 | January 1955 | B17/6 | November 1958 | ||
| 2822 | 61622 | Alnwick Castle | January 1931 | October 1943 | B17/6 | September 1958 | ||
| 2823 | 61623 | Lambton Castle | February 1931 | April 1948 | B17/6 | July 1959 | ||
| 2824 | 61624 | Lumley Castle | February 1931 | — | — | March 1953 | ||
| 2825 | 61625 | Raby Castle | February 1931 | — | — | December 1959 | ||
| 2826 | 61626 | Brancepeth Castle | March 1931 | April 1955 | B17/6 | January 1960 | ||
| 2827 | 61627 | Aske Hall | March 1931 | November 1948 | B17/6 | July 1959 | ||
| 2828 | 61628 | Harewood House | March 1931 | December 1948 | B17/6 | September 1952 | First to be withdrawn | |
| 2829 | 61629 | Naworth Castle | April 1931 | — | — | September 1959 | ||
| 2830 | 61630 | Thoresby Park(Tottenham Hotspur from January 1938) | April 1931 | December 1948 | B17/6 | August 1958 | ||
| 2831 | 61631 | Serlby Hall | May 1931 | October 1957 | B17/6 | April 1959 | ||
| 2832 | Belvoir Castle(Royal Sovereign from September 1958) | May 1931 | June 1947 | B2 | February 1959 | |||
| 2833 | 61633 | Kimbolton Castle | May 1931 | August 1948 | B17/6 | September 1959 | ||
| 2834 | 61634 | Hinchingbrooke | June 1931 | January 1957 | B17/6 | August 1958 | ||
| 2835 | 61635 | Milton | July 1931 | January 1949 | B17/6 | January 1959 | ||
| 2836 | 61636 | Harlaxton Manor | July 1931 | May 1950 | B17/6 | October 1959 | ||
| 2837 | 61637 | Thorpe Hall | March 1933 | November 1957 | B17/6 | September 1959 | ||
| 2838 | 61638 | Melton Hall | March 1933 | December 1948 | B17/6 | March 1958 | ||
| 2839 | 61639 | Rendlesham Hall(Norwich City from January 1938) | May 1933 | January 1946 | B2 | May 1959 | ||
| 2840 | 61640 | Somerleyton Hall | May 1933 | May 1955 | B17/6 | November 1958 | ||
| 2841 | 61641 | Gayton Hall | May 1933 | February 1949 | B17/6 | January 1960 | ||
| 2842 | 61642 | Kilverstone Hall | May 1933 | January 1949 | B17/6 | September 1958 | ||
| 2843 | 61643 | Champion Lodge | May 1935 | October 1954 | B17/6 | July 1958 | ||
| 2844 | 61644 | Earlham Hall | May 1935 | March 1949 | B2 | February 1959 | ||
| 2845 | 61645 | The Suffolk Regiment | June 1935 | December 1952 | B17/6 | February 1959 | ||
| 2846 | 61646 | Gilwell Park | August 1935 | February 1951 | B17/6 | January 1959 | ||
| 2847 | 61647 | Helmingham Hall | September 1935 | February 1958 | B17/6 | November 1959 | ||
| 2848 | 61648 | Arsenal | March 1936 | October 1957 | B17/6 | December 1958 | ||
| 2849 | 61649 | Sheffield United | March 1936 | March 1954 | B17/6 | February 1959 | ||
| 2850 | 61650 | Grimsby Town | March 1936 | February 1955 | B17/6 | September 1958 | ||
| 2851 | 61651 | Derby County | March 1936 | June 1953 | B17/6 | August 1959 | ||
| 2852 | 61652 | Darlington | April 1936 | March 1948 | B17/6 | September 1959 | ||
| 2853 | 61653 | Huddersfield Town | April 1936 | May 1954 | B17/6 | January 1960 | ||
| 2854 | 61654 | Sunderland | April 1936 | April 1948 | B17/6 | November 1959 | ||
| 2855 | 61655 | Middlesbrough | April 1936 | July 1950 | B17/6 | April 1959 | ||
| 2856 | 61656 | Leeds United | May 1936 | November 1953 | B17/6 | January 1960 | ||
| 2857 | 61657 | Doncaster Rovers | May 1936 | October 1950 | B17/6 | June 1960 | ||
| 2858 | 61658 | Newcastle United(The Essex Regiment from June 1936) | May 1936 | September 1950 | B17/6 | December 1959 | ||
|
2859 | 61659 | Norwich City(East Anglian from September 1937) | June 1936 | July 1949 | B17/6 | March 1960 | |
| 2860 | 61660 | Hull City | June 1936 | — | — | June 1960 | ||
|
2861 | 61661 | Sheffield Wednesday | June 1936 | August 1955 | B17/6 | July 1959 | |
| 2862 | 61662 | Manchester United | January 1937 | March 1955 | B17/6 | December 1959 | ||
| 2863 | 61663 | Everton | February 1937 | November 1951 | B17/6 | February 1960 | ||
| 2864 | 61664 | Liverpool | January 1937 | October 1943 | B17/6 | June 1960 | ||
| 2865 | 61665 | Leicester City | January 1937 | August 1949 | B17/6 | April 1959 | ||
| 2866 | 61666 | Nottingham Forest | February 1937 | December 1947 | B17/6 | March 1960 | ||
| 2867 | 61667 | Bradford | April 1937 | — | — | June 1958 | ||
| 2868 | 61668 | Bradford City | April 1937 | June 1949 | B17/6 | August 1960 | Last to be withdrawn | |
| 2869 | 61669 | Barnsley | May 1937 | September 1949 | B17/6 | September 1958 | ||
| 2870 | 61670 | Manchester City(Tottenham Hotspur from May 1937)
(City of London from September 1937) |
May 1937 | April 1951 | B17/6 | April 1960 | ||
| 2871 | 61671 | Manchester City(Royal Sovereign from April 1946) | June 1937 | August 1948 | B2 | September 1958 | ||
| 2872 | 61672 | West Ham United | July 1937 | September 1950 | B17/6 | March 1960 | ||
| *2873 | 61673 | Spirit of Sandringham | - | - | - | - | Newbuild member of the class. |
