The JNR Class DD15 is a diesel-hydraulic locomotive operated by the Japanese National Railways and its various successors from 1962 to June 2017.

History[]

The DD15 was designed as a dedicated snow-clearing locomotive, being one of a number of dedicated snow-clearing locomotives operated by the JNR. A total of 50 locomotives were produced by Nippon Sharyo, numbered DD15 1 through DD15 46 and DD15 301 through DD15 304. Unlike other snow-clearing locomotives used by the JNR, the DD15 featured two Russell-type snowplows fitted on both ends of the locomotive. In addition to snow clearing duties, the DD15 was also used for occasional switching jobs with the snowplows removed, contributing to efficiency with the locomotive able to be used all year round.

When the JNR was privatized and split in 1987, 32 locomotives remained in service; ownership of the locomotives came under JR East and West, receiving 19 and 13 locomotives respectively. JR East withdrew their entire fleet of DD15s in 2010, being replaced with ENR-1000 snow clearing locomotives. JR West began replacing their locomotives with KiYa 143 series snow clearing locomotives from 2013 and by 30 June 2017 the last locomotive in service, DD15 11, had been withdrawn.

Three locomotives have been preserved.

Design[]

The DD15s featured a steeplecab-like design, being painted in red with silver accents.

Specifications[]

The DD15s are fitted with two inline-6 prime movers, designated the DMF31SB. Total power output is about 1,000 PS (734 kW). The DD15 uses a a Shinko DS1.2/1.35 hydraulic transmission; the transmission works similarly to a Lysholm-Smith hydraulic torque converter and features two speeds and a single direct gear. The locomotive itself is heavily based on the DD13.

Preservation[]

The following Class DD15 locomotives have been preserved:

Number Manufacturer Date manufactured Date retired Location Notes

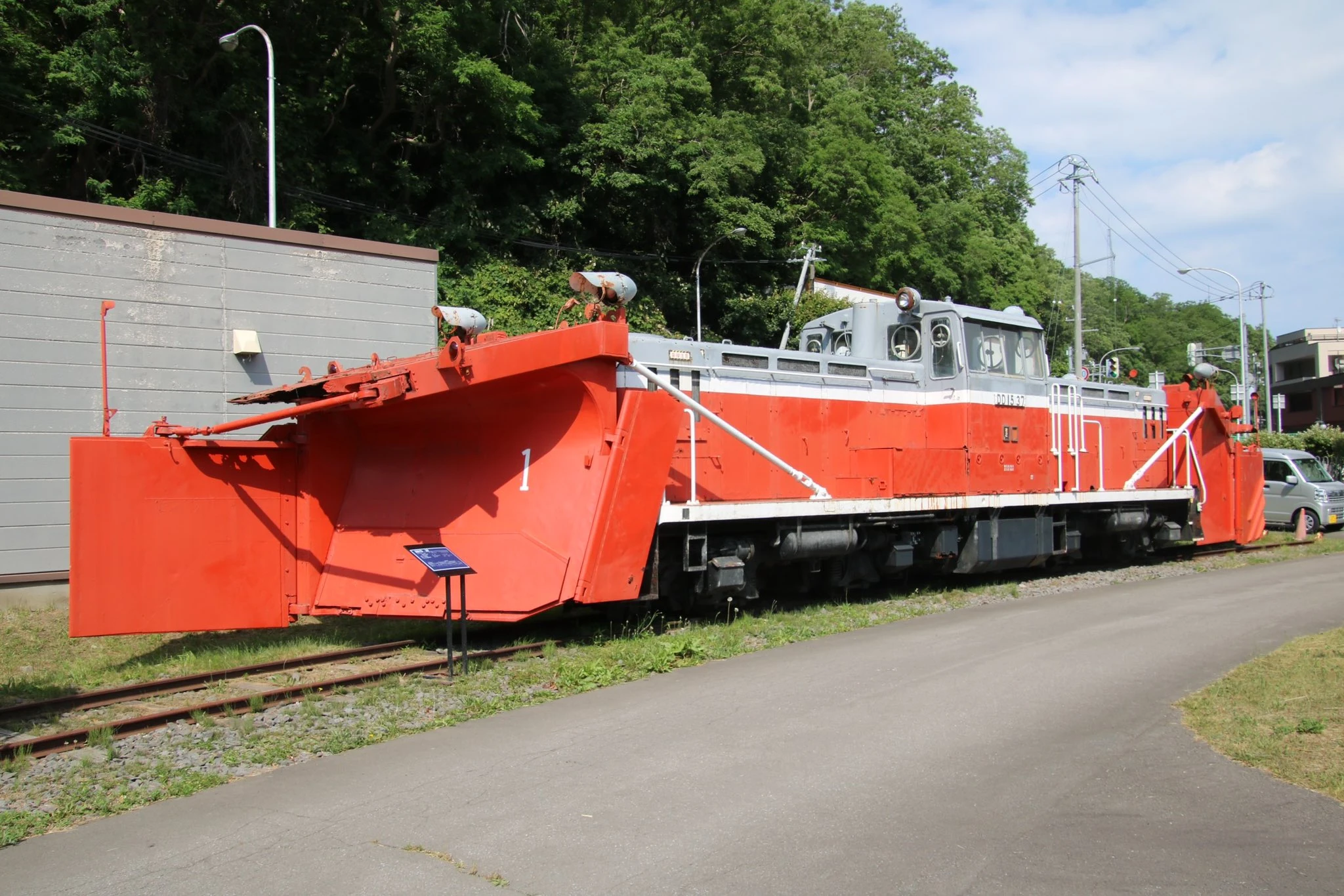

DD15 17 Nippon Sharyo 17 October 1963 5 February 1987 Mikasa Railway Memorial Hall, Mikasa, Hokkaido, Japan Displayed outdoors with dual snowplow attachments
DD15 30 10 December 1964 7 March 2011 Tsuyama Railroad Educational Museum, Okayama, Japan Displayed in roundhouse with snowplow attachment
DD15 37 9 October 1965 31 March 1987 Otaru City General Museum, Otaru, Hokkaido, Japan Displayed outdoors with dual snowplow attachments

The following Class DD13 locomotives were preserved in the past but have since been scrapped:

Number Manufacturer Date manufactured Date retired Last location Notes
DD15 4 Nippon Sharyo 20 November 1962 7 February 1987 Rifu Station, Miyagi, Japan Displayed outside station; scrapped May or June 2002
