JNR Class B10

JNR Class B10

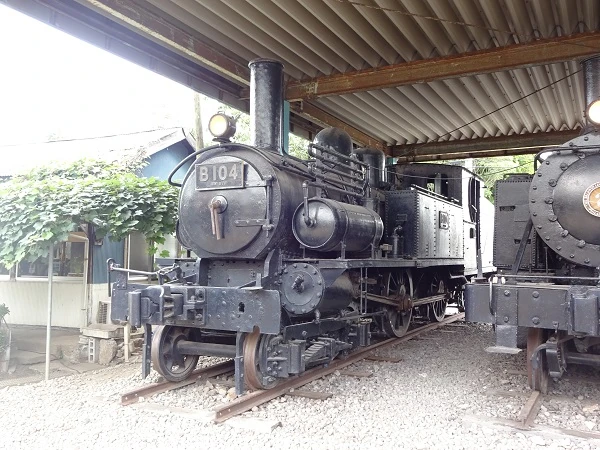

B10 4 in August 2020
Technical specifications
Manufacturer(s)	JGR's Hamamatsu Works, JGR's Ōmiya Works
Build date	1929
Total produced	10
Classification	4-4-2T
Dimensions	11,378 mm × 2,061 mm × 3,678 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	11.0 – 12.0 kg/cm²
Fuel type	Coal
Heating area	70.3 m²
Service information
Years in-service	1893 – 1966
Running numbers	B10 1 – B10 10
Disposition details
Preserved	1
Number operational	None
Number scrapped	9

The JNR Class B10 is a 4-4-2T Atlantic-type side tank steam locomotive operated by the Japanese National Railways from 1929 to 1950.

History

The Class B10 was an early steam locomotive operated in Japan. The type was converted from ten JGR Class 5500 steam locomotives, manufactured by Beyer, Peacock & Company between 1893 and 1898. 5506, 5518, 5512, 5507, 5527, 5557, 5565, 5510, 5515 and 5534 were converted at JGR's workshops to become B10 1 through B10 10. These were the last tender-to-tank locomotive conversions undertaken by the JGR.

The B10s were often use in freight service and were also used on the Kominato Railway. All locomotives were retired on the JGR by 1950 and were then scrapped shortly after. Only one Class B10 locomotive survives today, B10 4, where it is preserved next to Kominato Railway's No. 1 and 2 steam locomotives at the Kominato Railway headquarters.

Preservation

The following Class B10 locomotives have been preserved:

Number	Manufacturer	Date manufactured	Serial number	Date withdrawn	Location	Notes
B10 4	Beyer, Peacock and Company	June 1894	3641	May 1936 (JGR) February 1951 (Kominato)	Goi Depot, Ichihara, Chiba, Japan	Ex-JGR 5507, displayed under shelter, permission required to view; displayed near Kominato Railway 1 and 2

Gallery

Mitsui Pier No. 1 at an unknown date
