JGR Class 8350

JGR Class 8350

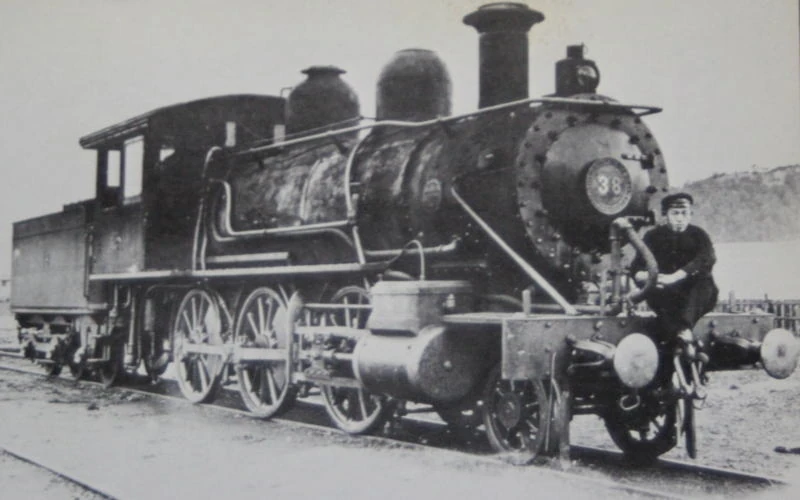

Class 7 38 (later JGR 8353) at an unknown date
Technical specifications
Serial number(s)	14126 – 14129
Manufacturer(s)	Baldwin Locomotive Works
Build date	1894
Total produced	4
Classification	2-6-0
Dimensions	14,859 mm × 2,371 mm × 3,658 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	11.2 kg/cm²
Fuel type	Coal
Heating area	93.4 m²
Service information
Years in-service	1894 – December 1922
Running numbers	8350 – 8353 (originally 35 – 38)
Disposition details
Preserved	None
Number scrapped	4

The JGR Class 8350 (originally the Sanyo Railway Class 7) was a 2-6-0 Mogul-type steam locomotive operated by the Japanese Government Railways from 1894 to 1922.

History

The Class 8350 was an early steam locomotive operated in Japan. The type was ordered by the Sanyō Railway as the Class 7, of which four locomotives were built by Baldwin Locomotive Works. These were assigned to the Sanyō Railway and given the numbers of 35 to 38. These locomotives were used mainly on the Sanyō Railway.

After the Railway Nationalization Act was passed in 1909, the locomotives were renumbered the Class 8350. 8350 was retired in March 1922 while the other three were retired in December the same year. No Class 8350s have been preserved.

Trivia

• Baldwin's model number for this locomotive was 8-26-D.
