JGR Class 7750

JGR Class 7750

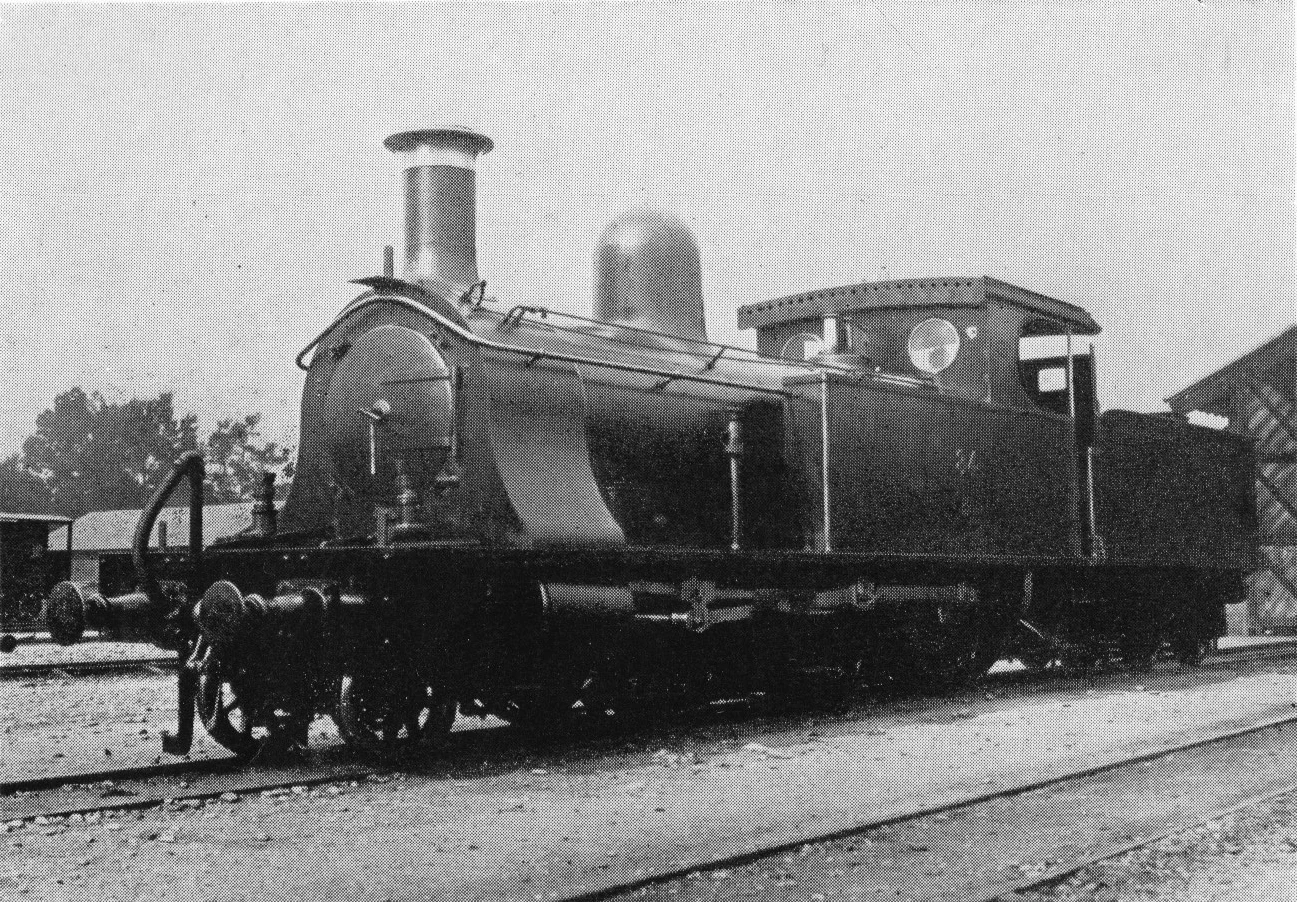

Nippon Railway 84 (later JGR 7757) at an unknown date
Technical specifications
Serial number(s)	4656 – 4665
Manufacturer(s)	Neilson and Company
Build date	1893
Total produced	10
Classification	2-6-0
Dimensions	14,523 mm × Unknown × 3,658 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	11.3 kg/cm²
Fuel type	Coal
Heating area	92.0 m²
Service information
Years in-service	1893 – 1924
Running numbers	7750 – 7759 (originally 77 – 86)
Disposition details
Preserved	None
Number scrapped	10

The JGR Class 7750 (originally the Nippon Railway Class N3/4) was a 2-6-0 Mogul-type steam locomotive operated by the Japanese Government Railways from 1893 to 1924.

History

The Class 7750 was an early steam locomotive operated in Japan. The type was ordered by the Nippon Railway, with a total of ten locomotives manufactured by Neilson and Company in 1893. These were classified as the Class N3/4 locomotives and numbered 77 through 86. 85 and 86 were unique in that they were compound locomotives. The locomotives were similar to the Class V and W locomotives imported around the same time.

The locomotives were reclassified as the Class 7750 in 1909 when a formal rule regarding standardized classification of locomotives was enacted; the locomotives were thus renumbered 7750 through 7759. The locomotives were initially used on the Tōhoku and Tōkaidō Line; in their later careers they were used north of Tōhoku. The locomotives were all retired from the JGR in 1924, with all transferred to the Karafuto Prefectural Railway and used on the Karafuto West Line. When the Karafuto Prefectural Railway was acquired by the JGR, seven locomotives returned to JGR ownership but all were retired by 1945. No Class 7750s have been preserved.
