JGR Class 5060

JGR Class 5060

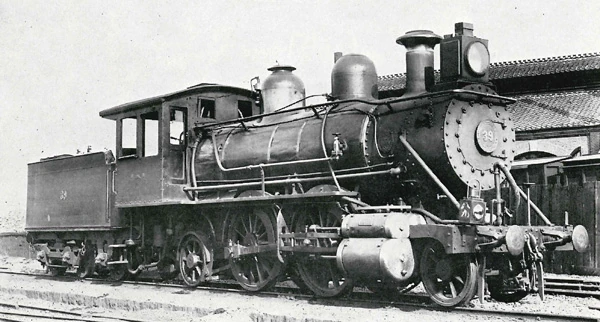

Class 8 39 (later JGR 5060) at an unknown date
Technical specifications
Serial number(s)	14329
Manufacturer(s)	Baldwin Locomotive Works
Build date	1895
Total produced	1
Classification	2-4-2
Dimensions	14,707 mm × 2,718 mm × 3,696 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	4
Boiler pressure	11.2 kg/cm²
Fuel type	Coal
Heating area	83.6 m²
Service information
Years in-service	1895 – 1919
Running numbers	5060 (originally 39)
Disposition details
Preserved	None
Number scrapped	1

The JGR Class 5060 (originally the Sanyo Railway Class 8) was a 2-4-2 Columbian-type Vauclain compound steam locomotive operated by the Japanese Government Railways from 1895 to 1919.

History

The Class 5060 was an early steam locomotive operated in Japan. The type was ordered by the Sanyō Railway as the Class 8, of which one locomotive was built by Baldwin Locomotive Works. It was assigned to the Sanyō Railway and given the numbers 38. When originally built a commemorative plate was added to the side of the locomotive, with "K.MINAMI" written.

After the Railway Nationalization Act was passed in 1909, the locomotive was renumbered to the Class 5060. 5060 was retired in 1919 and scrapped shortly after.

Trivia

• Baldwin's model number for this locomotive was 8-14/28 1/4C.
