JGR Class 5

JGR Class 5

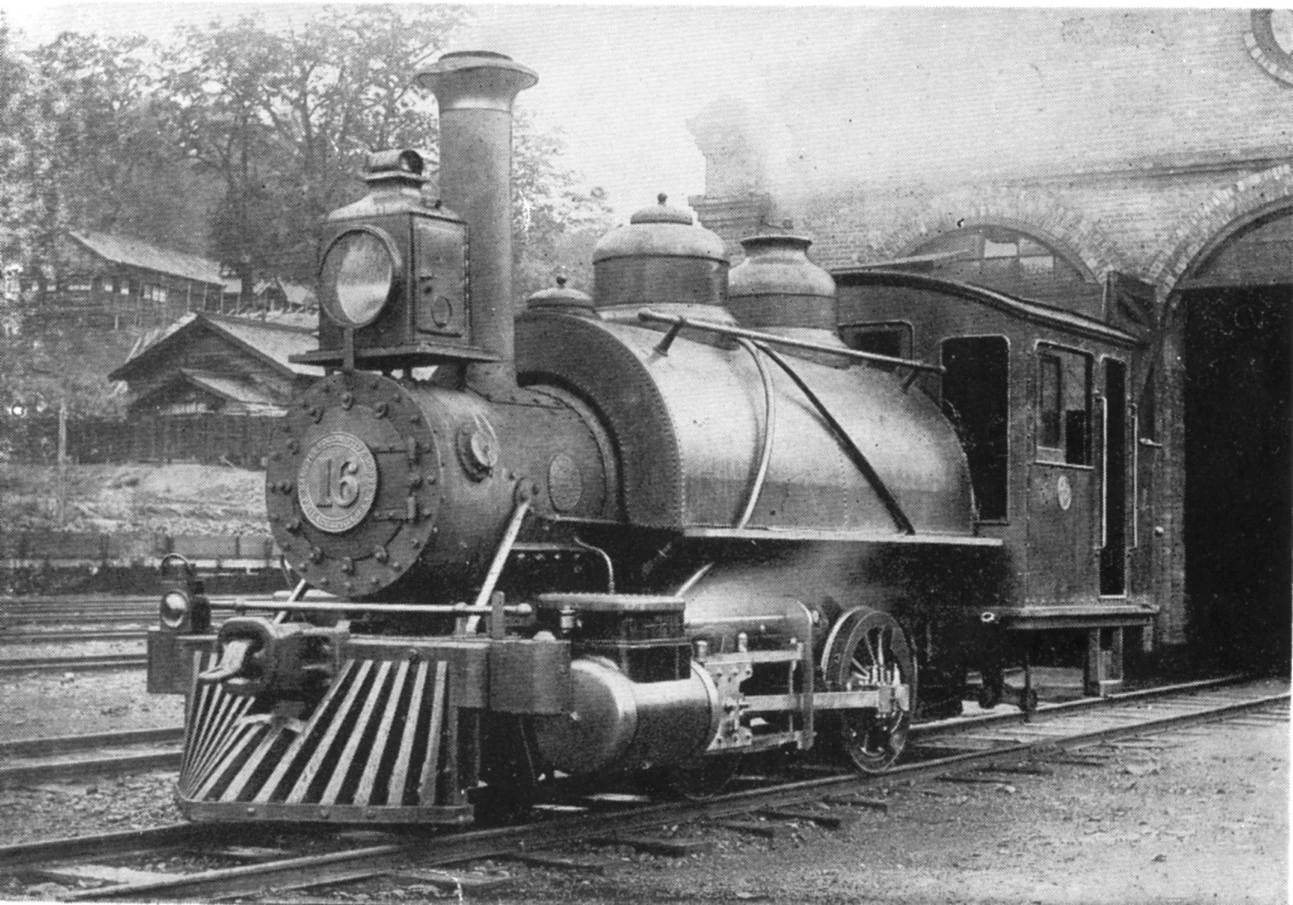

Hokkaido Colliery and Railway Company No. 16 (later JGR 6) at an unknown date
Technical specifications
Serial number(s)	15813 – 15814
Manufacturer(s)	Baldwin Locomotive Works
Build date	1898
Total produced	2
Classification	0-4-2ST (originally 0-4-0ST)
Dimensions	8,179 mm × Unknown × 3,531 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	13.0 kg/cm²
Fuel type	Coal
Heating area	77.6 m²
Service information
Years in-service	1898 – 1941
Running numbers	5 – 6 (originally 15 – 16)
Disposition details
Preserved	None
Number scrapped	2

The JGR Class 5 (originally the Hokkaido Colliery & Railway Company Class D) was a 0-4-0ST Switcher-type saddle tank steam locomotive operated by the Japanese Government Railways from 1898 to 1941.

History

The Class 5 was an early steam locomotive operated in Japan. The type was ordered by the Hokkaido Colliery & Railway Company, with two locomotives built by the Baldwin Locomotive Works. The locomotives were assigned the class D and numbered 15 and 16. The locomotives entered service in 1898 and were apparently intended to perform similarly to the JGR Class 1100 locomotives, although due to their shape they had an imbalanced axle load; this was presumably a design oversight.

After the Railway Nationalization Act was passed in 1909, the locomotives were reclassified as the Class 5 and renumbered 5 and 6. After being acquired by the JGR, a trailing truck was added to fix the axle load issues, making this an 0-4-2ST locomotive. The locomotives were moved around a number of times before 6 ultimately ended up on the Kanbara Factory Railway, where it was used until about 1941. No Class 5 locomotives have been preserved.

Trivia

• Baldwin's model number for this locomotive was 4-20-C.
