JGR Class 3450

JGR Class 3450

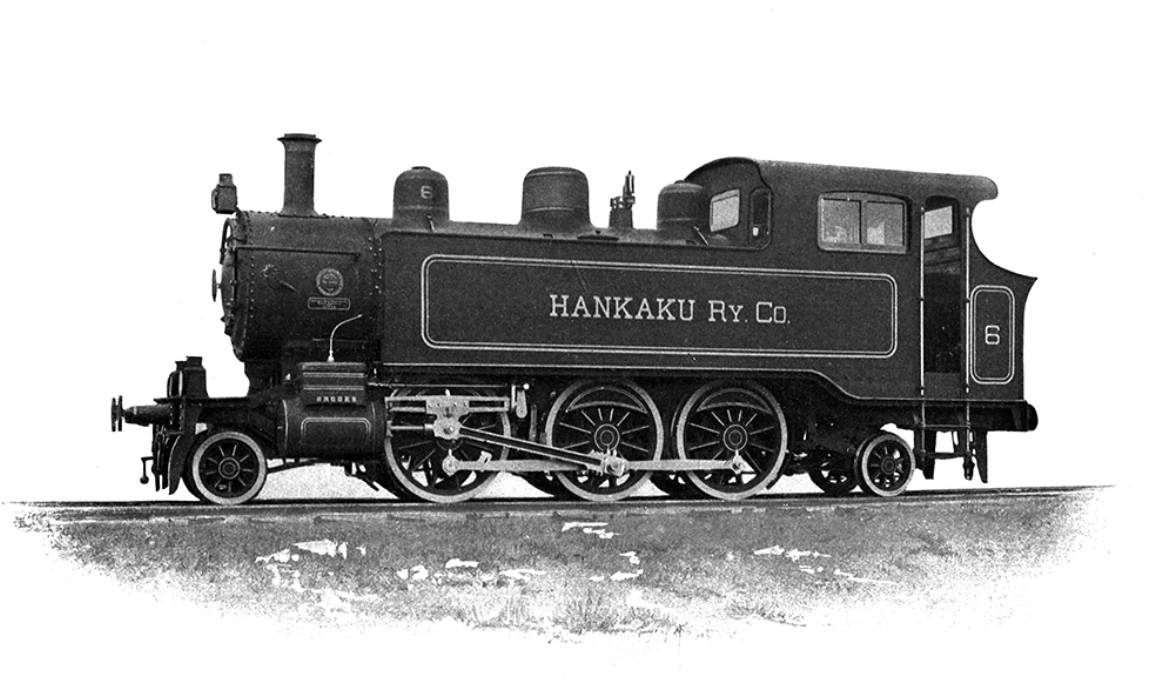

Builder's photo
Technical specifications
Serial number(s)	2997 – 2998
Manufacturer(s)	Brooks Locomotive Works
Build date	1897
Total produced	2
Classification	2-6-2T
Dimensions	10,154 mm × 2,591 mm × 3,607 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	11.2 kg/cm²
Fuel type	Coal
Heating area	91.4 m²
Service information
Years in-service	1898 – 1922
Running numbers	3450 – 3451 (originally 6 – 7)
Disposition details
Preserved	None
Number scrapped	2

The JGR Class 3450 (originally the Hankaku Railway Class A3) was a 2-6-2T Prairie-type side tank steam locomotive operated by the Japanese Government Railways from 1898 to 1922.

History

The Class 3450 was an early steam locomotive operated in Japan. The type was ordered by the Hankaku Railway, with two locomotives built by the Brooks Locomotive Works. Numbered 6 and 7, both were assigned the Class A3 and were very similar to the Class A7 locomotives transferred to the railroad later.

After the Railway Nationalization Act was passed in 1909, the locomotives were renumbered the Class 3450. The locomotives were retired in 1922, with their final days being spent around the Nagoya area. No Class 3450s have been preserved.
