JGR Class 3170

JGR Class 3170

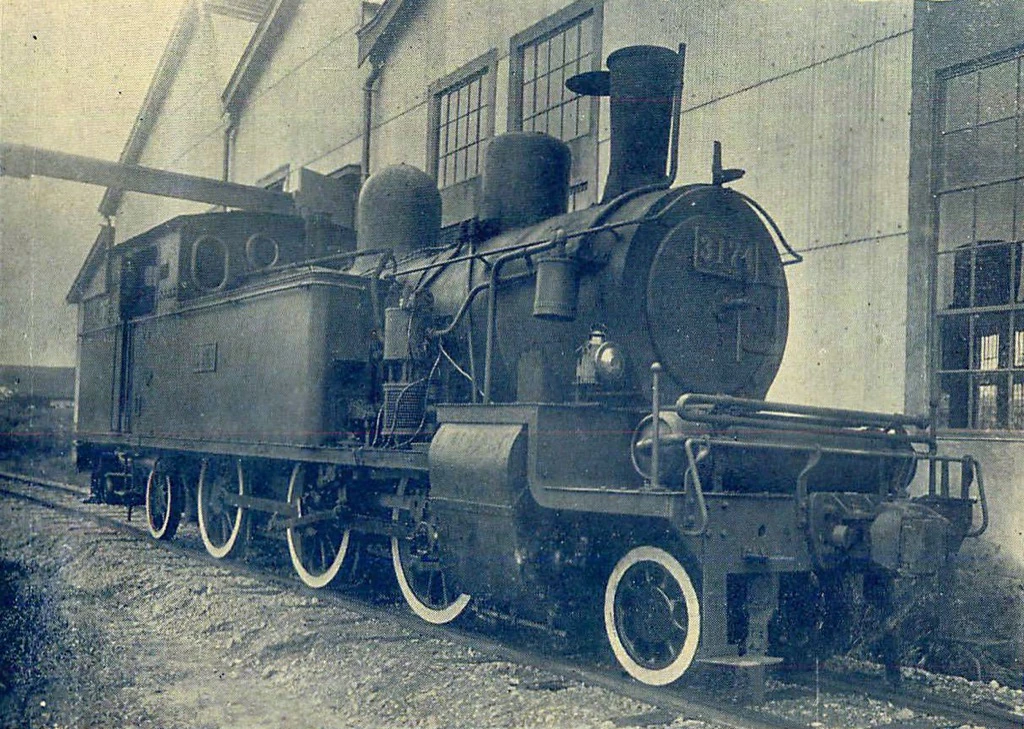

3174 at an unknown date
Technical specifications
Serial number(s)	3046 – 3051
Manufacturer(s)	Hannoversche Maschinenbau AG
Build date	1903
Total produced	6
Classification	2-6-2T
Dimensions	11,665 mm × 2,642 mm × 3,810 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Walschaerts
Cylinders	2
Boiler pressure	12.7 kg/cm²
Fuel type	Coal
Heating area	86.2 m²
Service information
Years in-service	1910 – 1948
Running numbers	3170 – 3175 (originally 825 – 830)
Disposition details
Preserved	None
Number scrapped	6

The JGR Class 3170 (originally the Nippon Railway Class H3/5) was a 2-6-2T Prairie-type side tank steam locomotive operated by the Japanese Government Railways from 1903 to 1951.

History

The Class 3170 was an early steam locomotive operated in Japan. The type was ordered by the Nippon Railway, with six locomotives built by Hannoversche Maschinenbau AG, better known as Hanomag, in Germany and delivered to the railroad in 1903; the locomotives were classified the Class H3/5 and numbered 825 though 830. When introduced the locomotives were the largest tank locomotives in Japan at the time.

The locomotives were reclassified the Class 3170 after the Nippon Railway was nationalized in 1909. After the locomotive was acquired by the JGR the locomotives had a long service life. The first retirements began in 1948 and all locomotives were retired by 1950. 3170 was then transferred to Takasaki Sanko but was not used and scrapped shortly after. No Class 3170s have been preserved.
