JGR Class 3045

JGR Class 3045

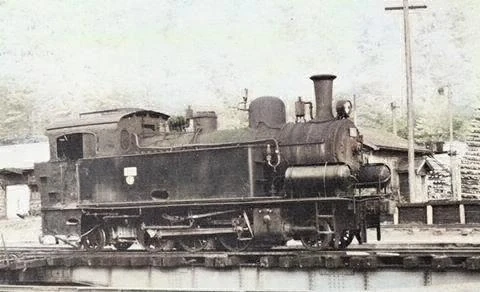

Yūbetsu Railway 103 at an unknown date
Technical specifications
Serial number(s)	11064 – 11065
Manufacturer(s)	Orenstein & Koppel
Build date	1922, 1925
Total produced	2 + 5 derivative (total 7)
Classification	2-6-2T
Dimensions	9,680 mm × 2,650 mm × 3,860 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Walschaerts
Cylinders	2
Boiler pressure	12.0 kg/cm²
Fuel type	Coal
Heating area	90.9 m²
Service information
Years in-service	1922 – 1949
Running numbers	3045 – 3046 (originally 5 – 6)
Disposition details
Preserved	None
Number scrapped	7

The JGR Class 3045 (originally the Hokkaido Railway Class 5) was a 2-6-2T Prairie-type side well tank steam locomotive operated by the Japanese Government Railways from 1922 to 1949.

History

The Class 3045 was an early steam locomotive operated in Japan. The type was manufactured initially for the Hokkai Charcoal Railway, with two locomotives manufactured by Orenstein & Koppel, numbered 103 and 104. What would later be christened the Class 1260 were two locomotives built for the Hokkaido Railway in 1925. These were numbered 5 and 6. Another three derivative locomotives were also manufactured in 1923.

When the Hokkaido Railway was acquired by the JGR in 1943, the locomotives were reclassified the Class 3045 and renumbered 3045 and 3046. The JGR locomotives were retired by 1949, while the derivatives were retired by 1965. No Class 3045s have been preserved.
