JGR Class 3020

JGR Class 3020

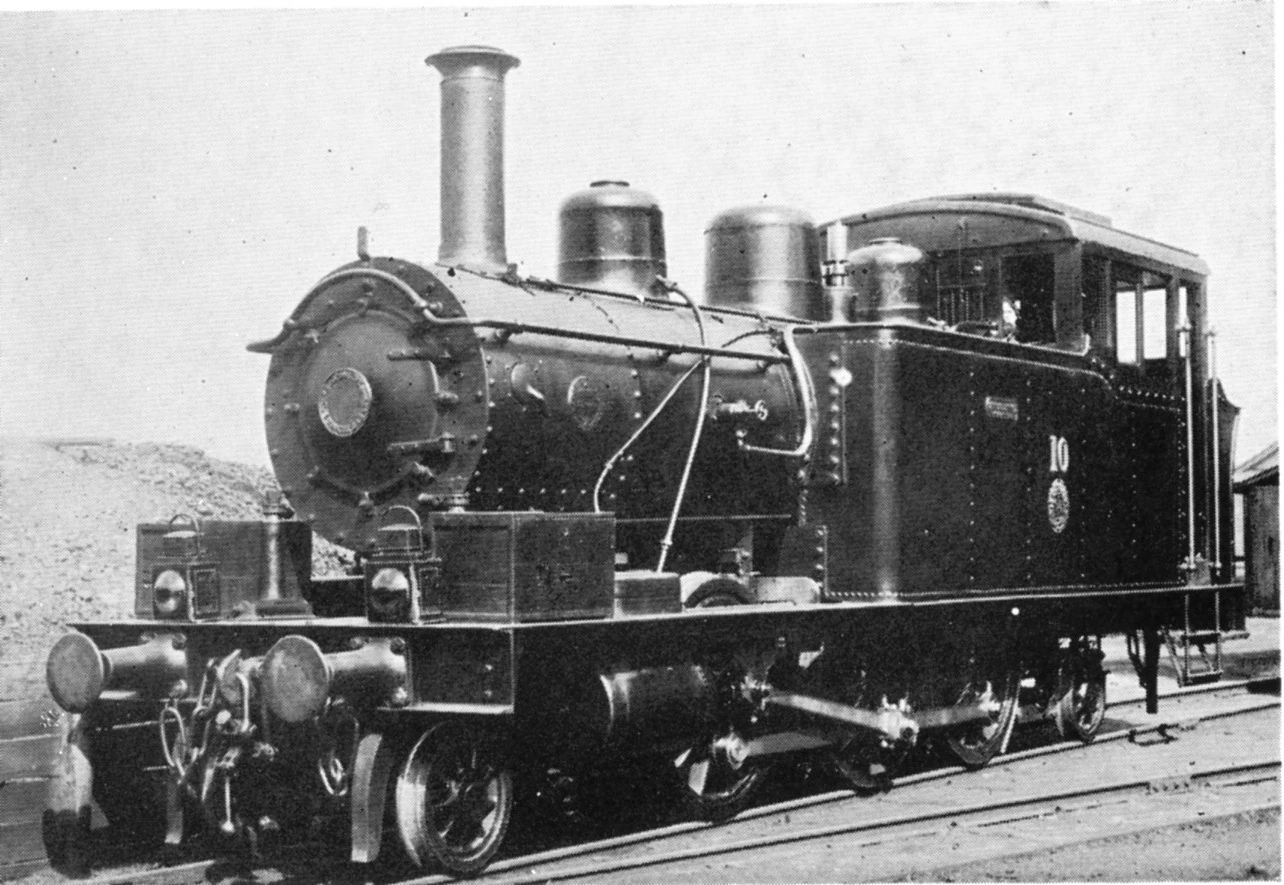

Kōbu Railway 10 (later JGR 3020) at an unknown date
Technical specifications
Serial number(s)	2836 – 2838
Manufacturer(s)	Brooks Locomotive Works
Build date	1897
Total produced	3
Classification	2-6-2T
Dimensions	9,881 mm × 2,438 mm × 3,708 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	11.6 kg/cm²
Fuel type	Coal
Heating area	72.3 m²
Service information
Years in-service	1897 – 1938
Running numbers	3020 – 3022 (originally 10 – 12)
Disposition details
Preserved	None
Number scrapped	3

The JGR Class 3020 (originally the Kōbu Railway Class K3) was a 2-6-2T Prairie-type side tank steam locomotive operated by the Japanese Government Railways from 1897 to 1938.

History

The Class 3020 was an early steam locomotive operated in Japan. The type was ordered by the Kōbu Railway, with two locomotives built by the Brooks Locomotive Works and delivered to the railroad in 1897; these were classified the Class K3 and numbered 10 to 12. The locomotives were renamed the Class 3020 in 1909 with a rule having been enacted to standardize locomotive naming.

The locomotives were mainly used around the Gunma region. 3022 was sold to the Seibu Railway, renumbered 6 and retired around 1938. No Class 3020s have been preserved.
