JGR Class 3010

JGR Class 3010

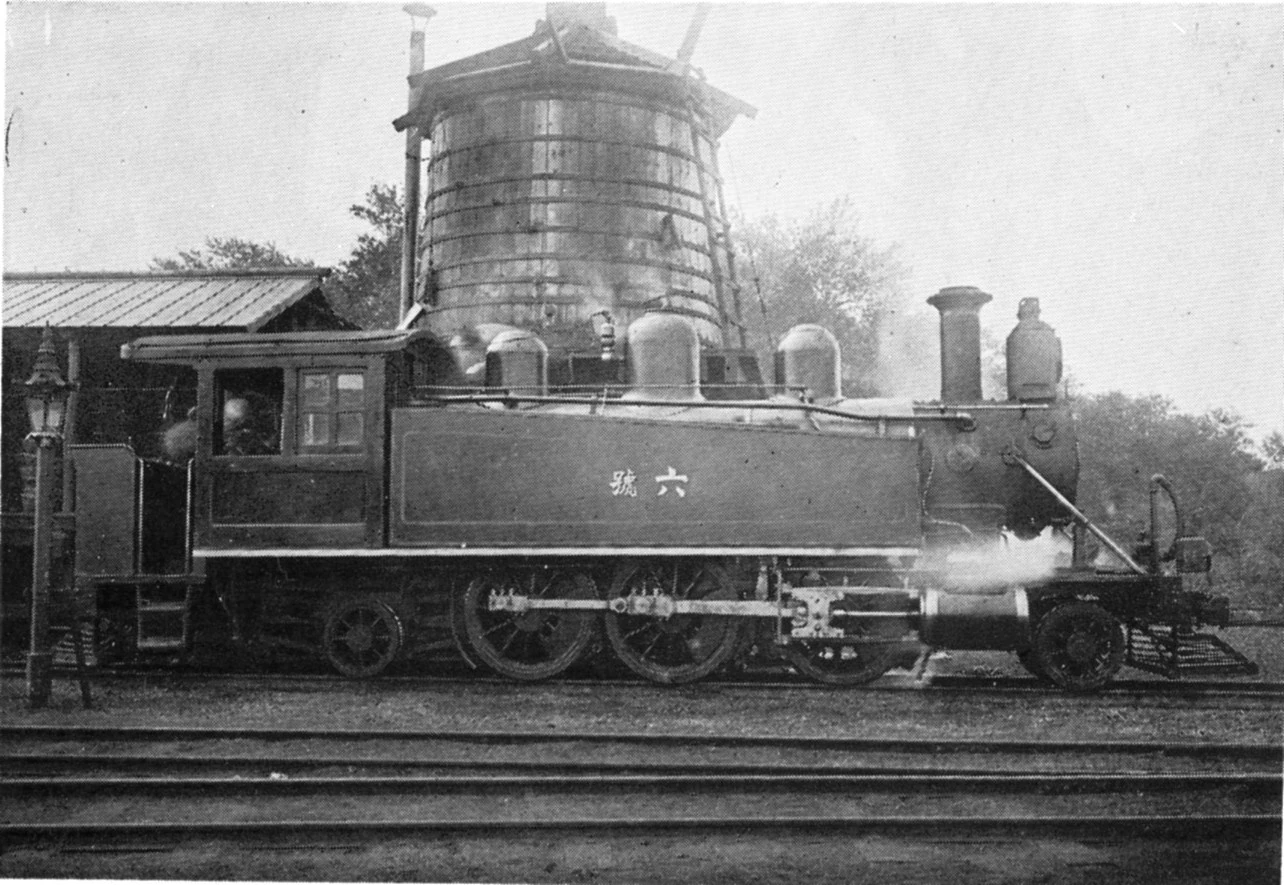

Hokkaido Government Railway 6 (later JGR 3010) at an unknown date
Technical specifications
Serial number(s)	15528 – 15529
Manufacturer(s)	Baldwin Locomotive Works
Build date	1897
Total produced	2
Classification	2-6-2T
Dimensions	10,757 mm × 2,477 mm × 3,505 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	10.5 kg/cm²
Fuel type	Coal
Heating area	83.8 m²
Service information
Years in-service	1897 – 1923
Running numbers	3010 – 3011 (originally 6 – 7)
Disposition details
Preserved	None
Number scrapped	2

The JGR Class 3010 (originally the Hokkaido Government Railway Class D1) was a 2-6-2T Prairie-type side tank steam locomotive operated by the Japanese Government Railways from 1897 to 1923.

History

The Class 3010 was an early steam locomotive operated in Japan. The type was ordered by the Hokkaido Government Railway, with two locomotives built by the Baldwin Locomotive Works and delivered to the railroad in 1897; these were classified the Class D1 and numbered 6 and 7. The locomotives were renamed the Class 3010 in 1909 with a rule having been enacted to standardize locomotive naming.

The locomotives were used in Hokkaido and were not relocated after the railroad was acquired by the JGR. The locomotives were retired in 1923. No Class 3010s have been preserved.

Trivia

• Baldwin's model number for this locomotive was 10-24 1/4D.
