JGR Class 2950

JGR Class 2950

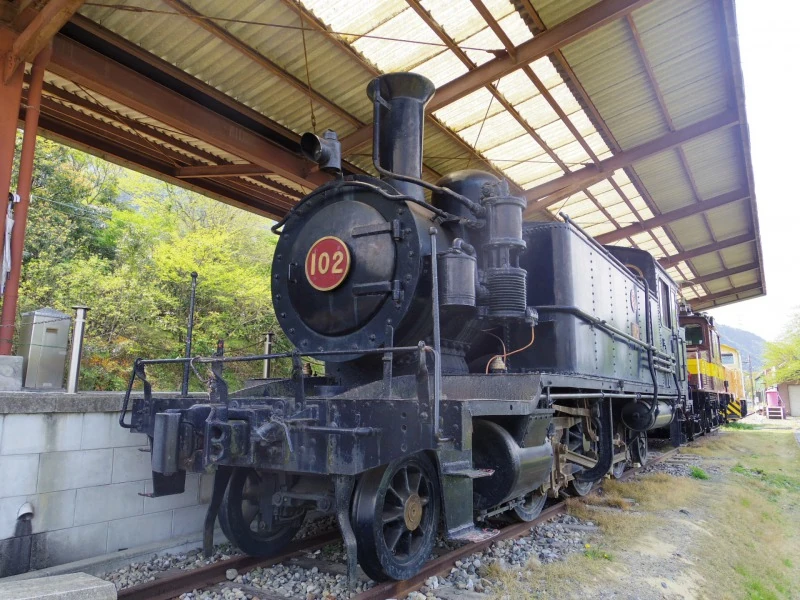

Sangi Railway E102 in April 2017
Technical specifications
Serial number(s)	80 – 81, 92 – 93, 295 – 296
Manufacturer(s)	Hitachi, Kisha Seizō
Build date	1923, 1928, 1929, 1931
Total produced	6 + 5 derivative (total 11)
Classification	2-6-2T
Dimensions	9,761 mm × 2,651 mm × 3,637 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Walschaerts
Cylinders	2
Boiler pressure	9.8 kg/cm²
Fuel type	Coal
Heating area	84.5 m²
Service information
Years in-service	1923 – 1949
Running numbers	2950 – 2955, 2930 – 2931 (originally 11 – 16, 101 – 102)
Disposition details
Preserved	1 derivative
Number operational	None
Number scrapped	10

The JGR Class 2950 (originally the Iiyama Railway Class 11) and the related Class 2830 (originally the Onoda Railway Class 101) are 2-6-2T Prairie-type side tank steam locomotives operated by the Japanese Government Railways from 1923 to 1949.

History

The Class 2950 was an early steam locomotive operated in Japan. The type was ordered by the Iiyama Railway, with four locomotives built by Hitachi and delivered to the railroad in 1923; these were classified the Class 11 and numbered 11 through 14. Two more locomotives were ordered by the railroad in 1928 and were numbered following on from the previous locomotives, going 15 and 16. Five more derivatives were manufactured in 1929 and 1931; four were manufactured by Hitachi while one, E102 for the Sangi Railway, was manufactured by Kisha Seizō.

When the Iiyama Railway was acquired by the JGR in 1944, the Class 11 locomotives were reclassified as the Class 2950 and renumbered 2950 through 2955; one of the derivatives, the Onoda Railway's Class 101 locomotives, was reclassified the Class 2930, with the two locomotives there renumbered 2930 and 2931. The locomotives were only used around Iiyama throughout their duration of service, but one, 2956, was then moved to Takamatsu. All Class 2950s were retired by 1949. One of the derivatives, Sangi Railway E102, survives today. It is located in the vicinity of Nishi-Fujiwara Station on the Sangi Railway Line.

Preservation

The following Class 2950 locomotives have been preserved:

Number	Manufacturer	Date manufactured	Serial number	Date withdrawn	Location	Notes
Sangi Railway E102	Kisha Seizō	July 1931	1165	26 February 1954	Nishifujiwara Ekimae Park, Inabe, Mie, Japan	Displayed under shelter; displayed near ED22 2 and DB25
