The JGR Class 230 is a 2-4-2T Columbian-type side tank steam locomotive built for the JGR from 1902 to 1909.

History[]

The 230s were used mainly as freight locomotives and was known as the first domestically mass-produced steam locomotive. The 230s were based on the Class 500, 600 and 700 locomotives made by Dübs & Co., Nasmyth, Wilson & Co., Ltd. and the Vulcan Foundry in the United Kingdom, with thirty-eight built by Kisha Seizō. The locomotives were retired in the 1960s.

Two locomotives, namely 233 and 268, have survived into preservation. A member of Taiwanese derivative of the 230s, the Class BK10, is preserved; locomotive number BK24 is preserved at the National Cheng Kung University in Tainan City, Taiwan.

Preservation[]

The following Class 230 locomotives have been preserved:

Number Manufacturer Date manufactured Serial number Date withdrawn Location Notes

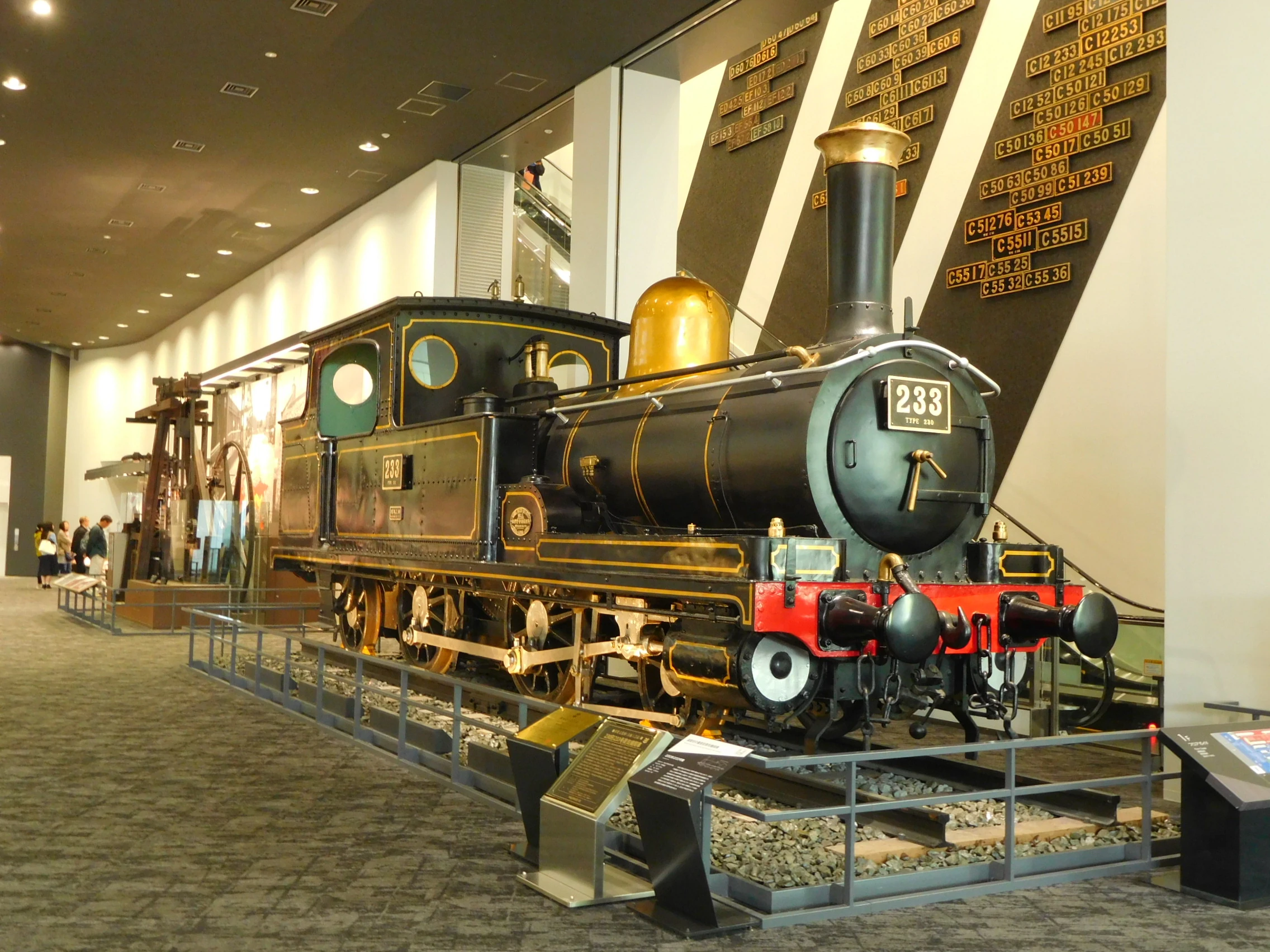

233 Kisha Seizō August 1903 15 20 March 1959 Kyoto Railway Museum, Kyoto, Japan Displayed indoors
268 December 1904 26 1 November 1954 Tosu Station, Tosu, Kyushu, Japan Displayed under shelter within fence; accessible from station's east exit
BK24 Nippon Sharyo 1904 32 1 June 1954 National Cheng Kung University, Tainan, Taiwan Displayed under shelter within fence

Trivia[]

  • A common theory is that the Class 230s are the first locomotives to have been manufactured by a private domestic manufacturer; this is partially true, as the locomotives are the first locomotives to be mass-produced by a private domestic manufacturer, but is not the first to be produced by a private company, with that title going to the JGR Class 180.
