JGR Class 1630

JGR Class 1630

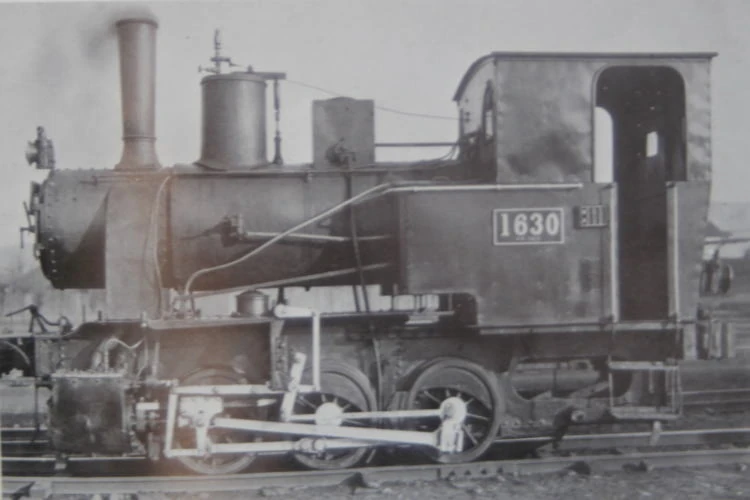

1630 at an unknown date
Technical specifications
Serial number(s)	3672 – 3676
Manufacturer(s)	J.A. Maffei
Build date	1912
Total produced	5
Classification	0-6-0T
Dimensions	4,581 mm × 1,676 mm × 2,743 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Walschaerts
Cylinders	2
Boiler pressure	11.2 kg/cm²
Fuel type	Coal
Heating area	7.99 m²
Service information
Years in-service	1912 – 1937
Running numbers	1630 – 1632, 3, 4
Disposition details
Preserved	None
Number scrapped	5

The JGR Class 1630 (originally the Echigo Railway Class 1) was a 0-6-0T Switcher-type well tank steam locomotive operated by the Japanese Government Railways from 1912 to 1937.

History

The Class 1630 was a well tank locomotive originally ordered by the Echigo Railway. Five locomotives were produced by J.A. Maffei in 1912 and were classified as the Class 1 and numbered 1 to 5. Some time in 1927, two locomotives were transferred to the Awa Railway, reclassified as the Class 2 and renumbered 3 and 4.

When the Echigo Railway was nationalized in 1927, the three locomotives were renumbered the Class 1630 and renumbered from 1630 to 1632. When the Awa Railway was nationalized in 1933, the locomotives were initially intended to be named the Class 1560, but as there was no formal policy for naming locomotives acquired by the JGR from private railroads, a special case was granted in this case; as a result, the locomotives were classfied as the Class A 2, with the "A" (read: "ah") being used to designate locomotives acquired from the Awa Railway. Despite all five locomotives being the same, they are designated different depending on where they came from. The locomotives were used until 1937. No Class 1630s survive, although Awa Railway's 3 was spotted by railfans at JGR's Ōmiya Works in 1951; it was likely scrapped after that.
