JGR Class 1440

JGR Class 1440

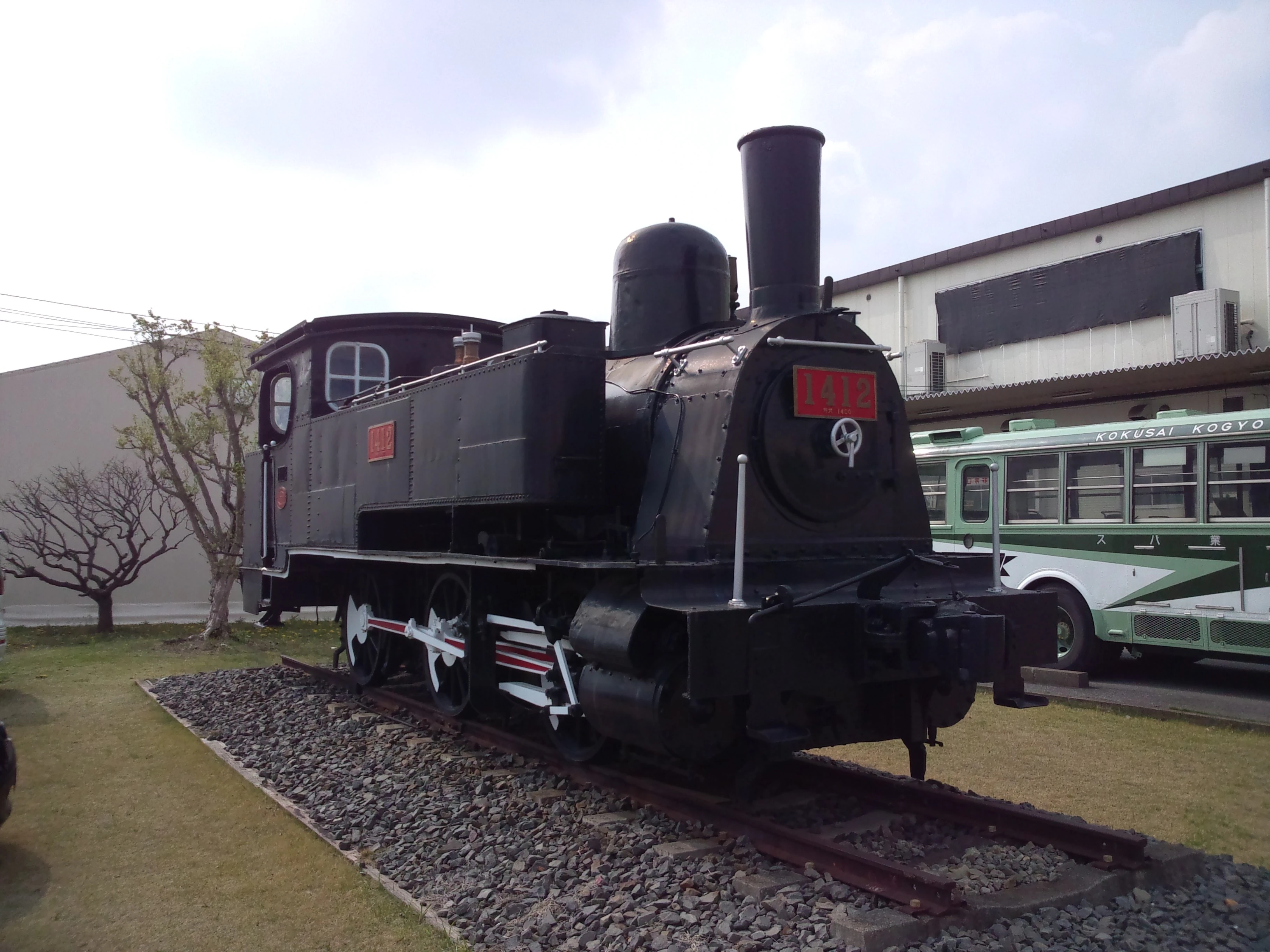

1412 in April 2012
Technical specifications
Serial number(s)	2305 – 2308, 2824 – 2825, 3277 – 3283, 3327 – 3333, 3661 – 3662, 3672 – 3677, 3777 – 3778
Manufacturer(s)	Krauss-Maffei
Build date	1890 – 1898
Total produced	27 (1440) + 2 (1400) (total 29)
Classification	0-6-0T
Dimensions	9,008 mm × Unknown × 3,620 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Walschaerts
Cylinders	2
Boiler pressure	11.3 kg/cm²
Fuel type	Coal
Heating area	77.8 m²
Service information
Years in-service	1890 – 1964
Running numbers	1440 – 1447, 1400 – 1420 (originally 4 – 5, 15 – 18, 24 – 25, 27, 28, 34 – 45, 50 – 54, 114 – 115)
Disposition details
Preserved	1
Number operational	None
Number scrapped	28

The JGR Class 1440 and the related Class 1400 (originally the Kyushu Railway Class 15) is a 0-6-0T Switcher-type side well tank steam locomotive operated by the Japanese Government Railways from 1890 to 1964.

History

The Class 1440 was an early steam locomotive operated in Japan. The type was ordered by the Kyushu Railway, with eight locomotives built by Krauss-Maffei. These were assigned as Class 15 locomotives and began service. The locomotives were later refined and improved, with Kyushu Railway ordering another twenty-one. Both were designated Class 15.

After the Railway Nationalization Act was passed in 1909, the locomotives were renumbered the Class 1440, while the improved locomotives were renumbered the Class 1400. The locomotives were retired by 1925 on the Kyushu Railway with all but one, 1413, sold to local railroads. These served these local railroads until 1964 when the last locomotives were retired and scrapped. Only one Class 1400 locomotive, 1412 (ex-Kyushu Railway 44), survives today, statically preserved at the head office of replica model manufacturer TomyTec in Tochigi. No Class 1440 locomotives have been preserved.

Preservation

The following Class 1440 locomotives have been preserved:

Number	Manufacturer	Date manufactured	Serial number	Date withdrawn	Location	Notes
1412	Krauss-Maffei	27 March 1896	3332	26 May 1925 (Kyushu/JGR) June 1971 (Kashima/Kantō)	TomyTec Factory, Mibu, Tochigi, Japan	Displayed outdoors, permission required for viewing; ex-Kyushu Railway, ex-Kashima Sangu Railway, ex-Kantō Railway
