JGR Class 1275

JGR Class 1275

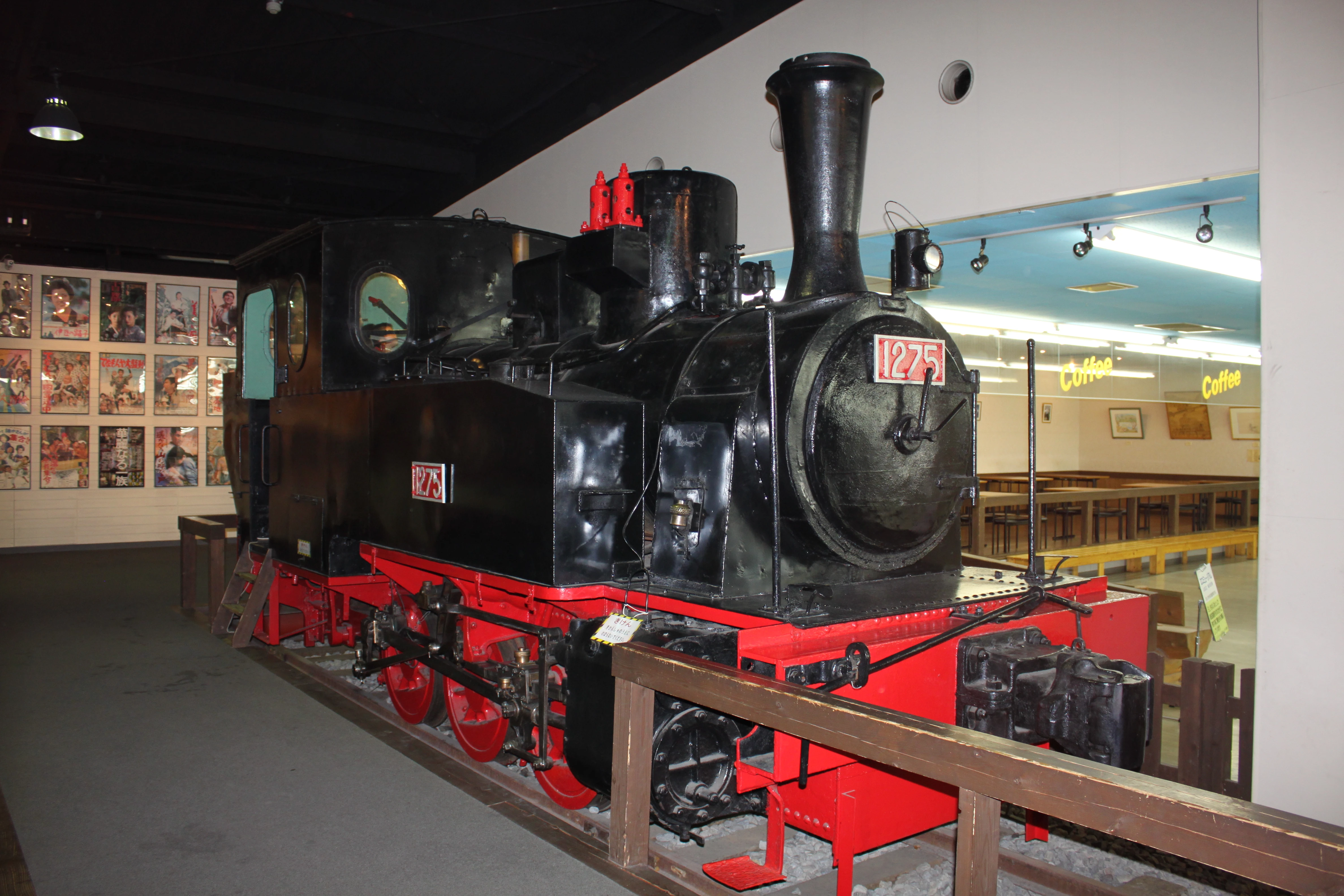

1275 in August 2010
Technical specifications
Serial number(s)	10312 – 10313, 10590, 10662
Manufacturer(s)	Orenstein & Koppel
Build date	1922 – 1923
Total produced	4
Classification	0-6-0T
Dimensions	6,998 mm × 2,235 mm × 3,325 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	12.4 kg/cm²
Fuel type	Coal
Heating area	42.6 m²
Service information
Years in-service	1922 – 31 March 1970
Running numbers	8, 1275 – 1277 (originally 1 – 3)
Disposition details
Preserved	1
Number operational	None
Number scrapped	3

The JGR Class 1275 (originally the Niigata Rinko Class A) is a 0-6-0T Switcher-type side tank steam locomotive operated by the Japanese Government Railways from 1922 to March 1970.

History

The Class 1275 was an early steam locomotive operated in Japan. The type was commissioned by the Niigata Rinko Railway, with four locomotives built by Orenstein & Koppel in Germany. Three were later assigned to the Niigata Rinko Railway, assigned the class A and numbered 1 through 3, while one was assigned to the Awa Railway, assigned the class 5 and numbered 8.

When the Niigata Rinko Railway was nationalized in 1941, the three class A locomotives were reclassified as the Class 1275. When the Awa Railway was nationalized in 1933, the locomotives were initially intended to be named the Class 1580, but as there was no formal policy for naming locomotives acquired by the JGR from private railroads, a special case was granted in this case; as a result, the locomotives were classified the Class A 5, with the "A" (read: "ah") being used to designate locomotives acquired from the Awa Railway. The locomotive was not used much in this form and was scrapped in 1937.

The JGR-affiliated locomotives had a long service life, being used well into the 1960s, only being retired in March 1970. The locomotives were then slowly scrapped from 1971, except 1275, which was purchased by the Ōigawa Railway that same year, and then underwent restoration to operating condition at Shin-Kanaya Works. 1275, along with locomotives 17 and 2109 were then used for excursion services around the line until 1275 was retired in 1989. Today, 1275 is the only member of its class preserved and is located at the Plaza Loco, near Shin-Kanaya Station on the Oigawa Railway.

Preservation

The following Class 1275 locomotives have been preserved:

Number	Manufacturer	Date manufactured	Serial number	Date withdrawn	Location	Notes
1275	Orenstein & Koppel	September 1922	10313	7 July 1943 (Niigata Rinko/JGR) 24 October 1970 (Nippon Steel)	Plaza Loco, Shimaza, Shizuoka, Japan	Displayed indoors near No. 1 Izumo and passenger cars SuRoFu 1 and SuRoFu 2; ex-Niigata Rinko Railway, ex-Nippon Steel Stainless Steel
