JGR Class 1030

JGR Class 1030

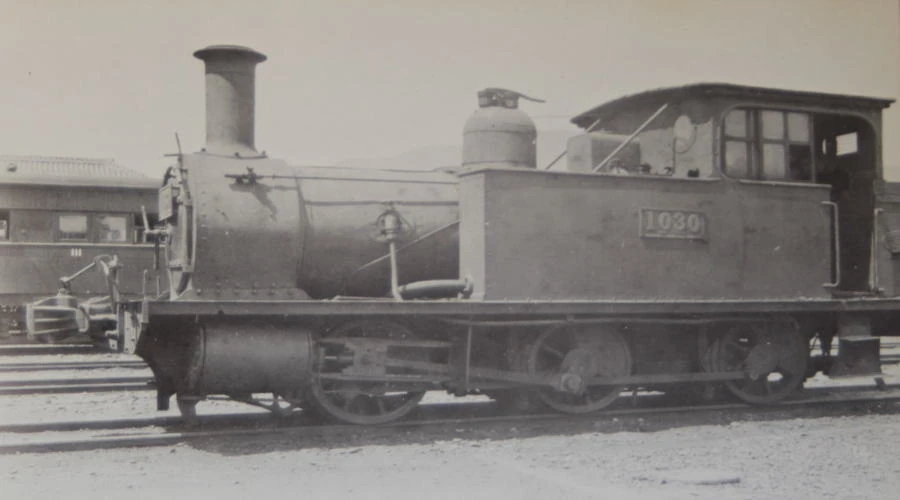

1030 at an unknown date
Technical specifications
Serial number(s)	1391
Manufacturer(s)	Avonside Engine Company
Build date	1898
Total produced	1
Classification	0-6-0T
Dimensions	7,061 mm × 2,204 mm × 3,081 mm
Rail gauge	3 ft 6 in (1,067 mm)
Valve gear	Stephenson
Cylinders	2
Boiler pressure	13.0 kg/cm²
Fuel type	Coal
Heating area	77.6 m²
Service information
Years in-service	1900 – 1937
Running numbers	1030 (originally 4)
Disposition details
Preserved	None
Number scrapped	1

The JGR Class 1030 (originally the Chūetsu Railway Class Kō 2) was a 0-6-0T Switcher-type side tank steam locomotive operated by the Japanese Government Railways from 1900 to the 1937.

History

The Class 1030 was an early steam locomotive operated in Japan. The type was constructed by the Avonside Engine Company and delivered in 1898. According to Avonside records, the locomotive was initially handed over to a trading company, the "China and Japan Trading Company", before being purchased by the Chūetsu Railway in 1900. The locomotive was assigned the class Kō 2 and began service the same year.

After the Railway Nationalization Act was passed in 1909, the locomotive was renumbered the Class 1030. The locomotive was then moved to the Awa Electric Railway in 1923 and remained there until 1937 when it was retired and scrapped.
