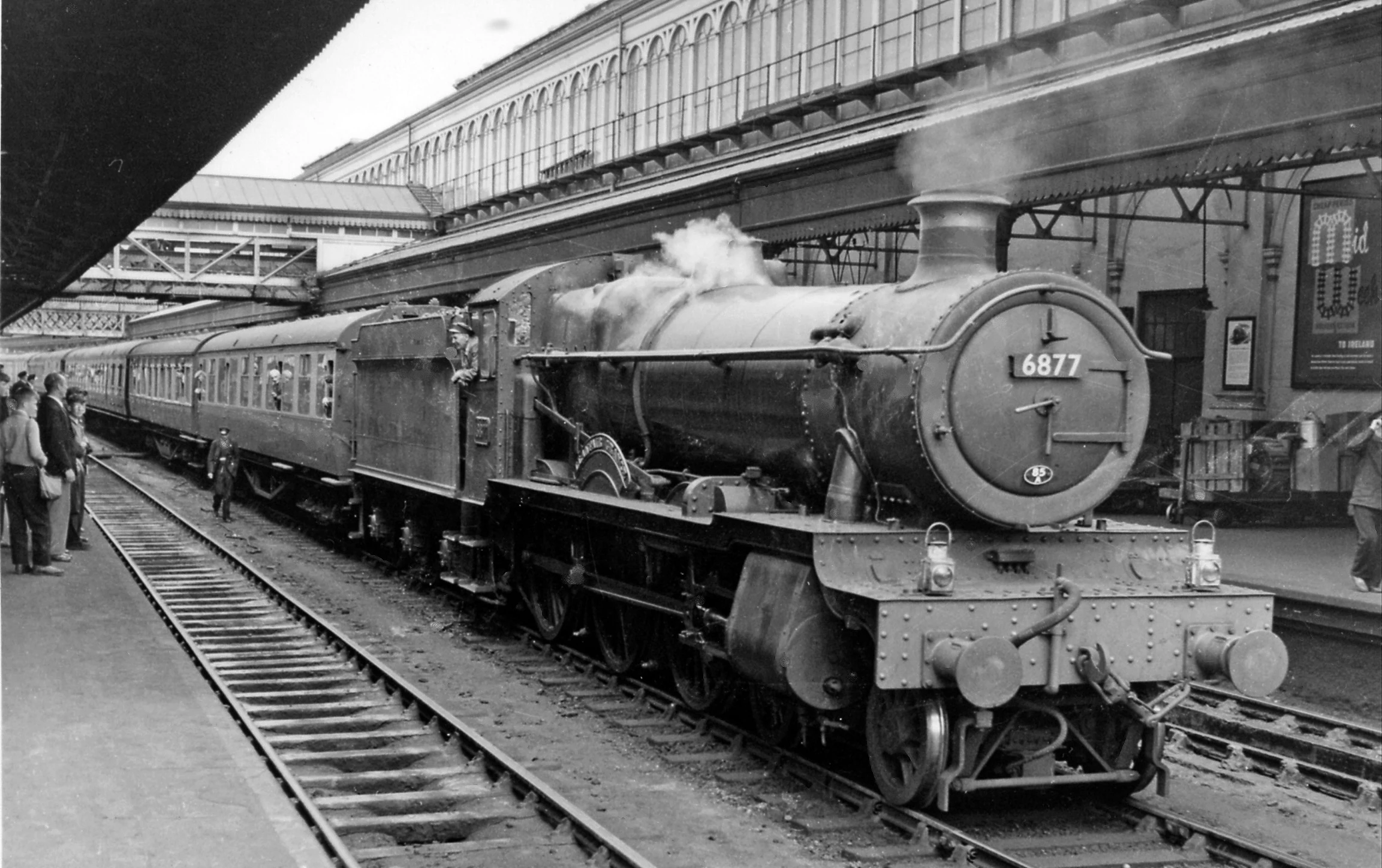

The Great Western Railway (GWR) 6800 Class or Grange Class was a mixed-traffic class of 4-6-0 steam locomotive, built to replace the GWR 4300 Class 2-6-0. There were 80 in the class, all built at the Swindon works, using some reconditioned parts from withdrawn 4300 Class locomotives.

Background[]

The GWR locomotive standardization policy pursued by George Jackson Churchward envisaged a range of locomotive classes which would be suitable for the majority of duties, and yet which would share a small number of standard components. Amongst the designs suggested in 1901 was a 4-6-0 with 5-foot-8-inch (1.727 m) diameter driving wheels, and the Standard No. 1 boiler. Although planned in 1901, none were built during Churchward's lifetime. C.B. Collett, (Churchward's successor at Swindon Works) rather introduced the Hall class with 6-foot (1.829 m) diameter driving wheels.

The 4300 Class of 2-6-0 tender locomotives had been introduced on the GWR for mixed traffic duties in 1911, and by 1932 there were 342 in service. However, by the mid 1930s some of the earlier examples were in need of attention and the class as a whole was struggling with some of the duties expected of them. Collett therefore revived the Churchward proposal, but modified the design to include a cab and controls to the current style. Between 1936 and 1939, one hundred 4300 Class were taken out of service and replaced by new 4-6-0 locomotives, eighty of which were of the 6800 (or Grange) class, whilst the remaining 20 were of the 7800 (or Manor) class. It had been intended to replace all of the 4300 Class in this way, but the Second World War stopped the programme.

Design and Production[]

The Granges were effectively a smaller-wheeled version of the Hall Class.

The wheels, valve motion and tenders were taken from the withdrawn engines, reconditioned and then used in the construction of the 100 new locomotives; the components from one old locomotive were spread amongst more than one of the new engines. The cylinders of the Granges were of the same size as those used on the 4300 Class, but the old cylinders could not be re-used because the cylinders and valves shared a common casting, and the new design called for the separation between cylinder and valve center lines to be increased by 2+1⁄2 inches (64 mm). This was done in order to make the cylinders level with the axles, but still allow the use of the old valve motion parts.

The locomotives were built in two batches to a single order (Lot No. 308): Nos. 6800-6859 were built between August 1936 and December 1937, and Nos. 6860-6879 appeared between February and May 1939. They were all named after Granges in the area covered by the GWR. Further construction of the class was cancelled due to the outbreak of war. They were originally fitted with Churchward 3,500 imp gal (16,000 l; 4,200 US gal) tenders taken from withdrawn members of the 4300 Class. However, after the second world war several were fitted with newer 3,500 imp gal (16,000 l; 4,200 US gal) and 4,000 imp gal (18,000 l; 4,800 US gal) types.

Performance[]

Although built to a thirty five-year-old design, in service they proved to be reliable performers. With their power and mixed traffic characteristics they could handle most duties on the network. Their smaller driving wheels giving them a higher tractive effort than the Hall Class. They were often used for the haulage of perishable goods, such as fruit and broccoli, and for excursion trains. However their axle loading prevented their use on some cross-country routes previously operated by the 4300 class. As a result, a lighter version in the form of the Manor Class was introduced for these duties.

Swindon Works 'Grange' 4-6-0 geograph-2920419-by-Ben-Brooksbank

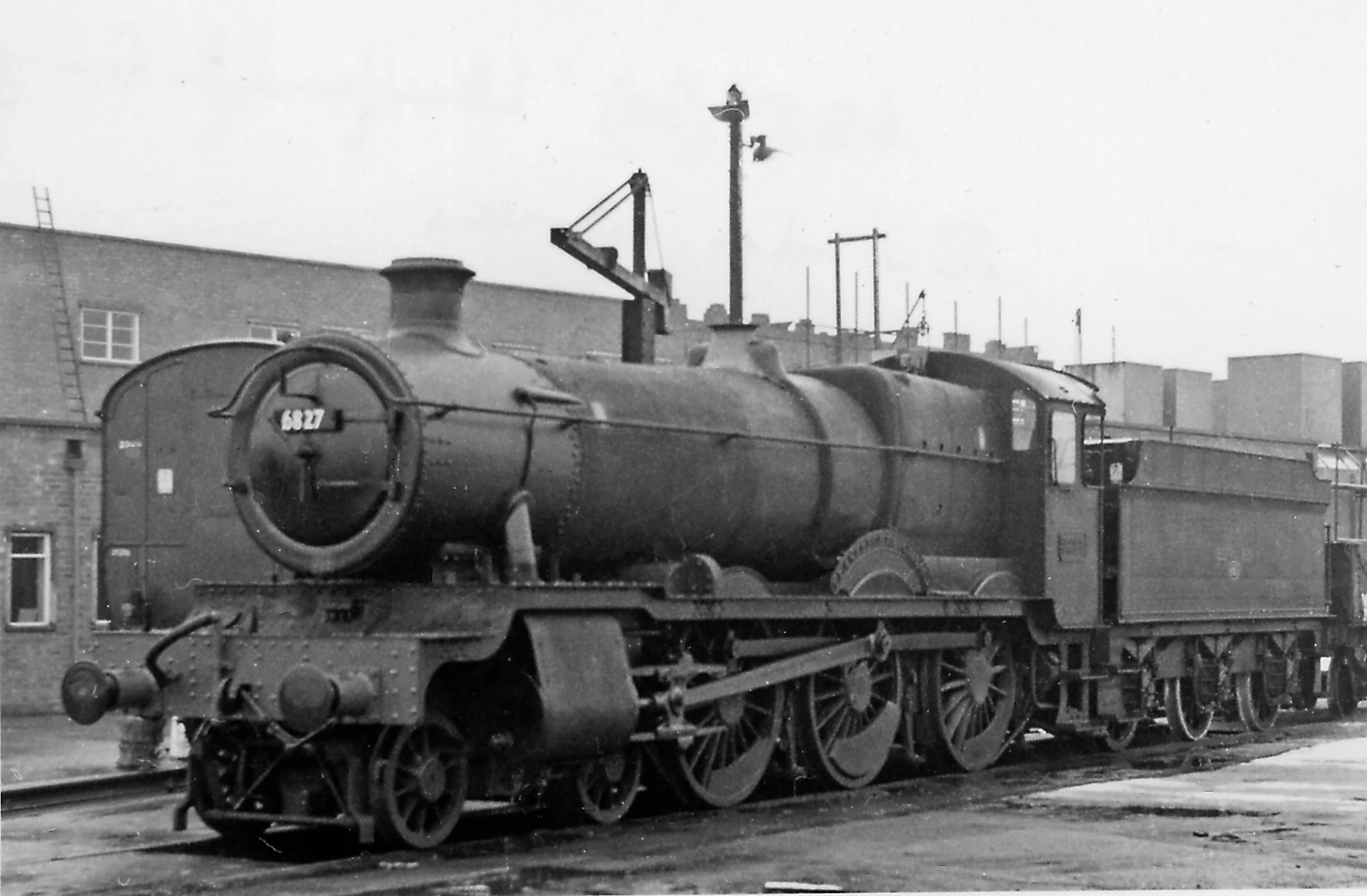

No. 6827 'Llanfrechfa Grange' at Swindon Works 29 November 1964.

The BR power classification of the Grange class was 5MT, its GWR power class was D and its route availability colour code was red.

Accidents[]

  • On 21 September 1962, 6800 Arlington Grange was hauling a freight train which overran signals at Steventon and was derailed.

Withdrawal and Preservation[]

The entire class was withdrawn from service between 1960 and 1965 and no examples were preserved. 6853 Morehampton Grange was a candidate for preservation by the GWS at Didcot, but Manor class 7808 Cookham Manor was purchased instead. However, GWR 6880 Betton Grange, the next Grange that was due to be built originally, was constructed between approximately 2005 and 2022 at the Llangollen Railway and Tyseley Locomotive Works.

Table of withdrawals
Year Quantity in
service at
start of year
Number withdrawn Quantity
withdrawn
Locomotive numbers
1960 80 1 1 6801.
1961 79 2 3 6802/05.
1962 77 1 4 6865.
1963 76 5 9 6807/09/14/28/35.
1964 71 26 35 6800/04/06/08/10–11/18/21–22/24–25/32/34/39/42–46/50/52/63/67/73/75/78.
1965 45 45 80 6803/12–13/15–17/19–20/23/26–27/29–31/33/36–38/40–41/47–49/51/53–62/64/66/68–72/74/76–77/79.
