Ffestiniog Railway No.9 'Taliesin'

Taliesin was an 0-4-4T Single Fairlie locomotive built for the Festiniog Railway in 1876. It was completely rebuilt between 1898 and 1900. Over subsequent years the locomotive fell into increasing disrepair and was dismantled in preparation for a new boiler in 1924. However, despite recommendations from the Locomotive Superintendent and Engineer, the Board refused to purchase a boiler. Boyd states that Taliesin was reassembled with its existing boiler, but the archives have no record of this. The remains were later scrapped.

The name is that of a legendary Head Bard to Prince Elffin, who maybe lived around 520-560 A.D. The name means 'fair-brow'; it can also mean 'fair pay' or 'reward.' The story is that William Williams (a bard himself, Gwilym Meirion) persuaded the FR Board that the legendary bard was just the name for the loco, but as there was a pay dispute between the Board and their staff at the time, it gave some glee to the men seeing the loco puffing up the line displaying the brass plate 'Fair Pay.'

History

1876-1898: Building and early modifications

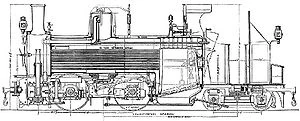

General arrangement drawing as built

Taliesin was built by the Vulcan Foundry in 1876 (works no. 791), and originally carried the number 9. The design featured a power bogie similar to those under James Spooner but with changes to the steam pipes and the use of coil springs as later used on Merddin Emrys. Unlike previous FR locomotives that had open footplates, Taliesin was fitted with a half cab at the front and the rear of the footplate had a large weather board providing protection for the crew when running in reverse.

It had its first run on 10 August 1876, double heading with Little Giant, and was put into service on 17 August. As built Taliesin was found to be at the limits of the loading gauge. The upper part of the cab was modified in November of that year after "damage at tunnel". The new cab was narrower above the tanks, a profile later adopted for use on the double engines. Some of the problems were due to excessive rolling and various attempts were made to change the suspension of the rear bogie until in August 1877 the original inside framed trailing bogie was rebuilt with external frames providing a wider base for the suspension to cure the tendency to roll. Both the original and rebuilt rear bogie had brakes, the latter having drum brakes ("3 new cast iron brake drums & wrought iron brake straps fitted on" being noted in July 1881). There is no date given for their removal, but the last record of their maintenance was in 1884.

The locomotive was heavily used and consequently was damaged quite often: in September 1877, November 1878 & September 1880. The bunker was enlarged in 1878 and a balance weight was fitted between the bogie frames in 1879. In 1880 it is reported that, "Owing to the use of inferior coal, the tubes are deteriorated and will have to be replaced shortly, the tube plate is cracked and gives some trouble..."

In July 1881 the main coil springs were replaced with conventional leaf springs. In December 1881 it was re-tubed and the original sandboxes were replaced with those of the 'standard' FR pattern. The tanks were altered to give more water space. In February 1882 it was derailed on the Cob by a stone being left between the point blade and the stock rail. It took 4 days to repair. From 1883 Taliesin was renumbered as No. 7, (Little Wonder, the previous No. 7, the first FR Double Fairlie, having been condemned on 6 December 1882. Also in this year a canvas cover was provided for the cab.

1884 saw the bogie frame starting to crack and being patched with a steel plate. The tyres were replaced and the cab was cut down by an inch and a quarter.

In 1886 it was damaged at Tan-y-Bwlch and needed a new cast iron buffer end & buffer. Two hinged doors were fitted to the cab in December of that year.

In February 1887 the dome was polished (it had been painted to this point) and the two small brass handrails added to the smokebox "for sanding".

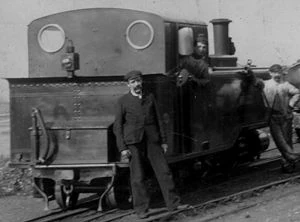

Taliesin at Duffws c1880

In June 1887 it is recorded as being "In working order but in need of heavy repairs". In November the firebox was patched, the carrier frame was lowered and strengthened, the main bogie frame was repaired with a steel plate "above Horn plate gab", new connecting and coupling rods were provided and an all over cab was fitted. The work was completed by 16 December 1887.

In 1888 a new exhaust arrangement was trialled and the firebox needed further repairs.

Bleasdale's photograph of Taliesin in 1887

In 1890 a new balancing pipe was fixed between the two water tanks. The rear bogie wheels (which were braked) had worn down so far that a quarter inch plate was inserted between bogie and superstructure. The wheels were replaced in 1891 and the main bogie frame was patched and the smokebox & chimney were replaced.

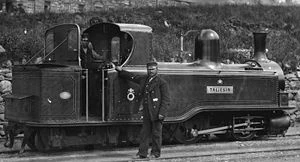

Taliesin at Duffws c1888 with all over cab

In February 1893 it came off the line "at Portmadoc Points" and in the subsequent repairs a vacuum brake was put on. However it broke down in September, the frames and cylinders were replaced, returning to service in March 1894. The boiler now was giving concern. "Top of firebox wasted away considerably" was noted in 1895 and a further patch was put on the boiler in 1896. 75 new ferrules were put in the tubes in 1897 and the 3 handrails on the smokebox were replaced by the single 'all round' handrail.

It is noted the loco was "taken to pieces Sep 30th 1898".

1898-1924: Rebuilt with new boiler and eventual decline

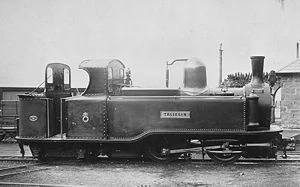

Taliesin in the early 1900s

Between 1898 and 1900 Taliesin was completely rebuilt with larger tanks, a new steel boiler from the Vulcan Foundry costing £295, a more enclosed cab and new smokebox. The rebuild should have been completed in 1899 and the Boston Lodge foundry cast suitably dated works plates in anticipation. However, they had not bargained with a mini-hurricane that struck the North Wales coast in November 1899 and completely demolished the wooden framed and corrugated-iron clad Boston Lodge Erecting Shop, inside which was Taliesin. Rebuilding the workshop delayed the final stages of the overhaul and, despite the date on the rebuild plates, Taliesin did not re-enter service until May 1900. Trial runs were made through Moelwyn Tunnel to test whether the crew could escape from the new cab in 1901.

The boiler was retubed in 1903 with the original tubes "eaten away by sulphur in the coal". The driving wheels were re-tyred by Cammell & Laird in 1905.

In 1909 it had a major overhaul, the boiler was patched and the tubes were examined and "found safe for a while". The boiler was tested hydraulically to 150lbs but working pressure was 135 lbs. In 1911 a new steam connection was made for the injector because the steam was not dry enough in the previous position.

In 1916 as part of a report from the Locomotive Superintendent to the Company Board a retube of the boiler was recommended. By 1923 the working pressure was down to 120lbs and the description was "Engine poor, Boiler bad".

1924-Present: Boiler condemned, eventual scrapping and legacy

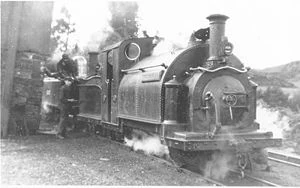

Welsh Pony and Taliesin at Tan-y-Bwlch in the 1920s

In 1924 the boiler was condemned and the locomotive was dismantled for a new boiler to be fitted. The Vulcan Foundry tendered for a replacement, but the Board refused to sanction the purchase although recommended by the Locomotive Superintendent and the Engineer. Boyd claimed the engine was re-erected with the condemned boiler. There is no evidence in the archives for this. Part of the boiler barrel was earmarked for reuse on Palmerston but an accident with the tender from Welsh Pony in August 1924 pushed the boiler through the back of the old engine shed and so it was too damaged for re-use. The chimney was also broken and Welsh Pony's tender damaged.

Taliesin was effectively withdrawn in 1932 when the name was transferred to the engine previously known as Livingston Thompson. The boiler was scrapped in 1935 and the maintenance records log the scrapping of what remained in 1937. Of the original locomotive, the reversing lever has survived to be used again, and the eccentrics were put onto Linda in the 1960s. A set of surviving Fairlie wheels may well be from this loco.

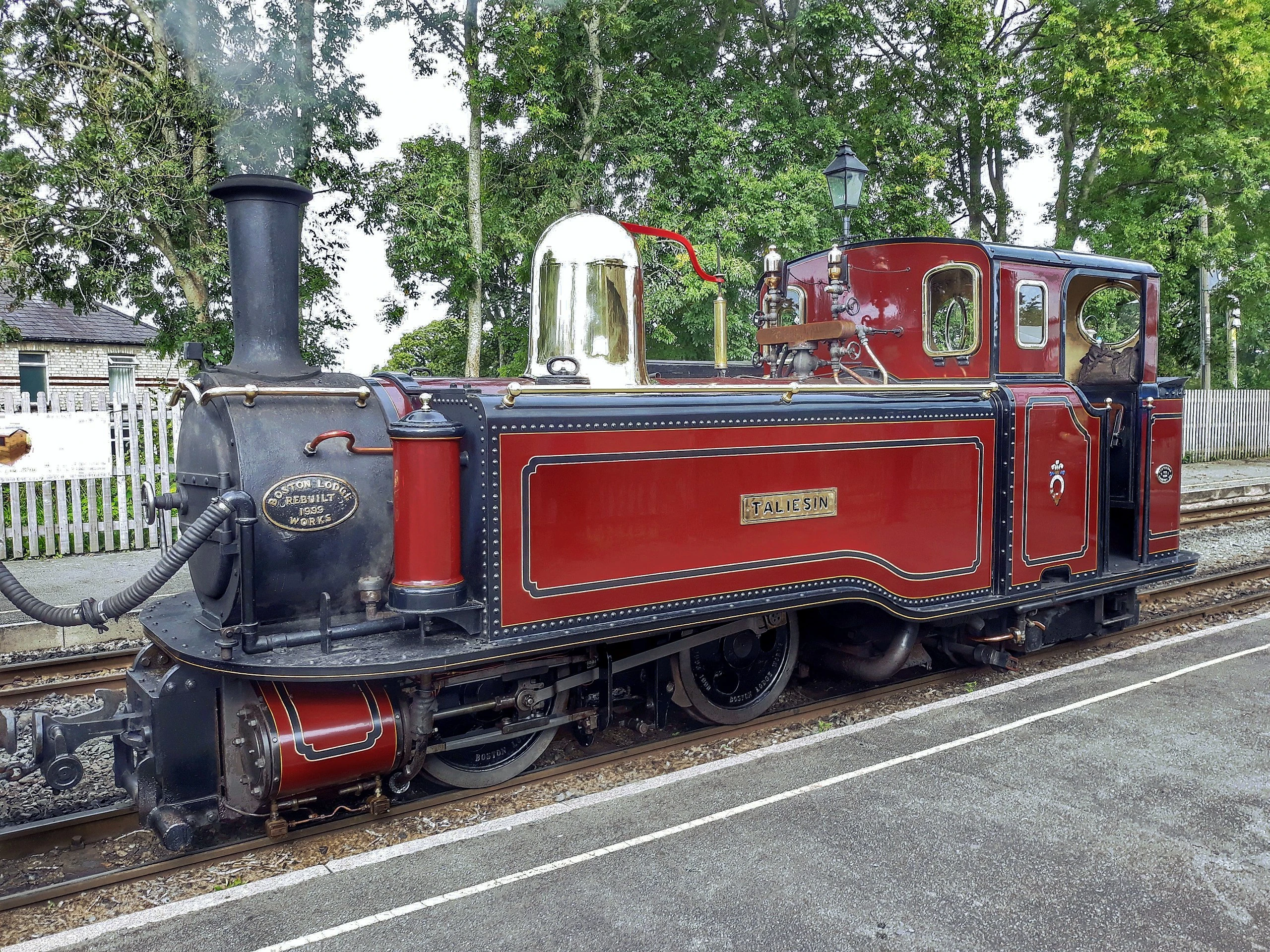

The name Taliesin was revived again in 1999 when original parts which hadn't been scrapped were used in a semi new build creating a replica of Taliesin.
