Class 925 Shinkansen

Class 925 Shinkansen
Set S2 in 2001
Technical specifications
Manufacturer(s)	S1: Kawasaki Heavy Industries, Kinki Sharyo, Nippon Sharyo S2: Hitachi, Kawasaki Heavy Industries, Kinki Sharyo, Nippon Sharyo, Tokyu Car Corporation
Type of locomotive	Electric multiple unit
Family name	Doctor Yellow
Constructed	S1: 1979 S2: 1979 (converted 1983 to become Class 925 set)
Number built	14 cars (2 sets)
Dimensions	984 in (25,000 mm) (end cars) × 133 in (3,380 mm) × Unknown (S2)
Gauge	1,435 mm (4 ft 8½ in)
Power supply	Pantograph
Electric system(s)	25 kV AC (50/60 Hz)
Traction system	Thyristor drive
Service information
In service	S1: November 1979 – 2001 S2: 1983 – 25 September 2002
Formation	7 cars per set
Number in service	None
Fleet numbers	S1 – S2
Preservation information
Preserved	None
Number scrapped	14 cars

The Class 925 Shinkansen was a Japanese non-revenue earning high-speed electric multiple unit operated by the Japanese National Railways and its successor the East Japan Railway Company from November 1979 to September 2002. These were the first and only generation of Doctor Yellow trains operated by JR East.

History

The first Class 925 set, set S1 (designated the 925-0), was delivered in 1979; it was not based on any existing technology and was a completely new build. The set was retired in 2001 and scrapped with the introduction of the E926 Series Shinkansen.

A second Class 925 set, set S2 (designated the925-10), was converted from the former Class 962 Shinkansen set. The set was retired from service on 25 September 2002, but was only officially retired on 25 January 2003 and scrapped.

No Class 925 cars have been preserved.

Design

The Class 925 looked rather similar to the 0 Series Shinkansen and the soon-to-be-produced 200 Series Shinkansen; in fact, set S2 was the prototype of the 200 Series cars before it was converted into a dedicated test train.

S1 was initially painted in ivory with green stripes, the same color as the 200 Series Shinkansen sets, before it received its yellow paint scheme in February 1983.

Specifications

Very little information is available on the Class 925 Shinkansen, so it can be assumed it used very similar equipment to that of the similar Class 922 Shinkansen that operated on JR West lines.

Gallery

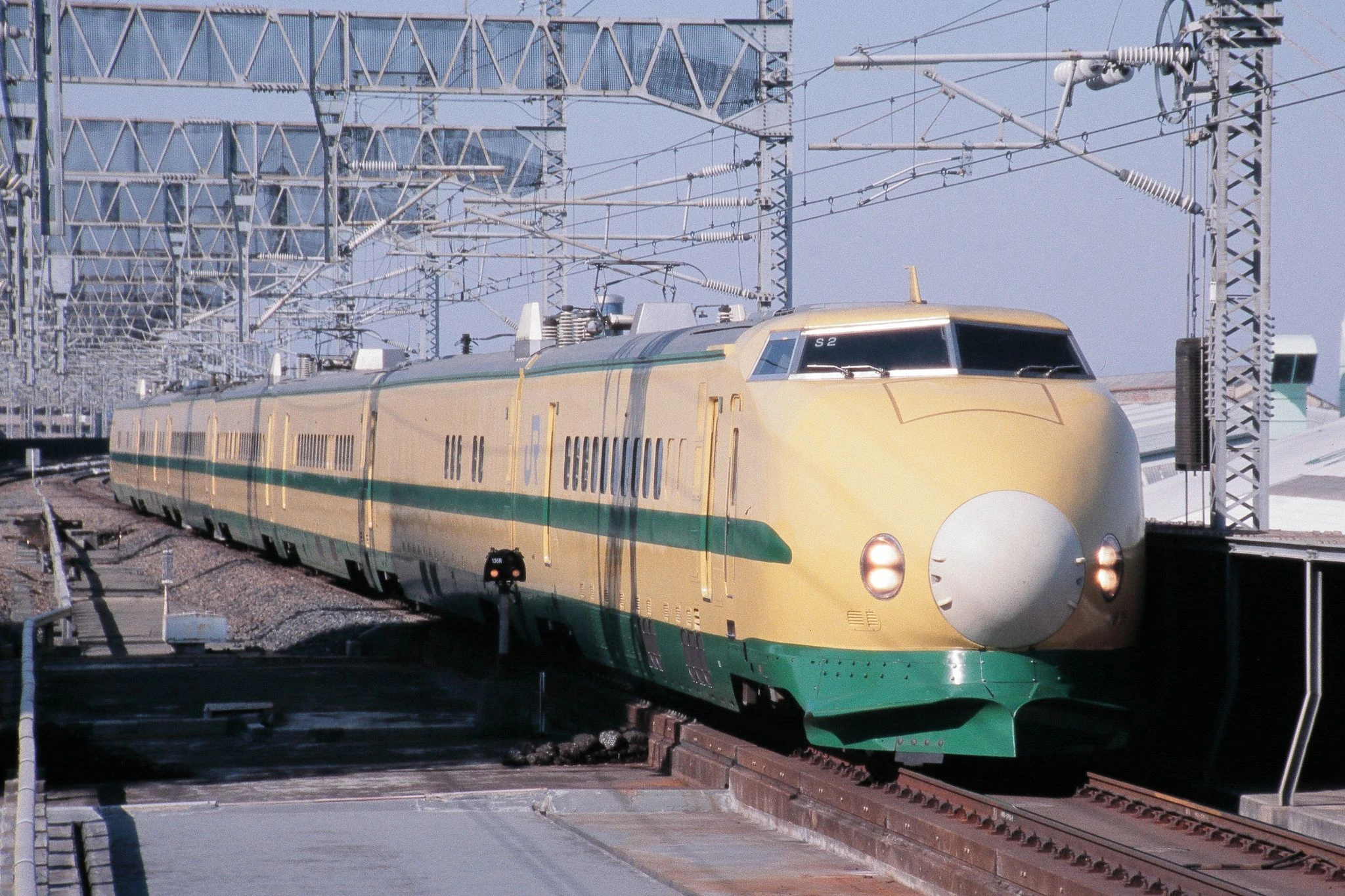

S1 at Sendai Shinkansen Depot circa 1987
