The BR Standard steam locomotives were an effort to standardize locomotives from the motley collection of older pre-grouping locos. Construction started in 1951. Due to the controversial British Railways' modernization plan of 1955, where steam traction was abandoned in favour of diesel and electric traction, many of the locomotives' working lives were very short: between 7 and 17 years. Many have been preserved, mainly due to their having been sent to Barry Scrapyard.

ex-WD Austerity engines[]

The first BR standards were the BR ex-WD Austerity 2-8-0 and BR ex-WD Austerity 2-10-0s. They were given the numbers 90000-732 and 90750-774. They were assigned the boiler types BR10 and BR11, and both had the tender type BR5.

Background[]

Robert Riddles put his case for continuing to build steam locomotives in his presidential address to the Institution of Locomotive Engineers in November 1950. He compared capital costs to show that steam was cheaper than the alternatives, though he did not mention productivity differences, except to say fuel costs did not rank very high relative to total costs. For example, a Class 5 cost £16,000, compared to £78,100 for a 1,600 h. p. diesel, £138,700 for a gas turbine, or £37,400 for electric. He calculated the costs per drawbar horse power as £13 6s (steam), £65 (diesel), £69 7s (turbine) and £17 13s (electric). Riddles retired in 1953.

Design[]

From 1951, BR started to build steam locomotives to its own standard designs, which were largely based on LMS practice but incorporating ideas and modifications from the other constituent companies and America. Their design was overseen by Riddles.

Characteristic features were taper boilers, high running plates, two cylinders and streamlined cabs.

Construction[]

Although more were ordered, 999 BR "Standards" were constructed: the last, 92220 Evening Star, was built in 1960. Most never achieved their potential service life and were withdrawn in working order.

Construction was split between the ex-LMS works at Crewe, Derby and Horwich, the ex-LNER works at Darlington and Doncaster, the ex-GWR works at Swindon, and the ex-SR works at Brighton.

Classification Numbers Power class Wheel arr. Quantity built Years built RA Tenders types Image
Class 7 (Britannia) 70000–054 7MT 06424-6-2 55 1951–54 8 BR1, BR1A, BR1D OliverCromwell
Class 8 (Duke of Gloucester) 71000 8P 06424-6-2 1 1954 8 BR1E until 1957, BR1J thereafter 1024px-Hughllewelyn71000
Class 6 (Clan) 72000–009 6P5F 06424-6-2 10 1952 8 BR1 D1d8e05448a4610b82890598a4273e98--steam-locomotive
Class 5 73000–171 5MT 06404-6-0 172 1951–57 7 BR1, BR1B, BR1C, BR1F, BR1G, BR1H 24249937544 53c04a6b6f b
Class 4 4-6-0 75000–079 4MT 06404-6-0 80 1951–57 4 BR2, BR2A File:75029 at Grosmont (1).jpg
Class 4 2-6-0 76000–114 4MT 06202-6-0 115 1952–57 4 BR2, BR2A, BR1B File:F8b7cf9d622ca874cf026e7070157ba3.jpg
Class 3 77000–019 3MT 06202-6-0 20 1953 4 BR2A File:77017-kilmarnock-july-1966.webp
Class 2 78000–064 2MT 06202-6-0 65 1952–56 3 BR3 Minehead - 78018 arrived from Norton Fitzwarren
Class 4 Tank 80000–154 4MT 0624T2-6-4T 155 1951–57 5 File:A8a407b1dfd9715ce37c2523d7cf9203.jpg
Class 3 Tank 82000–044 3MT 0622T2-6-2T 45 1951–53 4 File:Crewe Station, south end, with BR Standard 2-6-2T geograph-2820786-by-Ben-Brooksbank.png
Class 2 Tank 84000–029 2MT 0622T2-6-2T 30 1953–57 3 File:Kirkham & Wesham BR Standard 2MT 2-6-2T geograph-2821170-by-Ben-Brooksbank Colorized.png
Class 9F 92000–250 9F 10202-10-0 251 1954–60 9 BR1B, BR1C, BD1F, BR1G File:92130-carlisle-october-1965.jpg
Total 999 1951–60

Tenders[]

File:Chester 7 general railway station geograph-2170968-by-Ben-Brooksbank.jpg

Std 4 2-6-0 number 76089 with a BR2A tender.

The tenders used with the Standard locomotives were also new designs. There were different types due to the use of different coal-to-water ratios, weight restrictions and later improved designs. It was standard practice for there to be fewer tenders than locomotives, as tenders took little time to overhaul compared to locomotives, locomotives entering works for overhaul would tend to lose their tenders to locomotives leaving works after overhaul.

Tender Type Quantity built Years built Coal (long tons) Water (imp.gal.) Weight full (long tons) RA Used with Classes Notes
BR1 100 1951–53 7 4,250 49.15 8, 7, 6
BR1A 5 1952 7 5,000 52.50 7 5,000-gallon version of BR1
BR1B 114 1955–57 7 4,725 51.25 5, 4 (4-6-0), 4 (2-6-0), 9F
BR1C 123 1954–58 9 4,725 53.25 5, 7 9-ton version of BR1B
BR1D 10 1954 9 4,725 54.50 7 BR1C with coal pusher
BR1E 1 1954 10 4,725 55.50 8 10-ton version of BR1D. Rebuilt to BR1C in 1958
BR1F 95 1954–58 7 5,625 55.25 5, 9F
BR1G 61 1954–60 7 5,000 52.50 5, 9F BR1A updated with fall plate
BR1H 12 1954 7 4,250 49.15 5 BR1 updated with fall plate
BR1J 1 1958 10 4,325 53.70 8
BR1K 3 1958 9 4,325 52.35 9F Fitted with mechanical stokers. Rebuilt to BR1C in 1961
BR2 95 1951–54 6 3,500 42.15 4 (4-6-0), 4 (2-6-0)
BR2A 88 1954–57 6 3,500 42.15 4 (4-6-0), 4 (2-6-0), 3 BR2 updated with fall plate
BR3 65 1952–56 4 3,000 36.85 2 Updated version of LMS equivalent
Total 773

Preservation[]

A total of 46 standards have survived - of these, 38 were rescued from Woodham Brothers scrapyard in Wales. The BR Standard Locomotive Owner's Group provides co-ordination.

Class No. preserved Percentage preserved Numbers Notes
7 (Britannia) 2 3.6% 70000/13
8 (Duke of Gloucester) 1 100% 71000 71000 has Caprotti valve gear
6 (Clan) 0 0% Replica 72010 "Hengist" under construction

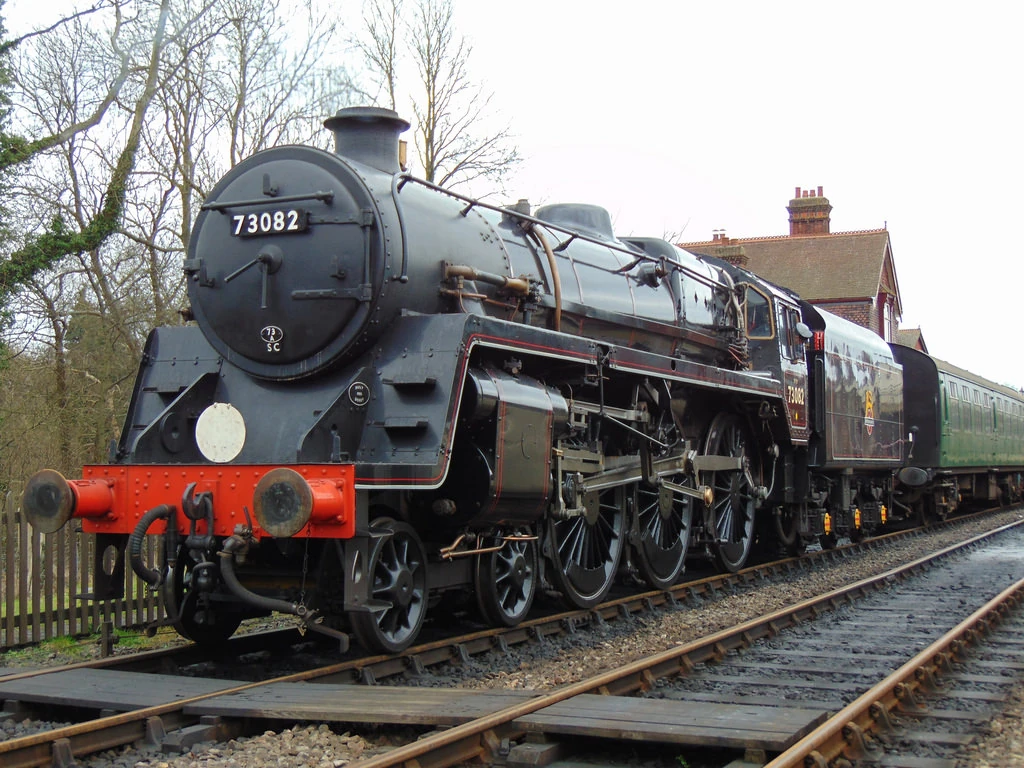

5MT 5 2.9% 73050/82/96, 73129/56 73129 has Caprotti valve gear
4MT 4-6-0 6 7.5% 75014/27/29/69/78/79
4MT 2-6-0 4 3.5% 76017/77/79/84
3MT 2-6-0 0 0%
2MT 2-6-0 4 6.2% 78018/19/22/59 78059 being rebuilt to a tank version as '84030'
4MT 2-6-4T 15 11.6% 80002/64/72/78/79/80/97/98, 80100/04/05/35/36/50/51
3MT 2-6-2T 0 0% Replica 82045 under construction
2MT 2-6-2T 0 0% One being rebuilt from a standard 2-6-0.
9F 9 3.6% 92134, 92203/07/12/14/19/20/40/45
Total 46 4.6%

New Builds[]

The new build of the 'Clan' class 72010 "Hengist" is progressing steadily. The new build of the Class 3 Tank 82045 is well underway, work continues as of 2021.
