WheelArrangement 2-10-4

Schematic of 2-10-4 steam locomotive wheel arrangement. (Front of locomotive at left)

Atsf2-10-4

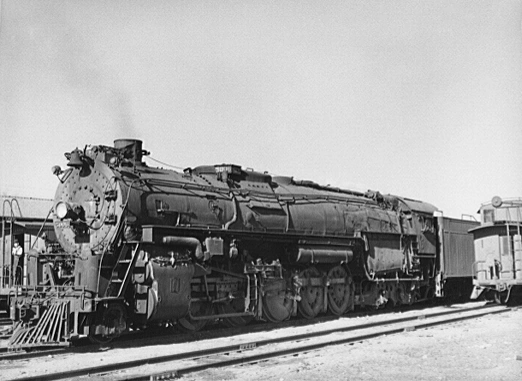

ATSF 5001 Class Texas type

Under the Whyte notation for the classification of steam locomotives, a 2-10-4 locomotive has two leading wheels on one axle, usually in a Bissel truck, ten coupled driving wheels on five axles, and four trailing wheels on two axles, usually in a bogie. These were referred to as the Texas type in most of the United States, the Colorado type on the Burlington Route and the Selkirk type in Canada.

Overview[]

The 2-10-4 Texas wheel arrangement originated and was principally used in the United States. The evolution of this locomotive type began as a 2-10-2 Santa Fe type with a larger four-wheeled trailing truck that would allow an enlarged firebox. A subsequent development was as an elongated 2-8-4 Berkshire type that required extra driving wheels to remain within axle load limits. Examples of both of these evolutionary progressions can be found.

Some 2-10-4 tank locomotives also existed in eastern Europe. One extraordinary experimental 2-10-4 tender locomotive, built in the Soviet Union, had an opposed piston drive system.

Usage[]

Belgian Congo[]

File:CF du Bas-Congo 2-10-4 801.jpg

No. 801 dumped at Lubumbashi

The Texas type was rare in Africa. One locomotive, numbered 801, was built for the CF du Bas-Congo au Katanga by Société Anonyme John Cockerill in 1939. It had 540 by 550 millimetres (21 by 22 inches) cylinders and 1,100 millimetres (43 inches) diameter driving wheels, with a working order mass of 107.8 tonnes (106.1 long tons; 118.8 short tons), a grate area of 5.4 square metres (58 square feet) and a tractive effort at 65% boiler pressure of 14,690 kilograms-force (144,100 newtons; 32,400 pounds-force). The locomotive is believed to have been built for the line between Bukama and Kamina and accumulated 1,200,000 kilometres (750,000 miles) during its service lifetime. Even with its large size, it was hand-fired and had two firebox doors, with two firemen being carried.

Brazil[]

Outside North America, the 2-10-4 was rare. In South America, the Central Railway of Brazil ordered seventeen 1,000 mm (3 ft 3+3⁄8 in) metre gauge 2-10-4 locomotives, ten from Baldwin which were delivered in 1940, and another seven from the American Locomotive Company which were delivered in 1947.

Canada[]

The Canadian Pacific (CP) Selkirk locomotives were all built by Montreal Locomotive Works (MLW). The first twenty of these large engines were built in 1929, designated T1a class and allocated numbers 5900 to 5919. Their Canadian type name was after the Selkirk Mountains across which they were placed in service, the railway summit of which was located just inside the western portal of the Connaught Tunnel beneath Rogers Pass.

File:Canadian Pacific Selkirk class 5927 takes on oil at the South Edmonton shops.jpg

Canadian Pacific T1c, 1957

MLW built another ten of these successful locomotives for CP during November and December 1938, designated T1b class and numbered from 5920 to 5929. Modifications to the original design led to the T1b being ten tonnes lighter while its operating steam pressure was increased from 275 to 285 pounds per square inch (1,900 to 1,970 kilopascals).

A further six Selkirks, classed T1c and numbered from 5930 to 5935, were delivered by MLW in 1949. They were the last standard gauge steam locomotives to be built in Canada for a Canadian railway. These were very similar to the T1b class, apart from a few refinements which included two cross-compound air compressors to speed up recharging of the air brake system, and some small streamlining touches were added, such as the streamlined casing around the smokebox stack as well as the teardrop shape of the classification lights. These streamlined features were also seen on the CP Royal Hudsons. In addition, the inside of the cabs was no longer insulated in the same manner as the previous versions, which had provided better cold-weather cab insulation and were better liked by crews. The last Selkirks were taken out of service in 1959. These were the most powerful steam locomotives in the British Empire.

Japan[]

In 1948, the JGR built five Class E10 tank locomotives for the purpose of supplementing the aging Class 4110 (0-10-0) in Itaya Pass on the Ou Main Line for a short time until electrification. E10 2 is statically stored.

South Africa[]

File:Class 21 no. 2551 (2-10-4) a.jpg

SAR Class 21, c. 1937

In 1937, the South African Railways (SAR) placed one 3 ft 6 in (1,067 mm) Cape gauge Class 21 steam locomotive with a Texas wheel arrangement in service, designed as a mixed traffic locomotive suitable for light rail. It was designed by A.G. Watson, Chief Mechanical Engineer of the SAR from 1929 to 1936, and built by the North British Locomotive Company in Glasgow. Only the one locomotive was built, at the time representing the maximum power obtainable on Cape gauge from a ten-coupled non-articulated locomotive that was limited to a 15 long tons (15.2 tonnes) axle load on 60 pounds per yard (30 kilograms per metre) rail. To enable it to negotiate tight curves, the third and fourth sets of coupled wheels were flangeless.

The locomotive's Type FT tender was an unusual experimental type using six pairs of wheels in a 2-8-2 wheel arrangement, with the leading and trailing wheels in bissel type pony trucks and the rest of the axles mounted with a rigid wheelbase. A similar Type JV tender had been built in the Salt River shops in Cape Town in 1936 for test purposes and as a prototype to the Type FT. The tender's wheel arrangement did not prove to be very successful, however, and was not used again.

Soviet Union[]

File:The Soviet-built opposed-piston 2-10-4 of 1949.jpg

Soviet class OR23, c. 1949

There were two Texas-type locomotives built in the USSR. One, the class OR23, built in 1949 by the locomotive works in Ulan Ude, had cylinders that were placed above the center driving axle. Unlike nearly all steam locomotives, the pistons had rods on both ends which transferred power to the wheels. The idea was to balance the driving forces on the wheels, allowing the counterweights on the wheels to be smaller and reducing hammer blow on the track. Test runs showed, however, that the OR23 design was unsuitable as a practical locomotive. The locomotive was never used for more than testing and was returned to its builder and scrapped.

United States[]

Atchison, Topeka and Santa Fe Railway[]

The Atchison, Topeka and Santa Fe Railway (ATSF) took delivery of locomotive No. 3829 from the Baldwin Locomotive Works in 1919. It was used by Santa Fe as an experimental locomotive and was rostered as a member of ATSF's 3800 class of 2-10-2s that was fitted with a four-wheel trailing truck. Nearly 100 more 3800 class locomotives were delivered after No. 3829, but all with the 2-10-2 wheel arrangement. Photographs exist that show No. 3829 fitted with at least two different designs of four-wheel trailing truck through the years. No other members of the 3800 class have been documented with four-wheel trailing trucks. No. 3829 was scrapped in 1955, still equipped with a four-wheel trailing truck.

File:ATSF 5000 Madam Queen.jpg

ATSF 2-10-4 No. 5000 Madame Queen

Santa Fe, who had originated the 2-10-4 type, adopted it again in 1930 with No. 5000, nicknamed Madame Queen. This locomotive was similar to the C&O T-1, with the same 69-inch (1,750-millimetre) drivers but with 300 pounds per square inch (2.1 megapascals) boiler pressure and 60% limited cutoff. It proved the viability of the type on the Santa Fe railway, but the Great Depression shelved plans to acquire more.

In 1938, with the railroad's fortunes improving, Santa Fe acquired ten more 2-10-4 locomotives. These came with 74-inch (1,880-millimetre) diameter drivers and 310 pounds per square inch (2.1 megapascals) boiler pressure, making these ATSF 2-10-4s the fastest and most modern of all.

Of the original order of ten, five were oil-burning and five coal-burning, but when Santa Fe ordered twenty-five more for delivery in 1944, all were delivered equipped to burn oil. The first of the 1944 batch produced 5,600 drawbar horsepower (4.2 MW) on road test, the highest figure known for a two-cylinder steam locomotive.

Texas and Pacific[]

The 2-10-4 type was revived in 1925 by the Lima Locomotive Works. This time it was an expansion of the 2-8-4 Berkshire type that Lima had pioneered. A version of the Berkshire with ten driving wheels instead of eight was an obvious development and the first to be delivered were to the Texas and Pacific Railway, after which the type was subsequently named. The four-wheel trailing truck allowed a much larger firebox and thus a greater ability to generate heat, and thus steam. The Superpower design, as Lima's marketing department called it, resulted in a locomotive that could develop great power at speed while not running out of steam-generating ability.

Bessemer and Lake Erie[]

Baldwin built a fleet of forty-seven H-1 class 2-10-4s for the Bessemer and Lake Erie railroad, an iron ore–hauling railroad, between 1929 and 1944, in eight sub-classes numbered 601–647. Calculated tractive force was 102,106 pounds-force (454.19 kN), average weight was over 500,000 pounds (230 t), and boiler pressure was 250 pounds per square inch (1.7 MPa). Eighteen were sold in 1951 to the Duluth Missabe and Iron Range Railway, another ore hauling railroad, that renumbered them 700–717. By the beginning of the 1960s all but one were sold for scrap. The exception was No. 643, which almost operated in excursion service in the late 1990s, but for its large size. It is now owned by the Age of Steam Roundhouse.

Chesapeake and Ohio[]

The early Lima-built Texas types were low-drivered, 60 to 64 inches (1,520 to 1,630 millimetres) in diameter, which did not leave enough space to fully counterweight the extremely heavy and sturdy side rods and main rods required for such a powerful locomotive's piston thrusts. That changed in 1930 on the Chesapeake and Ohio Railway (C&O), who stretched the design of an Erie Railroad high-drivered Berkshire type locomotive to produce forty of the C&O T-1, a Texas type with 69-inch (1,750-millimetre) diameter drivers that was both powerful and fast enough for the new higher-speed freight services that the railroads were introducing. All subsequent Texas types were of this higher-drivered sort.

Pennsylvania Railroad[]

The Pennsylvania Railroad (PRR) ordered few new locomotives after 1930, since electrification both consumed the railroad's resources and resulted in a supply of excess steam locomotives that eliminated any requirement for new power. It was not until the Second World War had begun, that the PRR's locomotive fleet began to appear inadequate. Although the PRR urgently needed new and modern freight power, the War Production Board prohibited working on a new design and, since there was not enough time to trial a prototype in any event, the PRR cast around for other railroads' designs that it might modify for PRR use.

It settled on the C&O’s T-1. Some modifications were made to the design for these PRR War Babies. These included PRR drop-couplers, sheet steel pilots, PRR-style cabs, large PRR tenders, Keystone number plates up front and other modifications. It still betrayed its foreign heritage by lacking the PRR trademark Belpaire firebox and by having a booster engine on the trailing truck. Altogether 125 locomotives were built between 1942 and 1944 and became the largest fleet of Texas type locomotives in existence. All were eventually sold as scrap when the Pennsylvania Railroad dieselized.

North American owners of Texas types[]

2-10-4 North American construction roster
Railroad (quantity; class name) Class Road numbers Builder Build year Notes
Atchison, Topeka and Santa Fe (37; Texas) 3800 3829 Baldwin 1919 Original as a Santa Fe 2-10-2 type, No. 3829 was used as an experimental engine and was the first 2-10-2 steam engine (tender version) to be fitted with a four-wheeled trailing truck as a replacement to the two-wheeled truck that No. 3829 was originally built with. Santa Fe No. 3829 was also the first steam locomotive (tender version) to use this 2-10-4 "Texas" type wheel arrangement for use in the United States. Scrapped 1959
5000 5000 Baldwin 1930 preserved
5001 5001–5010 Baldwin 1938 Scrapped 1959
5011 5011–5035 Baldwin 1944 5011, 5017, 5021 & 5030 preserved
Bessemer & Lake Erie (47; Texas)

18 of the B&LE's 2-10-4 locomotives

were sold to the Duluth, Missabe & Iron Range (DMIR), who retained the "Texas" class name on these locomotives

H-1 601 Baldwin 1929 Scrapped 1951
H-1a 602–610 Baldwin 1930 Scrapped 1952
H-1b 611–620 Baldwin 1936 Scrapped 1952
H-1c 621–630 ALCO 1937 Scrapped 1953
H-1d 631–635 Baldwin 1941 Scrapped 1953
H-1e 636–637 Baldwin 1942 Scrapped 1954
H-1f 638–642 Baldwin 1943 Scrapped 1954
H-1g 643–647 Baldwin 1944 643 preserved
Canadian Pacific (37; Selkirk) T1a 5900–5919 MLW 1929 Scrapped 1959
T4a 8000 CP Angus Shops 1931 Scrapped 1959
T1b 5920–5929 MLW 1938 Streamlined Scrapped 1959
T1c 5930–5935 MLW 1949 Streamlined. 5931 & 5935 preserved
Central Vermont(10; Texas) T-3-a 700–709 ALCO 1928 Scrapped 1947-1958
Chesapeake and Ohio(40; Texas) T-1 3000–3039 Lima 1930 Scrapped 1952-1953
Chicago, Burlington & Quincy(18; Colorado) M-4 6310–6321 Baldwin 1927 Scrapped 1952
6322–6327 Baldwin 1929 Scrapped 1953
Chicago Great Western(36; Texas) T-1 850–864

880–882

Lima 1930 1948 Scrapped
T-2 865–873 Baldwin 1930 1948 Scrapped
T-3 874–879 Baldwin 1930 1949 Scrapped
T-3 883–885 Lima 1931 1950 Scrapped
Kansas City Southern(10; Texas) J 900–909 Lima 1937 Scrapped 1954
Pennsylvania Railroad(125; Texas) J1 6450–6474 PRR Altoona Works 1942 Scrapped 1958
6401–6434

6475–6500

PRR Altoona Works 1943 Scrapped 1958
6435–6449

6150–6174

PRR Altoona Shops 1944 Scrapped 1959
Texas & Pacific(70; Texas) I-1 600–609 Lima 1925 Scrapped 1950-1951
I-1a 610–624 Lima 1927 610 preserved
I-1b 625–639 Lima 1928 Scrapped 1951
I-1c 640–654 Lima 1928 Scrapped 1951-1952
I-1d 655–669 Lima 1929 Scrapped 1953

Preserved Texas types in North America[]

Railroad Road number Location
AT&SF 5000 Amarillo, TX
5011 National Museum of Transportation, St. Louis, MO
5017 National Railroad Museum, Green Bay, WI
5021 California State Railroad Museum, Sacramento, CA
5030 Salvador Perez Park, Santa Fe, NM
B&LE 643 Components slowly being gathered from McKees Rocks to Sugarcreek
CP 5931 Heritage Park Historical Village, Calgary, AB
5935 Canadian Railway Museum, Delson, QC
T&P 610 Texas State Railroad, Palestine, TX

Never Built[]

Reading Railroad[]

See article: Reading Railroad No. 2200.

The Reading Railroad proposed a design for their own attempt at a 2-10-4 known to be No. 2200, which would be similar to their T1 4-8-4s but with some modifications.

Erie Railroad[]

See article: Erie Railroad 2-10-4.

The Erie Railroad proposed a design for their own attempt at a 2-10-4, which would be similar to their 2-8-4 Berkshires but with some modifications.
