Front of locomotive at left
Webb Coal Tank
Under the Whyte notation for the classification of steam locomotives, 0-6-2 represents the wheel arrangement of no leading wheels, six powered and coupled driving wheels on three axles and two trailing wheels on one axle. The type is sometimes known as a Webb or a Branchliner.
Overview[]
While some locomotives with this wheel arrangement had tenders, the majority were tank locomotives which carried their coal and water onboard.
Usage[]
Finland[]
.jpg){kind=link}
Class Vr2 at Haapamäki, Finland
Finland used two classes of 0-6-2T locomotive, the Vr2 and the Vr5.
The Vr2 class was numbered in the range from 950 to 965. Five of them are preserved in Finland, no. 950 at Joensuu, no. 951 at Tuuri, no. 953 at Haapamäki, no. 961 at Jyväskylä and no. 964 at the Veturimuseo at Toijala.
The Vr5 class was numbered in the range from 1400 to 1423. No. 1422 is preserved at Haapamäki. Template:-
Philippines[]
Borrecon, the first mainline locomotive in Philippine service.
Tank locomotives[]
There were 30 Dagupan-type locomotives built between 1889 and 1890. All were tank locomotives, weighed 32 tonnes (71,000 lb) and were run a maximum speed of 33 km/h (21 mph). These were divided into two subclasses: the A subclass built by Neilson and Company and the B subclass built by Dübs and Company.
Another 25 locomotives of the C class were built in 1906 by the North British Locomotive Company (which succeeded Dübs) and were regarded as distinct from the Dagupan class.
During the Manila Railroad era, they were replaced in mainline service by American tender locomotives such as the Porter 4-6-0 built in 1919 or the 4-6-2 Pacifics built by Baldwin Locomotive Works between 1926 and 1929.
A B-class locomotive named Urdaneta (No. 17) remained in shunting service until 1963 and is one of only three steam locomotives preserved by the PNR. After its retirement, Urdaneta was first displayed in the Tutuban station. It is now on static display in Dagupan, Pangasinan. The rest were scrapped between 1917 and 1940.
Tender locomotives[]
Ma-Ao Sugar Central of Negros Occidental had locomotive No. 8, a rebuild of a saddle tank locomotive built in 1920. It was last seen in January 1982 and was presumed to have been scrapped not long after due to the mill being in a decrepit state during those years.
South Africa[]
Tender locomotives[]
Between 1890 and 1898, four 0-6-2 tender locomotives were placed in service by the Cape Copper Company on its 2 ft 6 in (762 mm) gauge Namaqualand Railway between Port Nolloth and O'okiep in the Cape Colony. Acquired to meet the traffic needs of the upper mountainous section of the line, they became known as the Mountain type. The first three of these locomotives were later described as the Clara Class, while the fourth was included in this Class by some and included in the subsequent Scotia Class by others.
Between 1900 and 1905, six more Mountain type 0-6-2 tender locomotives were placed in service by the Cape Copper Company. Later described as the Scotia Class, they were similar to the earlier Clara Class locomotives, but with longer boilers, longer fireboxes and larger firegrates.
Tank locomotive[]
In 1892 and 1893, the Nederlandsche-Zuid-Afrikaansche Spoorweg-Maatschappij of the Zuid-Afrikaansche Republiek (Transvaal Republic) placed twenty 3 ft 6 in (1,067 mm) 0-6-2T locomotives in mainline service. Since the railway classified its locomotives according to their weight, these locomotives were known as the 40 Tonners.
South West Africa[]
Three classes of 600 mm (1 ft 11+5⁄8 in) gauge 0-6-2 locomotives were supplied to German South West Africa between 1904 and 1908.
Jung no. 9 plinthed in Tsumeb
- In 1904, the Otavi Mining and Railway Company acquired fifteen tank locomotives from Arnold Jung Lokomotivfabrik in Germany. Two of them survived to be taken onto the South African Railways (SAR) roster in 1922. They were never classified and were referred to as the Jung locomotives.
- Ten Class Ha tank locomotives were supplied by Henschel & Son in 1904. One survived the First World War into the SAR era.
- Fifteen Class Hb tank locomotives were supplied by Henschel between 1905 and 1908. The last six locomotives were delivered as tank-and-tender engines, equipped with optional coal and water tenders. Six of them survived into the SAR era.
United Kingdom[]
In the United Kingdom, the type was only ever used for tank engines and was first used by William Barton Wright of the Lancashire and Yorkshire Railway in 1880.
The arrangement was soon afterwards used by Francis Webb of the London and North Western Railway on his famous Coal Tanks of 1881–1897. Many locomotives of this type were also used to haul coal in the South Wales Valleys by the Great Western Railway and its predecessors.
LB&SCR E5 class of 1902
Several railways around London later used the type for heavy suburban passenger trains, notably the following:
- The London, Brighton and South Coast Railway (LB&SCR) with the E3, E4, E5 and E6 classes designed by R. J. Billinton between 1894 and 1904.
- The Great Eastern Railway (GER) Class L77 of 1914, designed by Alfred John Hill.
- The Great Northern Railway (GNR) Class N1 designed by Ivatt, and Class N2, designed by Nigel Gresley between 1906 and 1921.
Gresley later improved upon the GER class with various versions of his London and North Eastern Railway (LNER) N7 class, built between 1925 and 1928.
United States[]

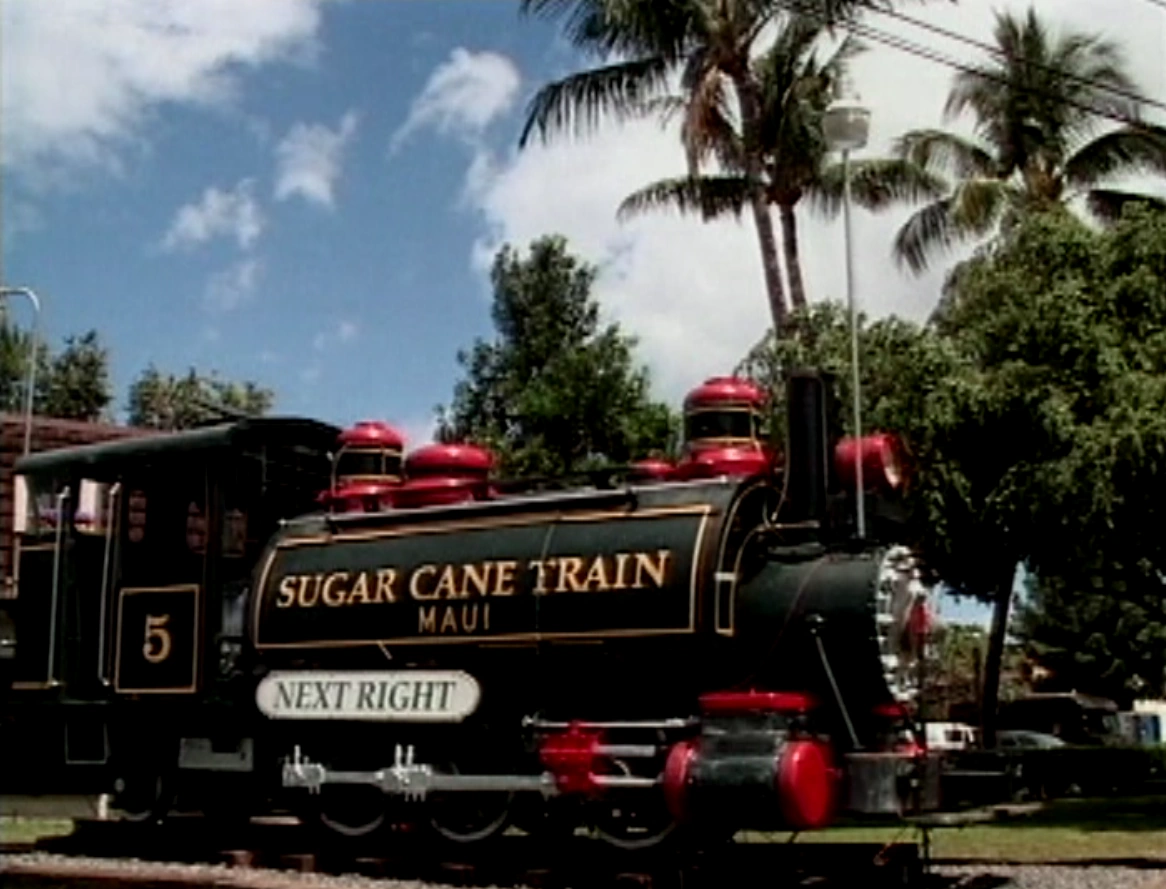

Oahu Sugar No. 5 is on display outside the main station at the Lahaina, Kaanapali and Pacific Railroad.
In the United States, 0-6-2 locomotives were largely 2-6-0 type locomotives which had been rebuilt with a larger firebox and therefore required greater weight distribution near their backs. The leading wheels were therefore relocated to the rear as trailing wheels. Nearly all of these locomotives were assigned to switch locomotive workings or used on branch lines.
Many 0-6-2 types were found in the state of Hawaii on sugar cane railroads across the state. Most notable were the 0-6-2T’s of the Mcbryde Sugar Company of Kauai, 3 of which survive and are currently the only original steam engines operating in Hawaii.
